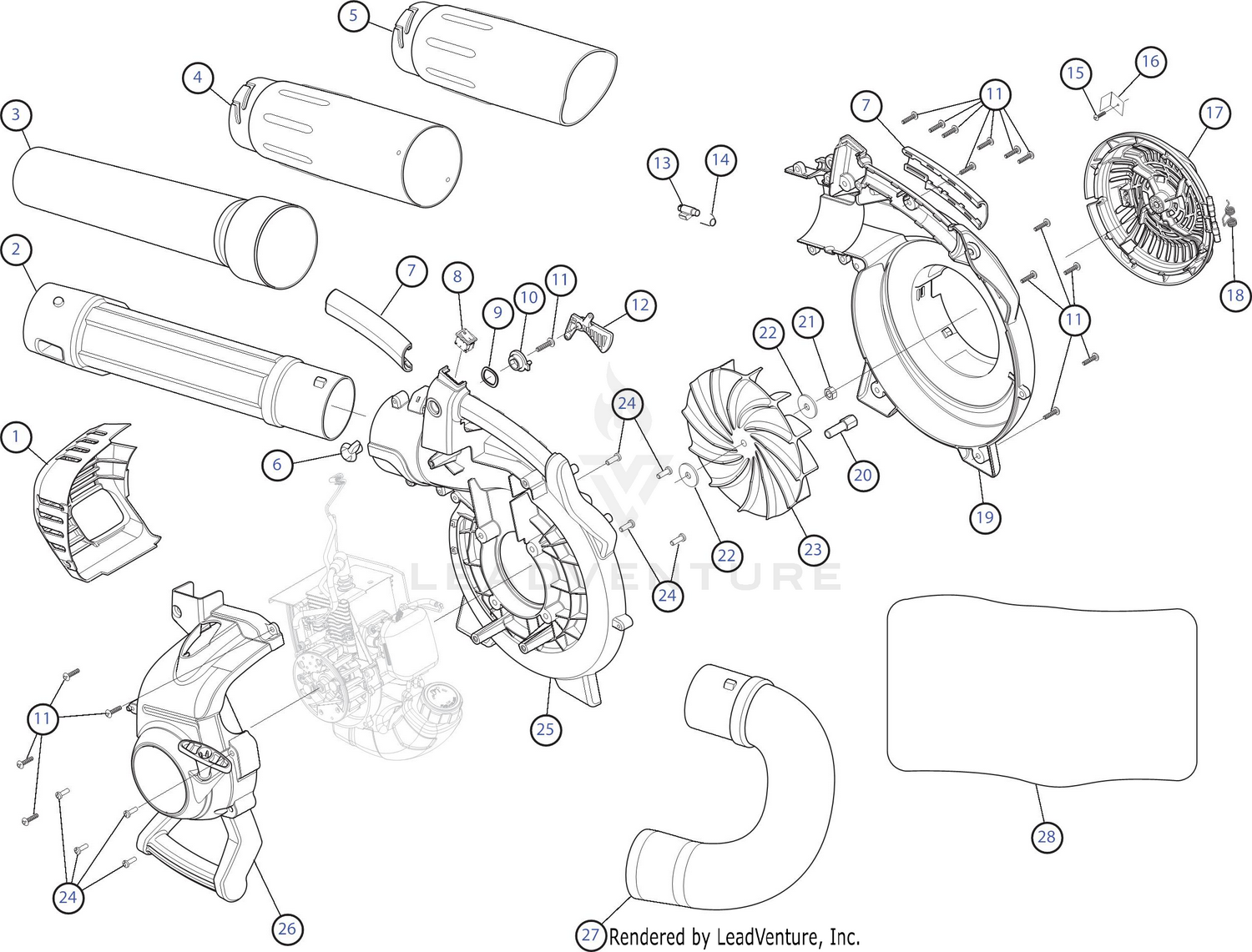

General Assembly — Parts Catalog

Ref	Part Number	Description
1	753-06694	MUFFLER COVER Price: $3.99
2	753-05936	Upper Tube Price: $16.85
3	753-05937	Lower Tube Price: $16.65
4	753-06660	Upper Vac Tube Price: $12.22
5	791-180467	Lower Vac Tube Price: $33.37
6	753-05932	Outer Trigger Lock Price: $2.48
7	753-05919	Handle Grips Price: $5.48
8	791-182405	Switch Price: $9.29
9	736-04353	Wave Washer, .65 ID x .855 x .010 This part replaces 753-05925. Price: $5.52
10	753-05924	Inner Trigger Lock Price: $2.45
11	710-04194	Screw Price: $3.66
12	753-05930	THROTTLE TRIGGER Price: $1.49
13	753-05926	Latch Tube Price: $2.45
14	753-05939	Latch Spring Price: $2.45
15	1755	Screw Price: $3.37
16	753-06696	Door Lock Price: $2.44
17	753-06678	INTAKE COVER Price: $7.49
18	753-05918	Spring Price: $2.45
19	753-06679	Impeller Housing Price: $18.41
20	753-06700	Adapter Price: $4.74
21	912-0237	Nut Price: $4.37
22	753-05928	Washer Price: $2.62
23	753-05929	Impeller Price: $11.59
24	1964	SCREW:10-32X.5 This part replaces 791-181862. Price: $3.89
25	753-06693	Impeller Housing Price: $15.17
26	753-06695	Engine Cover Assembly (Incl. 11 & 24) Price: $32.34
27	753-06658	Elbow Price: $12.51
