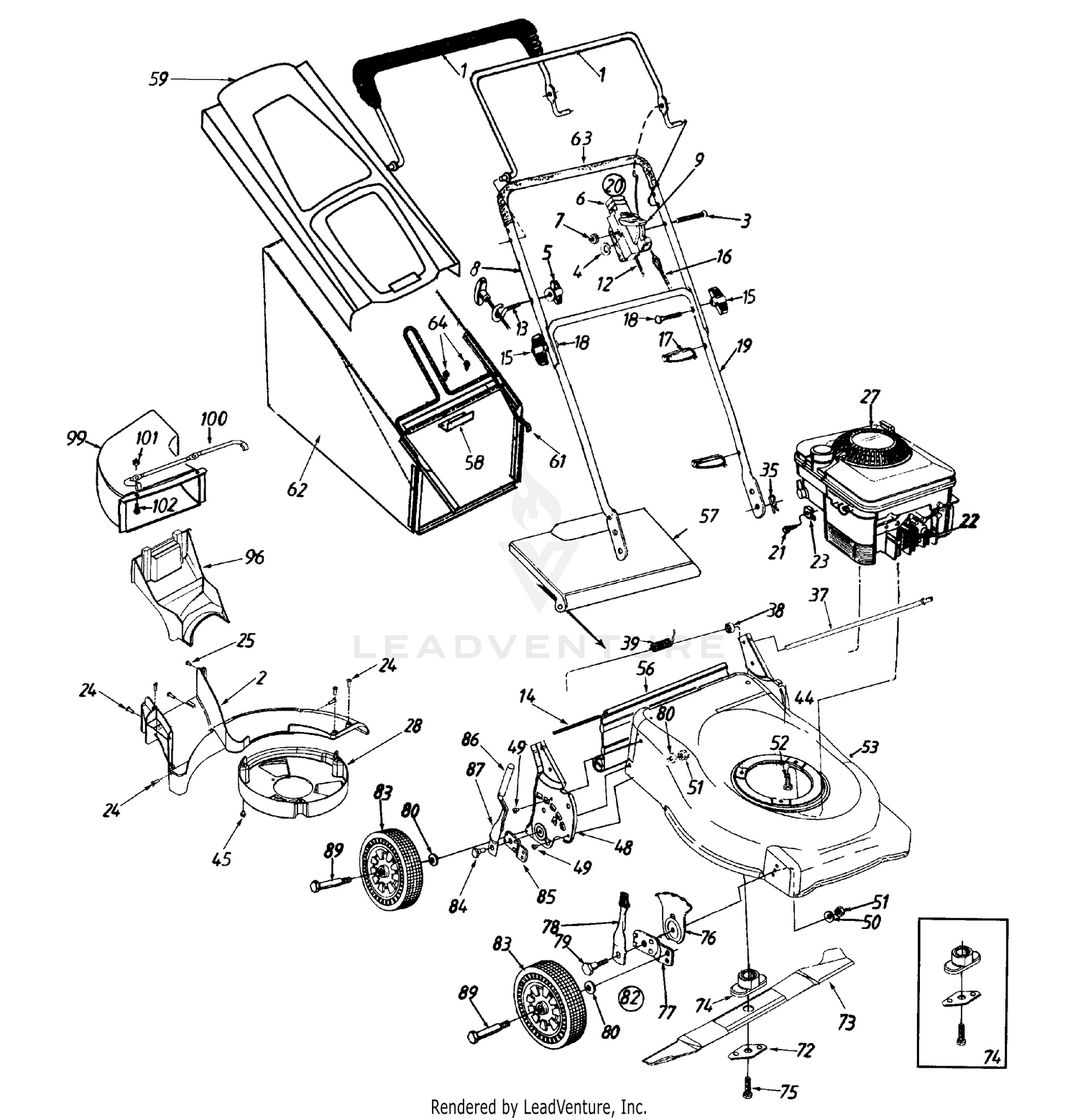

| Ref | Part Number | Description |
|---|
| 1 |
747-0824B-0637 |
Std. Control Handle This part replaces 747-0824. Price: $57.85 |
| 2 |
731-1639 |
BAFFLE RR 21" Not Available Price: |
| 3 |
710-0605 |
Oval C-Sunk Mach. - Scr. Price: $3.85 |
| 4 |
936-0501 |
Curved Spring Wash. .66" I.D. This part replaces 736-0501. Price: $5.99 |
| 5 |
720-0279 |
Handle Knob 1/4-20 Thd. Price: $3.93 |
| 6 |
946-0875 |
Throttle Body This part replaces 646-0875. Price: $8.64 |
| 7 |
712-0324 |
Hex L-Nut 1/4-20 Thd. Price: $3.38 |
| 8 |
749-0438D-0637 |
UPPER HANDLE Not Available This part replaces 749-0438B. Price: |
| 9 |
946-0876 |
Throttle Lever This part replaces 746-0876. Price: $7.50 |
| 13 |
710-1205 |
Rope Guide Price: $3.53 |
| 14 |
732P0700 |
TRAILSHIELD WIRE This part replaces 732-0700. Price: $3.85 |
| 15 |
920-0276 |
Hand Knob This part replaces 720-0276. Price: $3.23 |
| 17 |
725-0157 |
Cable Tie This part replaces 726-0240. Price: $3.46 |
| 18 |
710-1174 |
Curved Hd. Bolt 5/16-18 x 2" L Price: $6.28 |
| 19 |
749-0907B |
Lower Handle This part replaces 749-0907. Price: $43.95 |
| 22 |
735-0639 |
INSULATOR-SPARK PLUG Not Available Price: |
| 24 |
710-1220 |
Scr, HL 12-14:.750 Price: $3.96 |
| 25 |
710-0351 |
Scr. B 10-16:.500 Pan Hd. Wash Price: $3.90 |
| 27 |
N/A |
Engine |
| 28 |
731-1714A |
COVER BELT Not Available This part replaces 731-1714. Price: |
| 35 |
714-0104 |
Int. Cotter Pin 5/16" Dia. Price: $3.90 |
| 37 |
747-00922 |
Pivot Rod Price: Call Us |
| 38 |
950-1068 |
SHOULDER SPACER Not Available This part replaces 750-1068. Price: |
| 39 |
932-0809 |
Torsion Spring This part replaces 732-0809. Price: $16.24 |
| 44 |
N/A |
UNKNOWN |
| 45 |
710-0653 |
Scr. TT 1/4-20:.375 HxIndWash Price: $3.78 |
| 48 |
782-3020 |
BRACKET-HDLE (RH) GA Not Available Price: |
| 49 |
710-1348 |
Scr. AB 1/4-14:.500 PanTrxl Price: $5.94 |
| 50 |
936-0356 |
BELL WASHER Not Available This part replaces 736-0356. Price: |
| 51 |
712-0798 |
Hex Nut 3/8-16 Thd. Price: $3.86 |
| 52 |
710-0654A |
Hex L-Wash. Hd. Scr. 3/8-16 x 1" Lg. Price: $3.75 |
| 53 |
682-0076 |
DECK ASSEMBLY Not Available Price: |
| 56 |
731-04998 |
Rear Trailing Shield This part replaces 731-1236. Price: $27.86 |
| 57 |
782-7599B-0637 |
GRASSBAG DOOR Not Available This part replaces 782-7599. Price: |
| 58 |
782-9050-0637 |
MOUNTING BRACKET Not Available This part replaces 782-9050. Price: |
| 59 |
731-1882 |
HARDTOP BAG COVER Not Available Price: |
| 61 |
747-0919-0637 |
GRASSCATCHER FRAME This part replaces 747-0919. Price: $103.50 |
| 62 |
664-0080 |
GRASSBAG - BLACK Not Available Price: |
| 63 |
720-0295 |
Foam Grip Price: $29.03 |
| 64 |
710-0896 |
Scr. 1/4-20:.625 Hxlnd Wash Price: $3.86 |
| 72 |
736-0524B-1 |
BLADE BELL SUPPORT This part replaces 736-0524A. Price: $5.34 |
| 74 |
753-0609 |
Blade Adapter Kit Price: $37.92 |
| 75 |
710-1257 |
Hex Bolt 3/8 - 24 x 1.5" Lg. Price: $7.02 |
| 76 |
787-01290A |
Height Adjustment Plate This part replaces 15261A. Price: $10.58 |
| 77 |
15262B |
Pivot Bar Price: $13.59 |
| 78 |
94832 |
Front Spring Lever This part replaces 14832. Price: $9.48 |
| 79 |
738-0507B |
Shld. Bolt .50" Dia. x .357" Price: $3.86 |
| 80 |
736-0105 |
Bell-Wash. .38" I.D. x .88" O.D. Price: $3.96 |
| 82 |
753-06761 |
Height Adj. Ass'y. Comp. (R.H.) This part replaces 14578. Price: $57.55 |
| 83 |
N/A |
Wheel Ass'y. Comp. |
| 84 |
738-0507B |
Scr. Shldr 500 Dia. x .434 Lg. Price: $3.86 |
| 85 |
15262B |
Pivot Bar, Rear Price: $13.59 |
| 86 |
720-0230 |
Foam Grip Price: $6.49 |
| 87 |
732-0805 |
SPRING LEVER Not Available Price: |
| 89 |
738-0102 |
Axle Bolt Price: $9.22 |
| 96 |
931-1685 |
MULCH PLUG Not Available This part replaces 731-1685. Price: |
| 99 |
931-1461 |
CHUTE DEFLECTOR Not Available This part replaces 731-1461. Price: |
| 100 |
782-0958 |
Chute Mounting Rod Price: Call Us |
| 101 |
712-0324 |
Hex L-Nut 1/4-20 Thd. Price: $3.38 |
| 102 |
710-0286 |
Mach. Scr. 1/4-20 x .5" Lg. Price: $3.86 |
