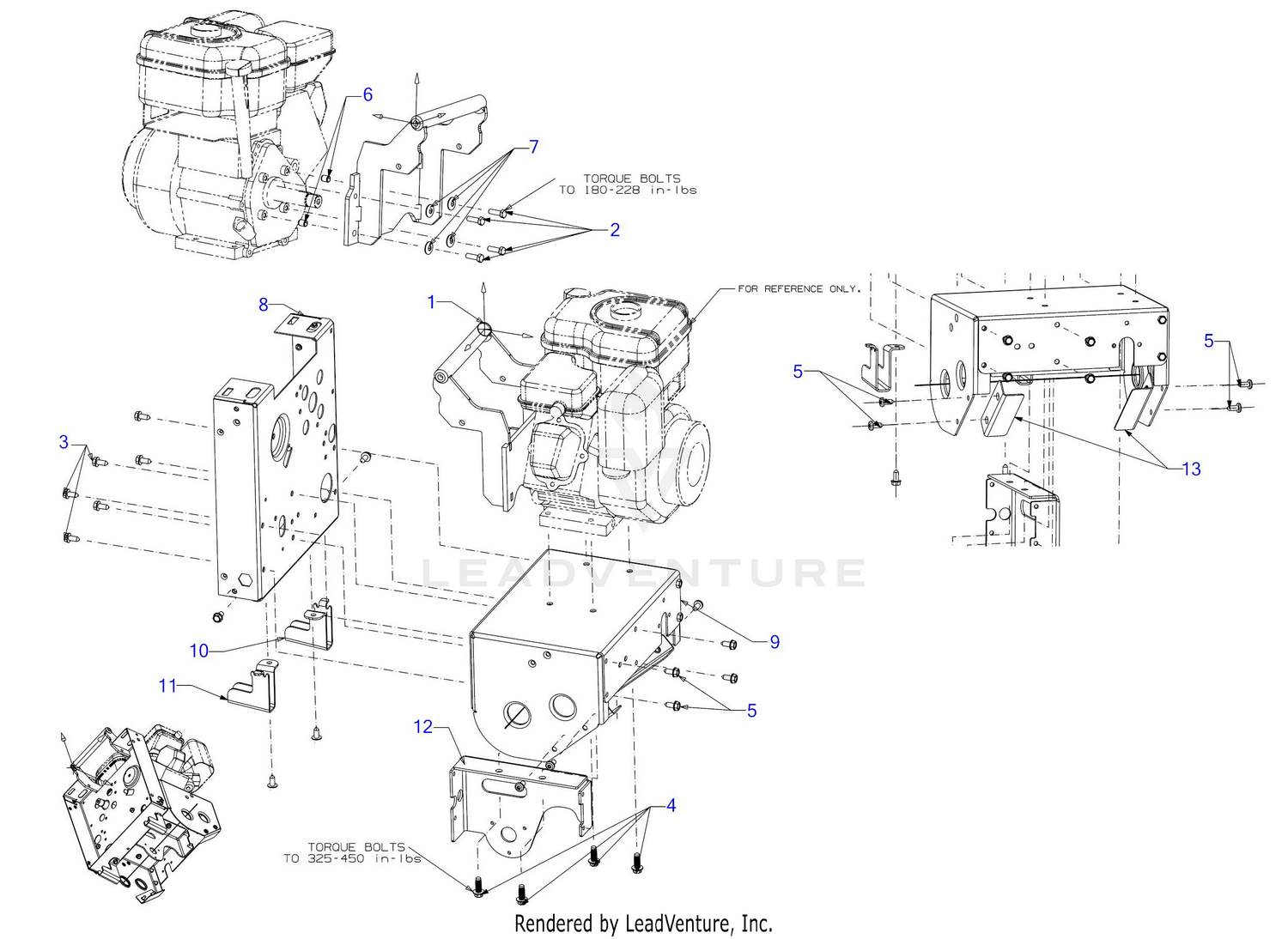

Frame
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 687-05116-0637 | UPPER CATCHER (POWDER BLACK) Not Available Price: |
| 2 | 710-0117A | HEX HEAD CAP SCREW 5/16-24 x 1.00 GR5 Price: $4.64 |
| 3 | 710-04484 | SCREW 5/16-18 x .750 Price: $3.19 |
| 4 | 710-04683C | SCREW 3/8-16 x 1 Price: $5.67 |
| 5 | 710-05424 | SCREW 5/16-18 x .750 Price: $2.94 |
| 6 | 715-05037 | DOWEL Not Available Price: |
| 7 | 736-0242 | BELL WASHER .337 X.867 x .057 Price: $3.75 |
| 8 | 787-03230B-0638 | DRIVE HOUSING FRAME (MTD RED) This part replaces 787-03230-0638. Price: $58.94 |
| 9 | 787-03258A-0638 | LOWER FRAME (MTD RED) Not Available Price: |
| 10 | 787-03354A-0637 | BRACKET-TIP (RH) Price: $22.11 |
| 11 | 787-03356A-0637 | BRACKET-TIP (LH) Price: $22.11 |
| 12 | 787-03360-0637 | SUPPORT BRACKET SHAFT Not Available Price: |
