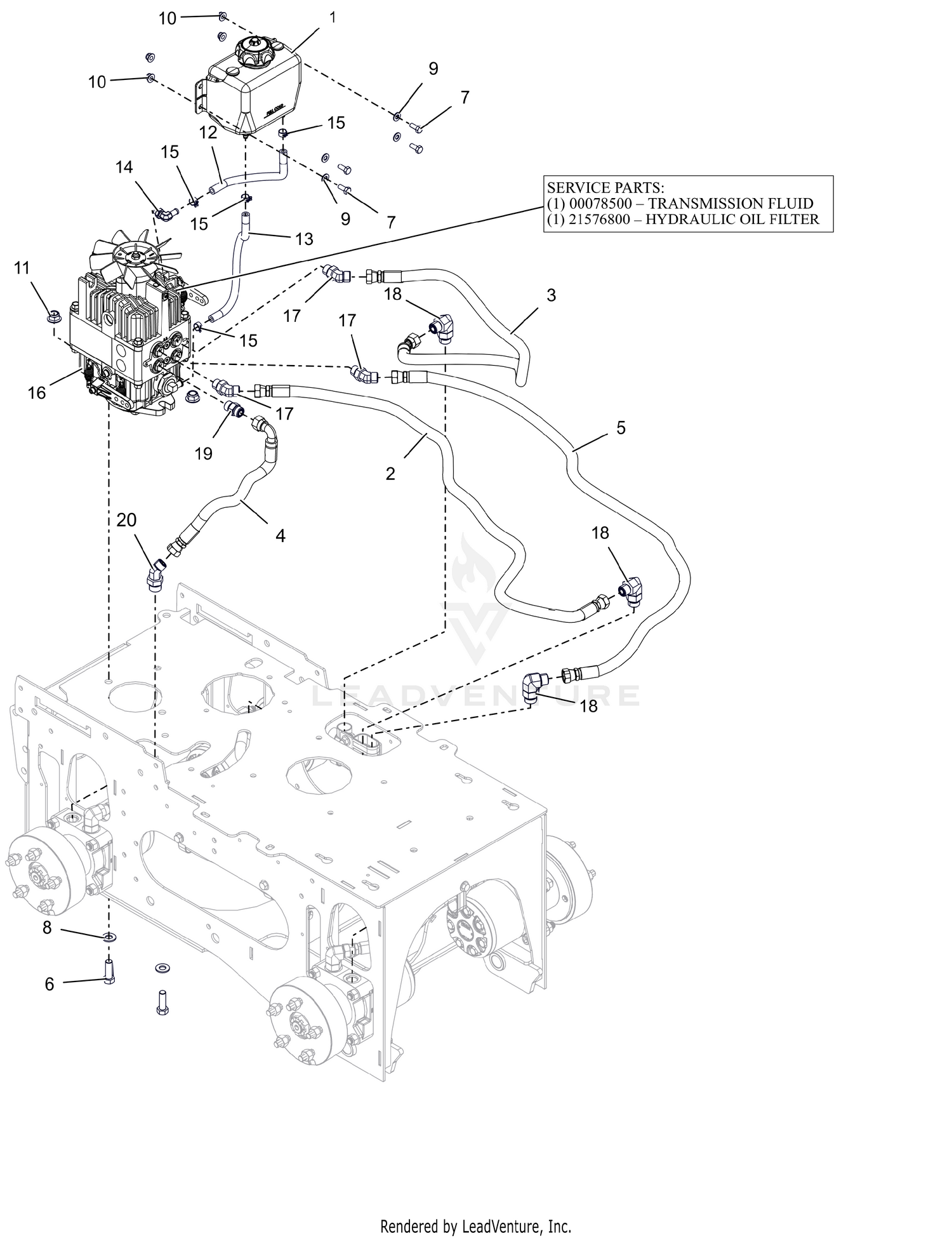

| Ref | Part Number | Description |
|---|
| 1 |
09445700 |
TANK- OIL RESERVOIR Price: $61.45 |
| 2 |
09455800 |
ASM-HOSE LF MTR A/B PORT Price: $93.95 |
| 3 |
09456700 |
ASM- HOSE LR MTR B/PUMP A Price: $103.95 |
| 4 |
09457100 |
ASM- HOSE PUMP B/RR MTR A LOW Price: $103.95 |
| 5 |
09464200 |
ASM- HOSE RF MTR B/PUMP LOWER Price: $93.95 |
| 6 |
05901631 |
BLT,HEX .50-13X1.50 G5 ZCC Price: $3.95 |
| 7 |
05901704 |
BLT,HEX .31-18X.75 G5 ZCC Price: $1.45 |
| 8 |
06401015 |
WSHR,FLT .531X1.062X.095 ZCC Price: $0.95 |
| 9 |
06401017 |
WSHR,FLT .344X.688X.065 ZCC Price: $0.45 |
| 10 |
06500809 |
NUT,LK-NYL-FLG .31-18 G5ZC120 Price: $1.45 |
| 11 |
06500810 |
NUT,NYL-FLG .50-13 GF ZCC Price: $1.45 |
| 12 |
09409400 |
HOSE- OIL Price: $10.45 |
| 13 |
09447100 |
HOSE- OIL Price: $10.45 |
| 14 |
09454900 |
FITTING- HYD- SWIVEL ELBOW Price: $93.95 |
| 15 |
09455000 |
CLAMP-HOSE 9/16" Price: $0.95 |
| 16 |
09455200 |
PUMP- HYDRO Price: $1,124.95 |
| 17 |
09464500 |
FITTING- HYD ELB 45-8-8 V5OLO Price: $20.95 |
| 18 |
09465100 |
FITTING- HYD ELB 90-10-8 C5OLO Price: $31.45 |
| 19 |
09465600 |
FITTING- ADAPTOR 8-8 F5OLO-S Price: $7.45 |
