| Ref | Part Number | Description |
|---|
| 1 |
3-8455 |
DISCONTINUED Price: Call Us |
| 2 |
04040-15 |
Flatwasher, 5/16 (.375 x .875 x .083) Price: Call Us |
| 2 |
2-2729 |
DISCONTINUED Price: Call Us |
| 3 |
04001-09 |
Capscrew, 5/16-18 x 1" Hex Head Price: Call Us |
| 3 |
3-1506 |
BUSHING Price: $2.42 |
| 4 |
32100-12 |
DISCONTINUED This part replaces 32100-10. Price: Call Us |
| 4 |
483792 |
Cap, Fuel Tank This part replaces 482547. Price: Call Us |
| 5 |
3258-61 |
SCREW Price: $1.29 |
| 6 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 6 |
482571 |
Bushing This part replaces 48309. Price: Call Us |
| 7 |
483747 |
Ball Valve w/Screen This part replaces 48308. Price: Call Us |
| 8 |
3253-17 |
WASHER-LOCK Price: $0.25 |
| 8 |
48059-01 |
Clamp, Fuel Hose Price: Call Us |
| 9 |
3-2964-01 |
COVER-DRIVE, REEL This part replaces 3-2964. Price: $280.42 |
| 9 |
483617 |
Fuel Hose, 1/4" I.D. Non-Perm (791DFI Fuel Return) This part replaces 48058. Price: Call Us |
| 10 |
3-2052 |
Gasket Price: Call Us |
| 10 |
48028-05 |
Cable Tie Price: Call Us |
| 11 |
04003-11 |
Carriage Bolt, 3/8-16 X 1-1/4" Price: Call Us |
| 11 |
237-69 |
O-RING Price: $5.72 |
| 12 |
3256-21 |
WASHER-FLAT Price: $0.25 |
| 12 |
424002 |
Brace Price: Call Us |
| 13 |
04043-04 |
Flat Washer .391 x .938 x .105 Price: Call Us |
| 13 |
3274-26 |
SCREW-HSH Price: $1.70 |
| 14 |
04021-09 |
Nut, 3/8-16 Elastic Stop Price: Call Us |
| 14 |
329-3 |
SCREW-HH Price: $0.22 |
| 15 |
04021-08 |
Nut, 1/4-20 Elastic Stop Price: Call Us |
| 15 |
3296-33 |
NUT-LOCK, NI Price: $2.39 |
| 16 |
3-3433 |
DISCONTINUED Price: Call Us |
| 16 |

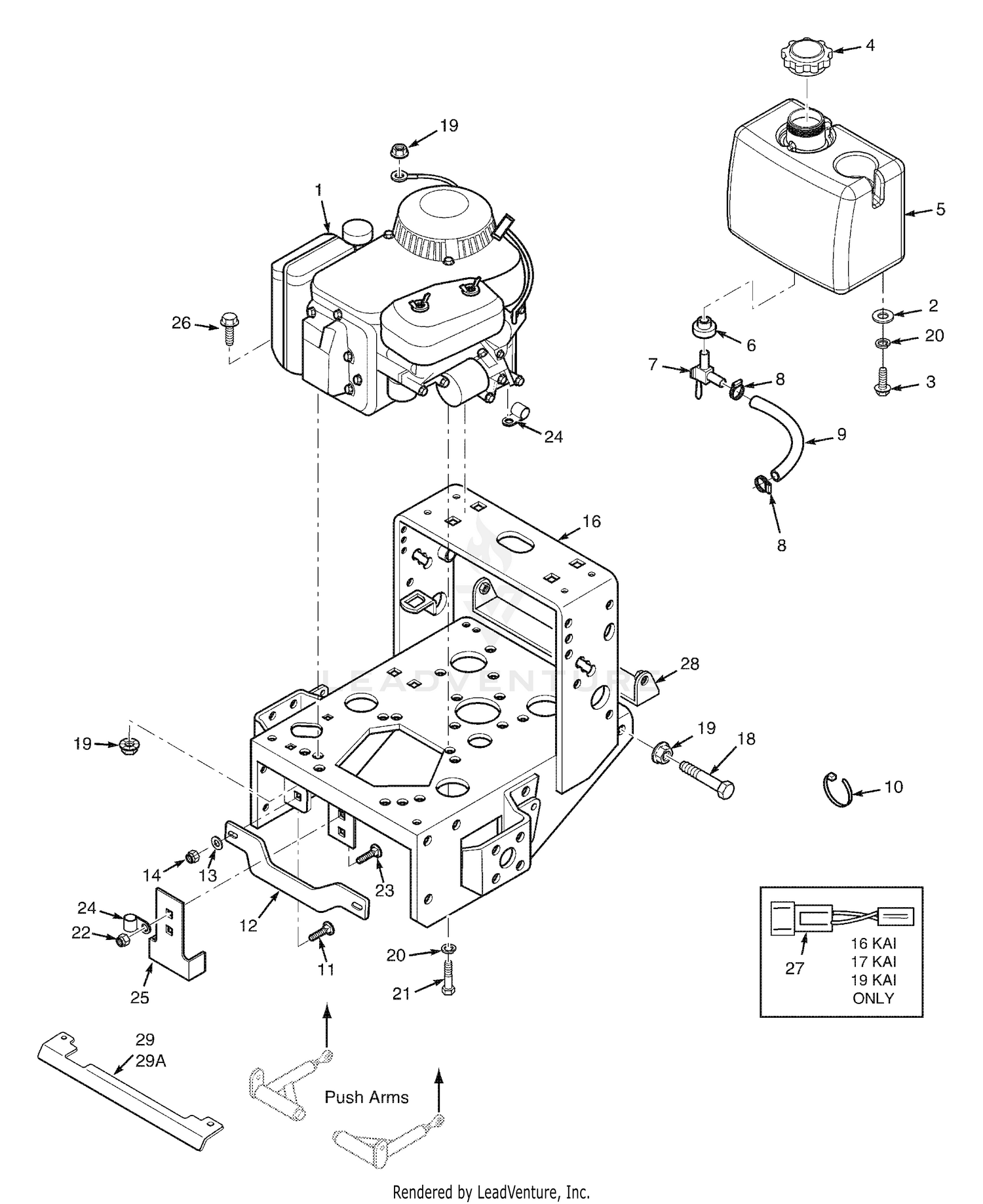

461745 |
Engine Deck, 16" Wide, w/decals Price: Call Us |
| 17 |
04003-09 |
Bolt, 1/4-20 x 1-1/4" Carriage Price: Call Us |
| 17 |
3-0554 |
SHOE-IDLER, CHAIN Price: $40.43 |
| 18 |
04001-17 |
Bolt, 5/16-18 x 2" Hex Head Price: Call Us |
| 18 |
3-5792 |
WASHER Price: $5.59 |
| 19 |
04019-03 |
Nut, 5/16-18 Serr. Flange Price: Call Us |
| 19 |
3-0463 |
IDLER ARM-CHAIN Price: $19.22 |
| 20 |
04030-03 |
Lock Washer 5/16" Price: Call Us |
| 20 |
3-3434 |
CHAIN-ROLLER, REEL DRIVE Price: $56.45 |
| 21 |
04017-19 |
Bolt, 5/16-18 x 1" Serrated Flange Hex Head Price: Call Us |
| 21 |
3296-3 |
NUT-LOCK Price: $0.54 |
| 22 |
04021-10 |
Nut, 5/16-18 Elastic Stop Price: Call Us |
| 22 |
5-1393 |
SHAFT-REEL Price: $156.39 |
| 23 |
04003-04 |
Carriage Bolt, 5/16-18 x 1" Price: Call Us |
| 23 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 24 |
302-14 |
VENT Price: $8.03 |
| 24 |
48030-09 |
Clamp Price: Call Us |
| 25 |
3245-1 |
SCREW-SET, HSH Price: $0.54 |
| 25 |
421370 |
Clutch Bracket Price: Call Us |
| 26 |
04017-19 |
Cap Scrw, 5/16-18 x 1.50" Sr. Flg Price: Call Us |
| 26 |
3-5786-01 |
BRACKET-REEL, RH This part replaces 3-5786. Price: $554.76 |
| 27 |
3-0566 |
WASHER-CONCAVE Price: $24.97 |
| 27 |
481717 |
Wire Harness Adapter Price: Call Us |
| 28 |
3-0565 |
WASHER-CONVEX Price: $8.35 |
| 28 |
45418 |
Pulley Guard, 16" Frame Price: Call Us |
| 29 |
285-17 |
PLUG-PIPE This part replaces 285-10. Price: $2.59 |
| 30 |
5-1387 |
DISCONTINUED X-REF Price: Call Us |
| 31 |
251-205 |
BEARING-BALL Price: $40.83 |
| 32 |
3-2057-01 |
GRASS SHIELD ASM This part replaces 3-2057. Price: $108.12 |
| 33 |
3296-13 |
NUT-LOCK, NI Price: $0.34 |
| 34 |
32120-42 |
RING-RETAINING Price: $0.81 |
| 35 |
251-6 |
BEARING-BALL Price: $11.39 |
| 36 |
253-59 |
SEAL-OIL Price: $21.77 |
| 37 |
3-2804 |
KEY-WOODRUFF Price: $8.05 |
| 38 |
3296-13 |
NUT-LOCK, NI Price: $0.34 |
| 39 |
254-86 |
LOCKNUT Price: $29.03 |
| 40 |
3-5797 |
SPACER Price: $5.50 |
| 41 |
99-4268 |
SEAL-OIL This part replaces 253-92. Price: $14.99 |
| 42 |
3-5785 |
DISCONTINUED Price: Call Us |
| 43 |
3245-7 |
SCREW-SET Price: $0.34 |
| 44 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 45 |
3217-9 |
NUT-HH Price: $0.37 |
| 46 |
329-13 |
SCREW-HH Price: $0.54 |
| 47 |
3-5784 |
DISCONTINUED Price: Call Us |
| 48 |
3296-45 |
NUT-HEX Price: $3.79 |
| 49 |
3-5787 |
SPRING-COMPRESSION Price: $13.30 |
| 50 |
3-5793 |
SCREW-ADJUSTMENT, REEL Price: $61.98 |
| 51 |
3290-141 |
SCREW-HSFH Price: $0.75 |
| 52 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 53 |
32121-25 |
PIN-ROLL Price: $0.61 |
| 54 |
2-0039 |
UNIVERSAL DRIVER ASM Price: $107.95 |
| 55 |
32120-69 |
RING-SNAP Price: $2.78 |
| 56 |
3-1852 |
PAD Price: $4.64 |
| 57 |
3-0584-01 |
UNIVERSAL SHAFT ASM This part replaces 3-0584. Price: $185.85 |
| 58 |
3-5802 |
SPROCKET-REEL Price: $175.87 |
| 59 |
32151-13 |
RING-RETAINING Price: $4.39 |
| 60 |
5-1384 |
HOUSING-BEARING Price: $84.20 |
| 61 |
254-67 |
CUP-BEARING, ROLLER Price: $14.53 |
| 62 |
4-2219 |
REEL ASM This part replaces 5-1396. Price: $891.26 |
| 63 |
3274-29 |
SCREW-HSFH Price: $11.70 |
| 64 |
237-68 |
O-RING Price: $3.22 |
| 65 |
3-6524-01 |
BRACKET-REEL This part replaces 3-6524. Price: $319.55 |
| 66 |
321-8 |
SCREW-HH Price: $0.34 |
| 67 |
119-4151 |
SCREW-BEDKNIFE This part replaces 3-6462. Price: $0.41 |
| 68 |
88-8990 |
BEDKNIFE-MACHINED This part replaces 3-5794. Price: $60.45 |
| 69 |
3-0601 |
GUARD-REEL Price: $795.00 |
| 70 |
3258-2 |
SCREW Price: $0.40 |
| 71 |
3-0988 |
BAIL-LIFT Price: $44.24 |
| 72 |
3-4981-01 |
WEIGHT This part replaces 3-4981. Price: $35.96 |
| 73 |
3-5783 |
DISCONTINUED Price: Call Us |
| 74 |
5-1422 |
SHAFT-ROLLER, REAR Price: $52.52 |
| 75 |
5-1383 |
DISCONTINUED Price: Call Us |
| 76 |
32151-12 |
RING-RETAINING Price: $1.36 |
| 77 |
253-120 |
SEAL-OIL Price: $5.70 |
| 78 |
253-118 |
SEAL-OIL Price: $18.29 |
| 79 |
3-3964 |
DISCONTINUED Price: Call Us |
| 80 |
329-20 |
DISCONTINUED Price: Call Us |
| 81 |
3-2551 |
Chain-Reel Lift Price: Call Us |
| 82 |
3-3428 |
WASHER Price: $6.62 |
| 83 |
3254-6 |
WASHER-LOCK, INTERNAL Price: $0.31 |
| 84 |
5-1383 |
DISCONTINUED Price: Call Us |
| 85 |
3-3554 |
NUT-SPECIAL Price: $9.91 |
| 86 |
95-1826 |
BOLT-SPECIAL This part replaces 3-3553. Price: $10.86 |
| 87 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 88 |
237-47 |
DISCONTINUED Price: Call Us |
| 89 |
94-2958 |
STUD/BALL This part replaces 2411-7. Price: $6.70 |
| 90 |
254-68 |
CONE-BEARING, ROLLER Price: $30.37 |
