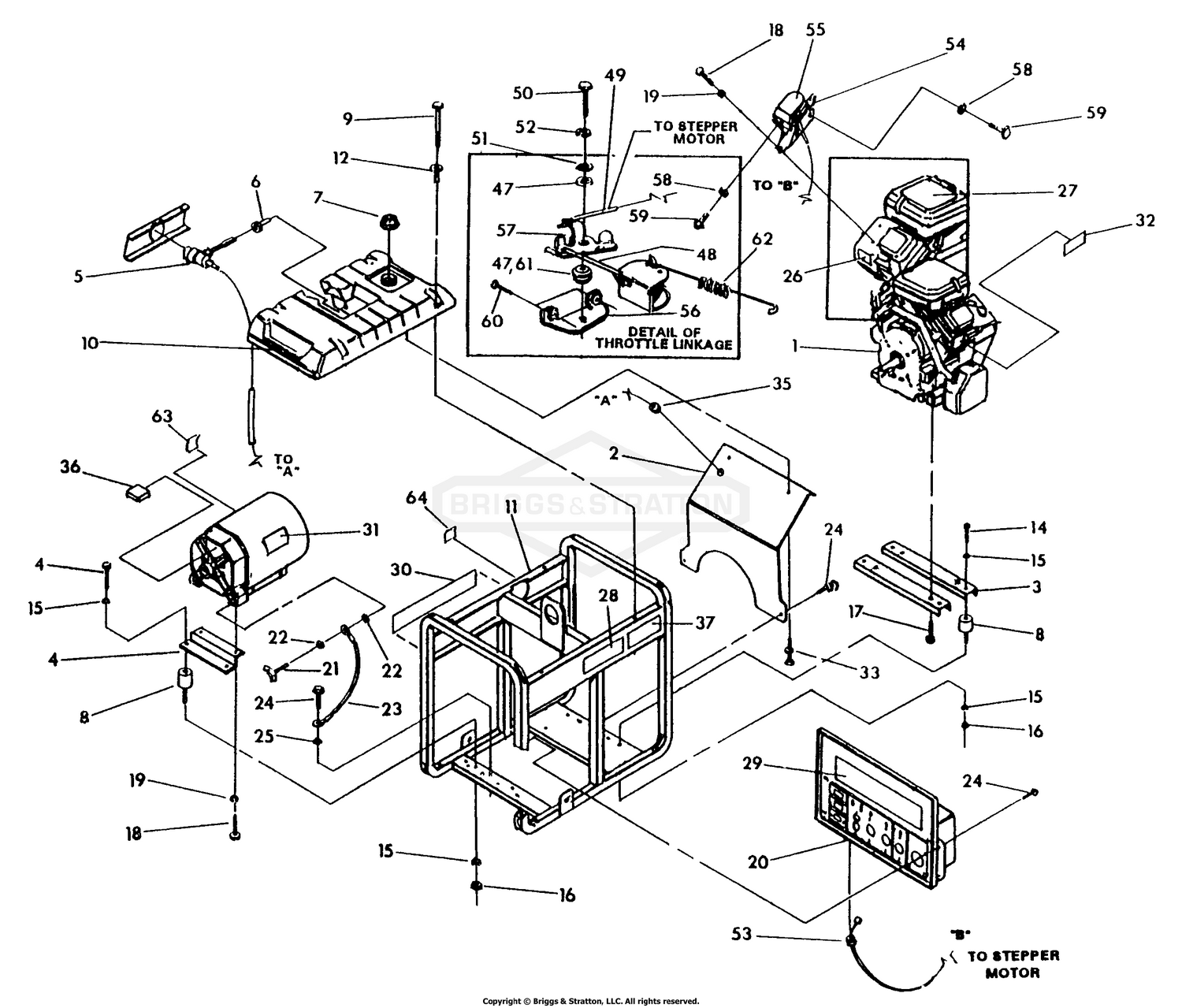

| Ref | Part Number | Description |
|---|
| 2 |
92352 |
Heat Shield Price: Call Us |
| 3 |
77304 |
Engine Support Price: Call Us |
| 4 |
78512GS |
SPPRT, ALT This part replaces 78512. Price: Call Us |
| 5 |
192980GS |
Kit, Valve This part replaces 80270. Price: $16.43 |
| 6 |
192980GS |
Kit, Valve This part replaces 78299. Price: $16.43 |
| 7 |
846987 |
CAP, Fuel Tank This part replaces 90878. Price: $17.57 |
| 8 |
35097GS |
MNT, VBRTN, 30 DURO This part replaces 35097. Price: $15.30 |
| 9 |
78831BGS |
HHMS, M6-1.0 x 60 (BLACK) This part replaces 78831B. Price: $1.60 |
| 10 |
93615GS |
ASSY, TANK, FUEL, TEST, 5 GAL This part replaces 93615. Price: $155.05 |
| 11 |
92558GS |
CRDL, VTWIN This part replaces 92558. Price: $644.00 |
| 12 |
83465GS |
GROMMET, TANK This part replaces 83465. Price: $3.39 |
| 14 |
84010756 |
WHEEL ASSEMBLY This part replaces 23152. Price: $405.07 |
| 15 |
703454 |
LOCKWASHER, SPLIT 3/8 This part replaces 22237. Price: $2.95 |
| 16 |
5022241 |
DECAL, ProCut Z Text This part replaces 22241. Price: Call Us |
| 17 |
2828635SM |
SCREW-HEX WSHR HD TAP This part replaces 75246. Price: $4.26 |
| 18 |
703988 |
CAPSCREW M8-1.25X16 This part replaces 39253. Price: $2.86 |
| 19 |
22129GS |
WASHER, Lock This part replaces 22129. Price: $2.61 |
| 20 |
95940GS |
PNL, CNTRL, MC8000, I/C This part replaces 95940. Price: $477.80 |
| 21 |
86494GS |
SCREW, M6-1.0 x 16 LG. WING This part replaces 86494. Price: $2.51 |
| 23 |
195373GS |
WIRE, Ground This part replaces 143-53621. Price: $1.85 |
| 24 |
313085GS |
SCREW This part replaces 86292. Price: $3.35 |
| 25 |
23762GS |
WASHER, #10 Ext. Shakeproof This part replaces 23762. Price: $2.64 |
| 26 |
79661G |
Engine Decal Price: Call Us |
| 27 |
77581GS |
DECAL, AIR BOX, 16H VTW This part replaces 77581. Price: $16.05 |
| 28 |
194799GS |
DECAL, Danger This part replaces 92982. Price: $10.48 |
| 29 |
92514GS |
DECAL, PNL, CNTRL, MC This part replaces 92514. Price: Call Us |
| 30 |
93015 |
Unit Decal Price: Call Us |
| 31 |
78817GS |
DECAL, DATA, GNRC GEN This part replaces 78817. Price: $2.80 |
| 32 |
77816GS |
DECAL, Hot Muffler This part replaces 77816. Price: $3.95 |
| 33 |
70542 |
M6-1.0 x 16mm Capscrew Price: Call Us |
| 35 |
38057GS |
Grommet This part replaces 38057. Price: Call Us |
| 36 |
84132GS |
ASSEMBLY, POWER REGULATOR This part replaces 84132. Price: $31.80 |
| 37 |
93826GS |
DECAL, START INSTRUCTIONS This part replaces 93826. Price: $1.85 |
| 47 |
96716GS |
WASHER, Nylon This part replaces 96716. Price: $2.20 |
| 48 |
95920GS |
LINKAGE, Stepper Motor to Bell Crank This part replaces 95920. Price: $13.26 |
| 49 |
95921GS |
LINKAGE, Bell Crank to Throttle This part replaces 95921. Price: $9.70 |
| 50 |
33141GS |
SCREW This part replaces 33141. Price: $2.49 |
| 51 |
51713GS |
WASHER, M5 This part replaces 51713. Price: $2.64 |
| 52 |
49226GS |
WASHER, M5 Lock This part replaces 49226. Price: $1.89 |
| 53 |
62265GS |
GROMMET, Rubber This part replaces 62265. Price: $6.69 |
| 54 |
92102 |
Stepper Motor Price: $15.52 |
| 55 |
200107GS |
BRACKET This part replaces 95350. Price: $25.49 |
| 56 |
95349GS |
PLATE, Adjust This part replaces 95349. Price: $5.79 |
| 57 |
95348GS |
BRACKET, Bell Crank This part replaces 95348. Price: $6.39 |
| 58 |
70005GS |
WASHER-LOCK This part replaces 70005. Price: $2.75 |
| 59 |
43146GS |
SCREW This part replaces 43146. Price: $6.46 |
| 60 |
74041 |
M5-0.8 x 20 Phillips Head Screw Price: Call Us |
| 61 |
96387 |
Spacer Price: $24.20 |
| 62 |
96717GS |
SPRING This part replaces 96717. Price: $49.81 |
| 63 |
81886GS |
DECAL, STA-BIL This part replaces 81886. Price: $9.79 |
