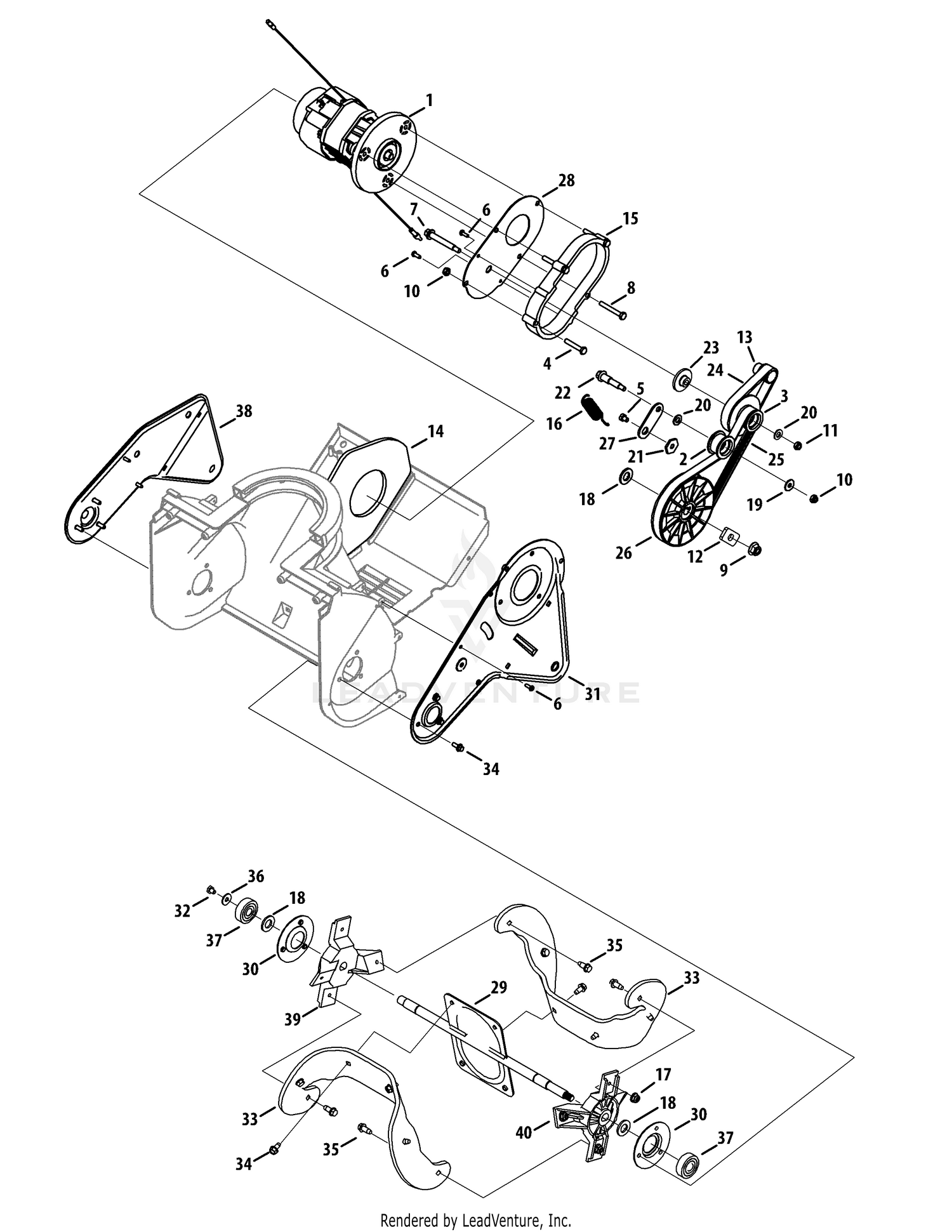

| Ref | Part Number | Description |
|---|
| 1 |
924-04037 |
MOTOR ASSEMBLY Not Available Price: |
| 2 |
931-04505 |
Pulley Assembly, Idler Price: $11.24 |
| 3 |
656-04060P |
BEARING PULLEY ASSEMBLY Not Available This part replaces 656-04060AP. Price: |
| 4 |
710-04197 |
SCREW M6-1X35 Not Available Price: |
| 5 |
710-05132 |
Screw, Hex Screw, M6 x 8mm Price: $3.49 |
| 6 |
710-05137 |
SCREW M4.2 x 1.4 x 13 Not Available Price: |
| 7 |
710-05187A |
SCREW M8-1.25 x 62MM Not Available Price: |
| 8 |
710-1391 |
SCREW M6-1 x 45 Not Available Price: |
| 9 |
712-04065 |
Nut, Flange Lock, 3/8-16, Nylon Price: $3.68 |
| 10 |
712-0691 |
HEX NUT This part replaces 912-0691. Price: $6.13 |
| 11 |
712-0692 |
Nut, Hex Lock, M8-1.25, Nylon Price: $6.07 |
| 12 |
790-00472 |
DRIVE PULLEY PLATE Not Available Price: |
| 13 |
756-04455A |
PULLEY-5MM 15 TOOTH Not Available Price: |
| 14 |
723-04076 |
FOAM GASKET Not Available Price: |
| 15 |
731-07772 |
MOTOR SPACER Not Available Price: |
| 16 |
732-04770 |
IDLER SPRING Not Available Price: |
| 17 |
712-04064 |
Nut, Flange Lock, 1/4-20, Nylon Price: $3.64 |
| 18 |
736-04502A |
Washer, Flat, M12 Price: $3.24 |
| 19 |
736-0685 |
FLAT WASHER Not Available Price: |
| 20 |
736-0700 |
Washer, Flat, 8.4 x 16 x 1.60 Price: $6.20 |
| 21 |
738-04446 |
SPACER-SHOULDER HEX NLAUD Not Available Price: |
| 22 |
738-04449 |
SHOULDER SCREW Not Available Price: |
| 23 |
750-05435 |
SPACER Not Available Price: |
| 24 |
754-04279A |
BELT-5MM PITCH x 280MM Not Available Price: |
| 25 |
754-04281A |
Belt, Poly, 6 Rib Price: $17.85 |
| 26 |
756-04481 |
Pulley, Auger, 6 Rib Price: $27.13 |
| 27 |
790-00418 |
IDLER BRACKET Not Available Price: |
| 28 |
790-00425-0637 |
MOTOR PLATE Not Available Price: |
| 29 |
684-04396 |
AUGER SHAFT ASSEMBLY Not Available Price: |
| 30 |
790-00446-0637 |
BEARING COVER Not Available Price: |
| 31 |
790-00447-0637 |
FRAME (LH) Not Available Price: |
| 32 |
710-05132 |
Screw, Hex Screw, M6 x 8mm Price: $3.49 |
| 33 |
735-04273 |
Paddle Auger, Rubber Price: $12.93 |
| 34 |
710-05413 |
SCREW 1/4-20 x .500 Not Available Price: |
| 35 |
710-04666 |
Screw, 1/4-10 x .75 Price: $6.04 |
| 36 |
736-0685 |
FLAT WASHER Not Available Price: |
| 37 |
741-04466 |
BALL BEARING Not Available Price: |
| 38 |
790-00397A-0637 |
OUTER FRAME (RH) Not Available Price: |
| 40 |
731-09027 |
Bracket, Paddle, Mount, LH Price: $13.24 |
