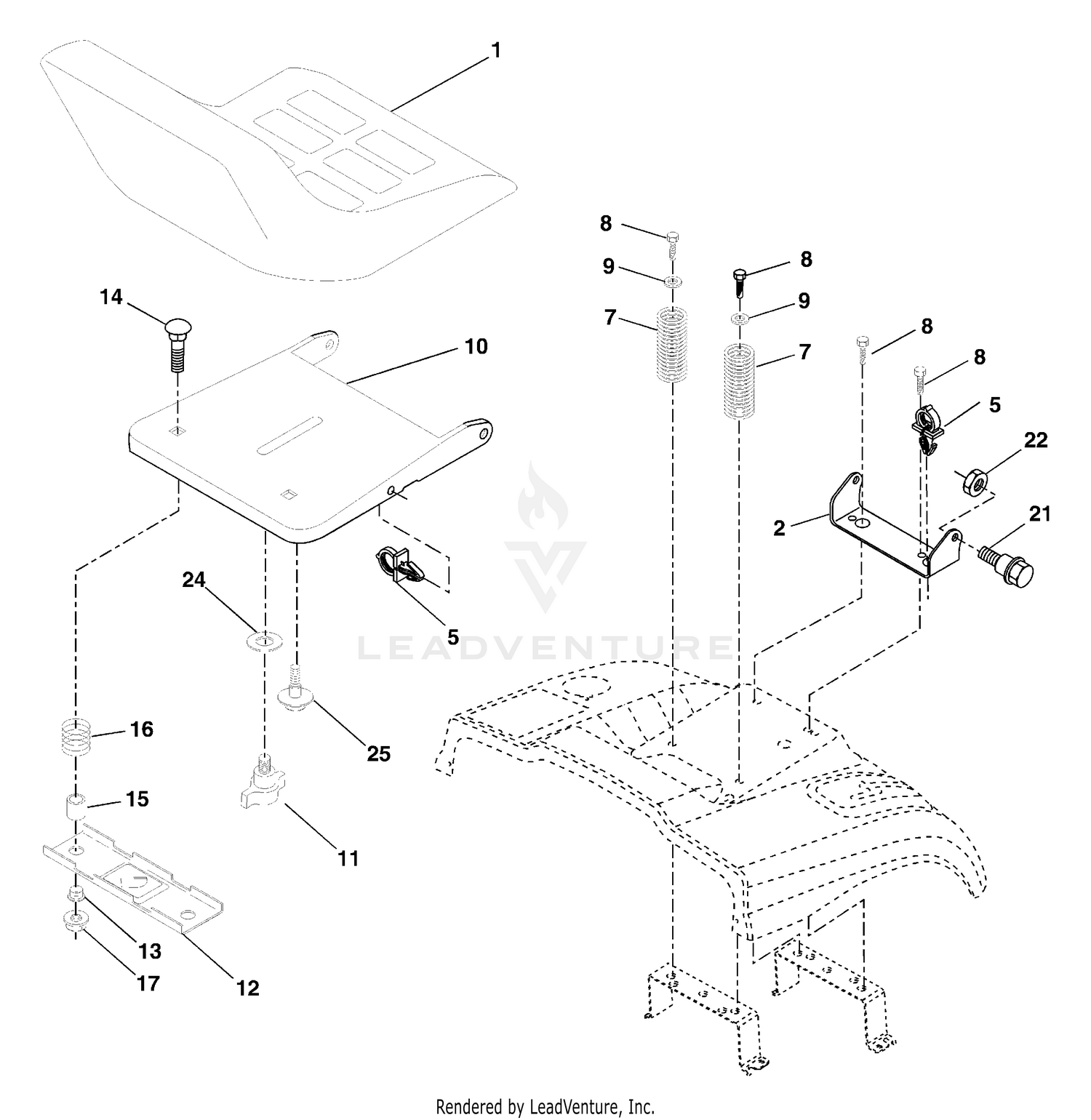

| Ref | Part Number | Description |
|---|
| 1 |
532401042 |
SEAT.XG090.BLK.KB/BLT.NO-LOG This part replaces 532140839. Price: $149.99 |
| 1 |
67-3770 |
DISCONTINUED Price: Call Us |
| 2 |
531152401 |
SERVICE KIT BRACKET SEAT PIVOT This part replaces 532140551. Price: $8.99 |
| 2 |
67-3760 |
LOCK PLATE Price: $21.29 |
| 3 |
67-3470 |
DELIVERY VALVE HOLDER Price: $25.07 |
| 4 |
67-3480 |
O-RING Price: $2.47 |
| 5 |
532145006 |
PUSH CLIP Price: $2.99 |
| 5 |
67-3490 |
SPRING Price: $5.86 |
| 6 |
93-3465 |
GASKET-DELIVERY V. This part replaces 42-8240. Price: $8.09 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 7 |
67-6500 |
Valve Price: Call Us |
| 8 |
70-8710 |
DISCONTINUED Price: Call Us |
| 8 |
817000616 |
SCREW 3/8-16X1 This part replaces 817060616. Price: $5.99 |
| 9 |
596140201 |
Washers This part replaces 819131614. Price: $2.99 |
| 9 |
67-3460 |
SUB-ASM PUMP HOUSING Price: $618.09 |
| 10 |
532195530 |
PAN.ASM.SEAT.1SLOT This part replaces 532155925. Price: $17.99 |
| 10 |
67-3520 |
SUB-ASSEMBLY SLEEVE Price: $47.39 |
| 11 |
532166369 |
KNOB.SEAT.ADJ.WINGNUT Price: $6.99 |
| 11 |
67-3530 |
SEAT Price: $4.36 |
| 12 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK This part replaces 532121246. Price: $8.99 |
| 12 |
67-3540 |
SPRING Price: $12.47 |
| 13 |
532121248 |
BUSHING Price: $4.99 |
| 13 |
67-3550 |
DISCONTINUED Price: Call Us |
| 14 |
872050412 |
BOLT.ROUND.HEAD.SQUARE.NECK Price: $4.99 |
| 15 |
532134300 |
SPACER SPLIT 28X.96 Price: $3.99 |
| 15 |
67-3700 |
DISCONTINUED Price: Call Us |
| 16 |
532121250 |
SPRING Price: $3.99 |
| 16 |
67-3810 |
PIN Price: $4.69 |
| 17 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 17 |
67-3790 |
DISCONTINUED Price: Call Us |
| 18 |
67-3800 |
BRACKET Price: $27.34 |
| 19 |
67-3780 |
RACK ASSEMBLY Price: $154.27 |
| 20 |
70-3910 |
WASHER This part replaces 67-3750. Price: $3.15 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532153236. Price: $2.99 |
| 21 |
67-3740 |
NIPPLE Price: $62.56 |
| 22 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 22 |
67-3730 |
DISCONTINUED Price: Call Us |
| 23 |
67-3720 |
DISCONTINUED Price: Call Us |
| 24 |
596040101 |
Washers This part replaces 819171612. Price: $2.99 |
| 24 |
67-3710 |
AIR BLEED SCREW Price: $6.38 |
| 25 |
67-3970 |
NUT Price: $28.82 |
| 26 |
67-3980 |
GASKET Price: $3.19 |
| 27 |
67-3960 |
NOZZLE ASSEMBLY Price: $167.76 |
| 28 |
67-3950 |
PIECE Price: $19.92 |
| 29 |
93-3502 |
PIN-PRESSURE This part replaces 67-3940. Price: $3.22 |
| 30 |
67-3930 |
SPRING Price: $12.66 |
| 31 |
93-3491 |
WASHER-T=1.25 This part replaces 67-3830. Price: $8.80 |
| 32 |
75-5000 |
BODY SUB-ASSY This part replaces 67-3820. Price: $147.67 |
