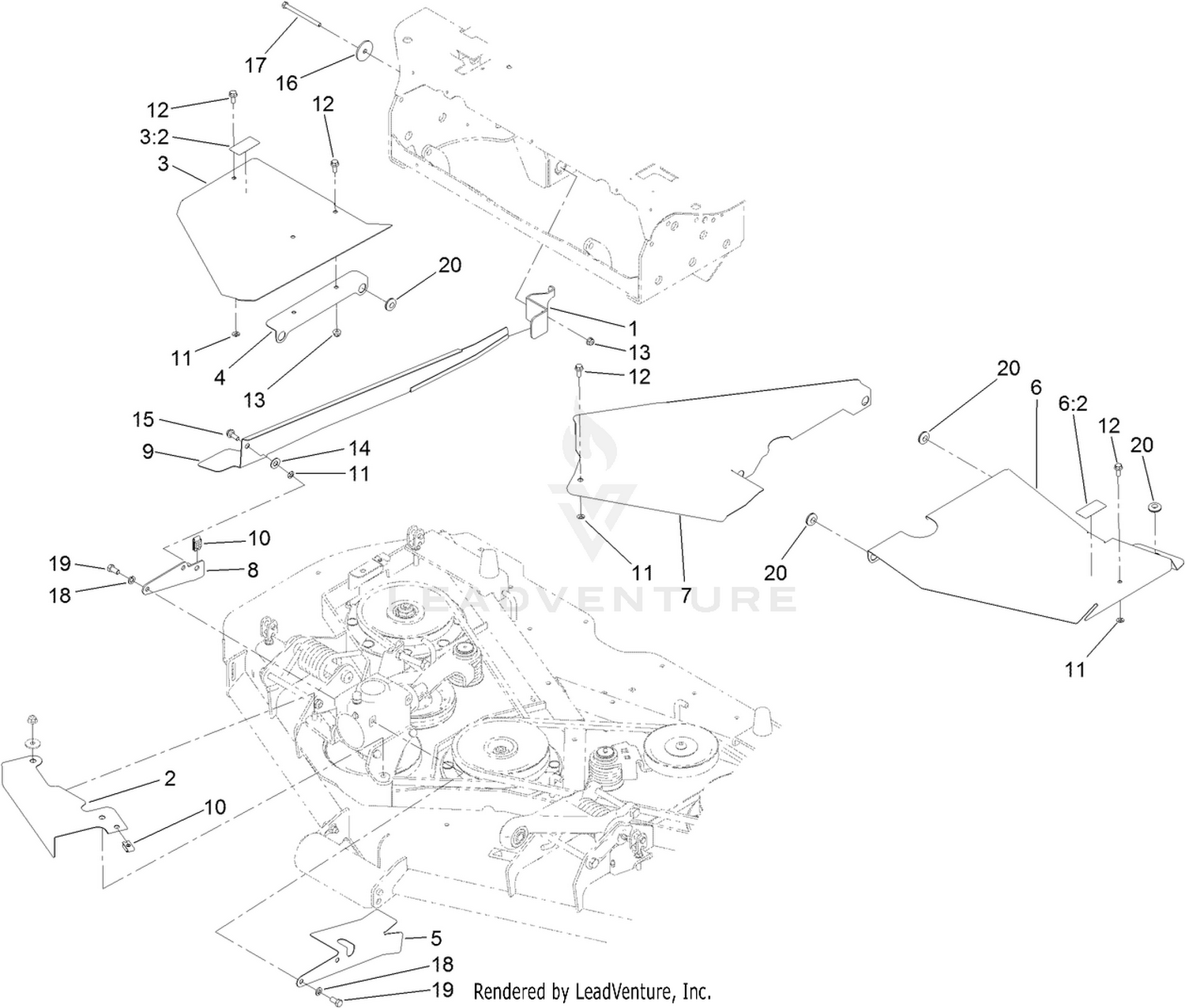

Mower Cover Assembly
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 127-4999-03 | SUPPORT-SHIELD Price: $25.83 |
| 2 | 127-4992-03 | SHIELD-PULLEY Price: $35.22 |
| 3 | 127-4940 | RH COVER ASM Price: $82.83 |
| 4 | 127-4995-03 | SUPPORT-COVER Price: $20.43 |
| 5 | 127-4920-03 | COVER-DRIVESHAFT Price: $34.97 |
| 6 | 127-4941 | LH COVER ASM Price: $95.66 |
| 7 | 127-4924-03 | COVER-INNER Price: $69.27 |
| 8 | 127-4991-03 | BRACKET-PIVOT Price: $22.30 |
| 9 | 127-4922-03 | SHIELD-DRIVESHAFT Price: $54.59 |
| 10 | 110-3510 | NUT-RETAINER Price: $5.77 |
| 11 | 117-2749 | NUT-PUSH Price: $0.25 |
| 12 | 3234-47 | SCREW-HHF Price: $1.79 |
| 13 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 14 | 3256-25 | WASHER-FLAT Price: $0.25 |
| 15 | 27-0410 | SCREW-SHOULDER Price: $2.59 |
| 16 | 63-7400 | WASHER-REBOUND Price: $1.70 |
| 17 | 322-19 | SCREW-HH Price: $5.99 |
| 18 | 3253-21 | WASHER-LOCK Price: $0.28 |
| 19 | 323-4 | SCREW-HH Price: $1.02 |
