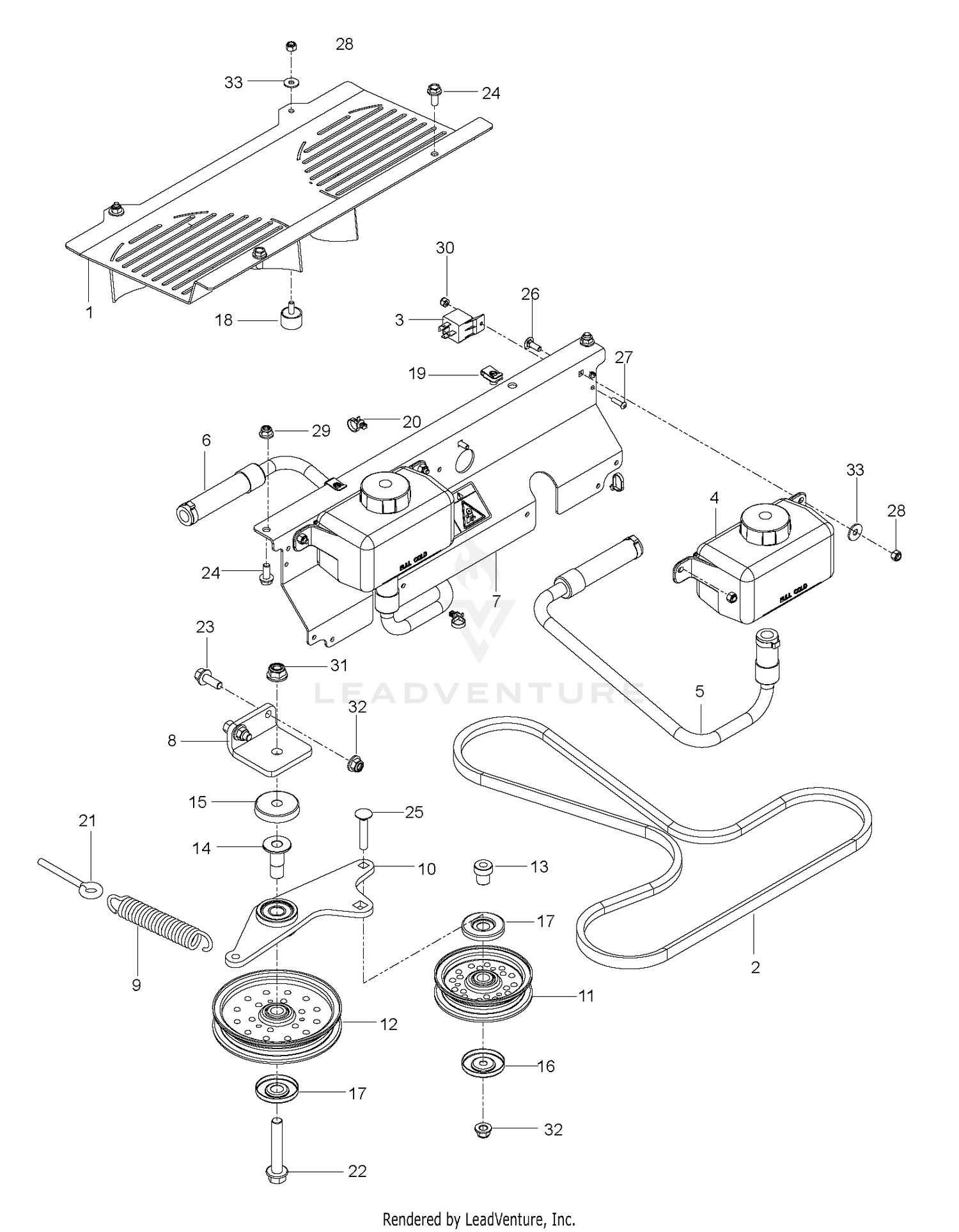

HYDRAULIC FRAME

HYDRAULIC FRAME

Parts (31)

RefPart NumberDescription
1 575961504 SHIELD, FAN Price: $142.99
2 575586701 BELT, BX, 72.3 Price: $49.99
3 539102914 RELAY Price: $21.99
4 574499201 HG_TANK, EXPANSION Price: $29.99
5 523017301 HOSE, EXPANSION TANK, RT Price: $44.99
6 523017302 HOSE, EXPANSION TANK, LT Price: $399.99
7 523017202 MOUNT, EXPANSION TANK, BLK Price: $67.99
8 574891202 MOUNT, IDLER ARM, BLACK Price: $24.99
9 575470901 SPRING, EXTENSION Price: $22.99
11 596739801 PULLEYS This part replaces 539976688. Price: $29.99
13 525435601 PIVOT, IDLER Price: $5.99
14 574975601 BUSHING, PIVOT Price: $3.99
15 596394601 Shields This part replaces 539114662. Price: $2.99
16 510254502 SHIELD DUST This part replaces 510254501. Price: $3.99
17 596840301 Shields This part replaces 510262201. Price: $19.99
18 522801401 BUMPER, MALE STUD, 1/4-20 Price: $2.99
19 539104763 U-CLIP 5/16-18 NUT RETAINER Price: $4.99
20 502280001 Tie Wrap W/Clip Price: $105.54
21 596240801 GSPW Bolts This part replaces 539115574. Price: $3.99
22 596789601 Bolts This part replaces 525828901. Price: $3.99
23 525612802 Screws This part replaces 525612801. Price: $2.99
24 525464701 HHFS 5/16-18 X 3/4 Price: $2.99
25 595901401 Bolts This part replaces 539100145. Price: $2.99
26 596238401 BOLT CUP HEAD SQUARE NECK BOLT This part replaces 539990074. Price: $2.99
27 574822701 SCR #10-24 X .75 SKT HD BLK Price: $2.99
28 582478602 NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539976978. Price: $1.99
29 594944401 NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99
30 596040801 Hardware This part replaces 539976977. Price: $2.99
31 521991102 NUT 1/2-13 HEX FLANGE NYLOK CL This part replaces 521991101. Price: $3.99
32 521996502 GSPW Nuts This part replaces 521996501. Price: $2.99
33 597338501 Washers This part replaces 539990598. Price: $12.99
