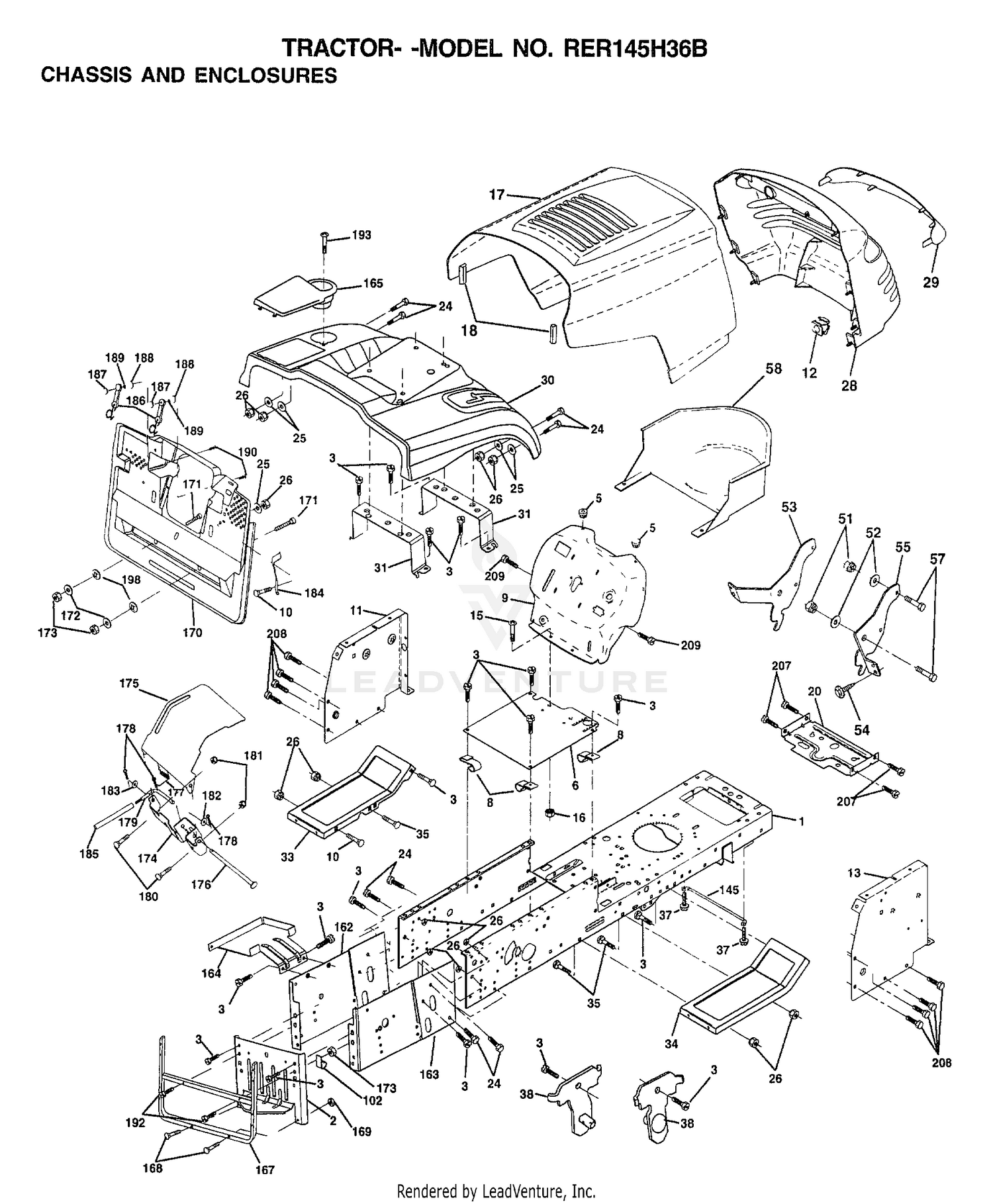

| Ref | Part Number | Description |
|---|
| 1 |
169831 |
CHASSIS Price: Call Us |
| 2 |
165606 |
DRAWBAR.CRD Price: Call Us |
| 2 |
322-3 |
SCREW-HH Price: $0.79 |
| 3 |
17060612 |
SCREW Price: Call Us |
| 3 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 5 |
155272 |
BUMPER-HOOD/DASH Price: Call Us |
| 5 |
23-1840 |
BUSHING-TAPERLOCK Price: $92.22 |
| 6 |
155923 |
SADDLE Price: Call Us |
| 7 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 9 |
168347X011 |
DASH Price: Call Us |
| 9 |
58-0070 |
DISC BRAKE ASM Price: $316.73 |
| 10 |
72140608 |
SUB= 72110608 Price: Call Us |
| 12 |
145660 |
CLIP.TINNERMAN Price: Call Us |
| 12 |
58-5430 |
PISTON MOTOR ASM Price: $3,072.75 |
| 13 |
172107X010 |
DASHBOARD Price: Call Us |
| 15 |
74180512 |
SCREW Price: Call Us |
| 16 |
323-18 |
SCREW-HH Price: $0.82 |
| 16 |
73510500 |
NUT Price: Call Us |
| 17 |
159639X505 |
HOOD.STEEL.ASSY Price: Call Us |
| 17 |
3253-5 |
WASHER-LOCK Price: $0.29 |
| 18 |
126938X |
SUB= 532126938 Price: Call Us |
| 18 |
353-949 |
O-RING Price: $3.49 |
| 19 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 20 |
327-3 |
SCREW-HH Price: $1.49 |
| 23 |
3219-5 |
NUT-HEX Price: $1.22 |
| 24 |
108-1434-03 |
PLANETARY GEAR DRIVE ASM Price: $3,448.21 |
| 24 |
74780616 |
BOLT Price: Call Us |
| 25 |
19131312 |
WASHER Price: Call Us |
| 26 |
66-5660 |
WHEEL AND TIRE ASM Price: $567.51 |
| 26 |
73800600 |
NUT Price: Call Us |
| 27 |
323-20 |
SCREW-HH Price: $1.28 |
| 28 |
157373 |
GRILLE-MS428 Price: Call Us |
| 28 |
58-3780 |
TUBE-SPACE Price: $25.99 |
| 29 |
140273X599 |
LENS.GRILLE.PRIVATE LABEL Price: Call Us |
| 29 |
29-1060 |
BRACKET-SECONDARY Price: $135.49 |
| 30 |
165713X505 |
FENDER.AUTO Price: Call Us |
| 31 |
165156 |
BRKT.SUPT.FENDER.CRD Price: Call Us |
| 32 |
58-0110-03 |
BRACKET-CALIPER, BRAKE Price: $142.37 |
| 33 |
105476X505 |
FOOTREST LH Price: Call Us |
| 33 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 34 |
105475X505 |
FOOTREST RH Price: Call Us |
| 34 |
29-1070 |
LEVER ASM Price: $64.17 |
| 35 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 35 |
72110606 |
BOLT Price: Call Us |
| 36 |
60-1740 |
NUT Price: $1.53 |
| 37 |
17490508 |
SCREW LT Price: Call Us |
| 37 |
58-2300 |
LINK-BRAKE Price: $30.30 |
| 38 |
169834 |
BRKT ASM PIVOT MOWER REAR Price: Call Us |
| 38 |
283-67 |
PIN-CLEVIS Price: $2.04 |
| 39 |
29-1080 |
BRAKE PAD Price: $66.87 |
| 40 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 41 |
3253-8 |
WASHER-LOCK Price: $0.47 |
| 44 |
92-6058 |
FITTING-STR Price: $105.61 |
| 45 |
98-1282 |
ADAPTER-HYD, STRAIGHT Price: $54.52 |
| 46 |
340-159 |
FITTING-HYD, 90 DEG Price: $55.33 |
| 47 |
86-5480 |
NIPPLE-TEST Price: $48.77 |
| 51 |
73800400 |
NUT Price: Call Us |
| 52 |
19091416 |
WASHER Price: Call Us |
| 53 |
144697 |
BRACKET.GRILLE.LH Price: Call Us |
| 54 |
161464 |
SCREW.HEX.WS.HD Price: Call Us |
| 55 |
144696 |
BRACKET.GRILLE.RH Price: Call Us |
| 57 |
74780412 |
SUB= 74780414 Price: Call Us |
| 58 |
150127 |
AIR DUCT Price: Call Us |
| 102 |
2751R |
CLIP T Price: Call Us |
| 162 |
165672 |
BRKT.EXT.CHASSIS.LH.CRD Price: Call Us |
| 163 |
165673 |
BRKT.EXT.CHASSIS.RH.CRD Price: Call Us |
| 164 |
165605 |
SUPPORT.BATTERY.CRD Price: Call Us |
| 165 |
165742X428 |
COVER.BATTERY.CRD.BLACK.LT Price: Call Us |
| 167 |
165779 |
SUPT.ASM.BACKPLATE Price: Call Us |
| 168 |
72050412 |
BOLT-RD HD SQ NK Price: Call Us |
| 169 |
123976X |
SUB= 73900400 Price: Call Us |
| 170 |
165607 |
COVER.BACKPLATE.BLACK Price: Call Us |
| 171 |
74520640 |
BOLT.HEX.3/8-16X2-1/2 Price: Call Us |
| 172 |
19132016 |
SUB= 19132012 Price: Call Us |
| 173 |
73510600 |
NUT Price: Call Us |
| 174 |
165939 |
BRKT.SWITCH.FBI.CRD Price: Call Us |
| 175 |
166212 |
GRUARD.DOOR.REAR.CRD Price: Call Us |
| 176 |
128600 |
HINGE PIN Price: Call Us |
| 177 |
132796 |
SPRING.COVER.LH Price: Call Us |
| 178 |
76020312 |
SUB= 3145 Price: Call Us |
| 179 |
165942 |
ROD.PIVOT.FBI.CRD Price: Call Us |
| 180 |
74760516 |
SUB= 77394 Price: Call Us |
| 181 |
73680500 |
SUB= 73690500 Price: Call Us |
| 182 |
138200 |
WASHER.385X.625 Price: Call Us |
| 183 |
19131316 |
WASHER Price: Call Us |
| 184 |
166139 |
BRKT.ACTUATOR.BAG.CRD Price: Call Us |
| 185 |
165940 |
TUBE.LEVER.SWCH.FBI.CRD Price: Call Us |
| 186 |
160793 |
LATCH ASSY.BAGGER Price: Call Us |
| 187 |
2029J |
WELDNUT Price: Call Us |
| 188 |
19061216 |
WASHER #10 Price: Call Us |
| 189 |
10071000 |
LOCKWASHER Price: Call Us |
| 190 |
71161010 |
SCREW Price: Call Us |
| 192 |
17490624 |
SCREW LT Price: Call Us |
| 193 |
17070412 |
SCREW Price: Call Us |
| 198 |
168937 |
NUT PUSH Price: Call Us |
| 207 |
17670508 |
SCREW Price: Call Us |
| 208 |
17670608 |
SCREW Price: Call Us |
| 209 |
17000612 |
SCREW Price: Call Us |
