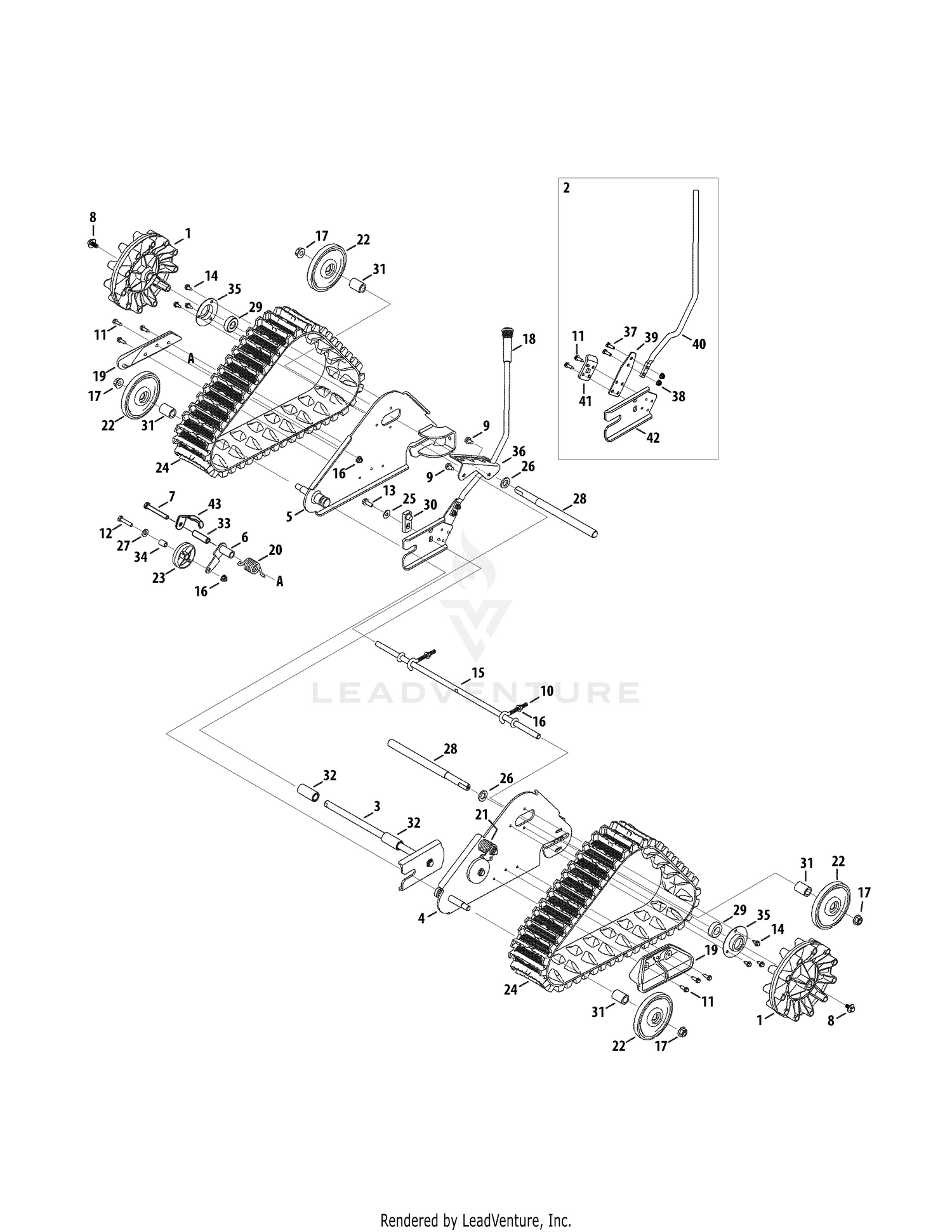

| Ref | Part Number | Description |
|---|
| 1 |
631-05092B |
TRACK DRIVE WHEEL This part replaces 631-05092. Price: $46.35 |
| 2 |
N/A |
Height Adjustment Lever Assmy |
| 3 |
684-05031 |
Pivot Bracket Assembly Price: $74.51 |
| 4 |
684-05033A-0637 |
Track Mount Plate Assembly, LH Price: $93.12 |
| 5 |
684-05034A-0637 |
Track Mount Plate Assembly, RH Price: $93.12 |
| 6 |
684-05052-0637 |
Pivot Tension Bracket Assembly Price: $16.76 |
| 7 |
710-0378 |
Hex Screw, 5/16-18, 2.50, Gr5 Price: $4.09 |
| 8 |
710-05339A |
Screw, 5/16-24 x .750 Price: $3.70 |
| 9 |
710-0604A |
Hex Washer Screw, 5/16-18 x .875 Price: $3.96 |
| 10 |
710-06112 |
Eye Bolt, 5/8 x 2.375, 5/16-18 Price: $5.59 |
| 11 |
710-06115 |
Hex Washer Screw, 1/4-20 x .625 Price: $3.86 |
| 12 |
710-0805A |
Hex Cap Screw, 5/16-18 x 1.50 Price: $3.75 |
| 13 |
710-1238A |
SCREW 5/16-18 x .875 GR5 HXFLG HD This part replaces 710-1238. Price: $3.74 |
| 14 |
710-1652 |
Hex Washer Screw, 1/4-20 x .625 Price: $3.86 |
| 15 |
911-06119 |
Rear Wheel Axle Price: $44.68 |
| 16 |
712-04063 |
Nut, Flange lock, 5/16-18 Price: $3.56 |
| 17 |
712-04150 |
Flange Lock Nut, 1/2-13 Price: $3.74 |
| 18 |
720-0223 |
Grip, .5 ID x 3.45 Price: $12.89 |
| 19 |
731-09608 |
Track Skid Price: $11.15 |
| 20 |
732-05145 |
Torsion Spring Price: $5.59 |
| 21 |
732-05148 |
Torsion Spring Price: $5.59 |
| 22 |
734-05046 |
Wheel, 5.00 OD Price: $42.65 |
| 23 |
734-05058 |
Track Tension Wheel Price: $6.49 |
| 24 |
735-05029A |
DRIVE TRACK 61MM x 22 PITCHES This part replaces 735-05029. Price: $241.21 |
| 25 |
736-0242 |
Washer, Bell, .340 x .872 Price: $3.75 |
| 26 |
736-05041 |
Flat Washer, .672 x 1.125 x .125 Price: $3.70 |
| 27 |
936-3008 |
Flat Washer, .344 x .750 x .120 Price: $6.24 |
| 28 |
938-05044 |
Axle, .75 OD x 11.06 LG Price: $46.54 |
| 29 |
941-0600 |
Ball Bearing, 17 x 40 x 12 Price: $23.34 |
| 30 |
748-05020 |
Height Adjustment Adapter Price: $18.62 |
| 31 |
750-06090 |
Spacer, .63 x 1.00 x 1.42 Price: $5.59 |
| 32 |
750-06095 |
Spacer, .632 x 1.00 x 1.42 Price: $8.34 |
| 33 |
750-06169 |
Sleeve, .33 x .50 x 1.73 Price: $4.64 |
| 34 |
750-06170 |
Sleeve, .33 x .50 x .75 Price: $4.64 |
| 35 |
790-00554 |
Cup Bearing Not Available Price: |
| 36 |
790-00562-0637 |
Height Adjustment Index Bracket Price: $26.87 |
| 37 |
710-3015 |
Hex Cap Screw, 1/4-20 x .75 Price: $3.65 |
| 38 |
712-04064 |
Nut, Flangelock, 1/4-20 Price: $3.64 |
| 39 |
732-05079 |
Lever Mounting Bracket Price: $9.53 |
| 40 |
747-06180 |
Height Adjustment Lever Price: $24.25 |
| 41 |
787-06323-0637 |
PIVOT LEVER BRACKET (POWDER BLACK) This part replaces 787-01521-0637. Price: $7.96 |
| 42 |
790-00552 |
Height Adjustment Pivot Bracket Price: $24.25 |
