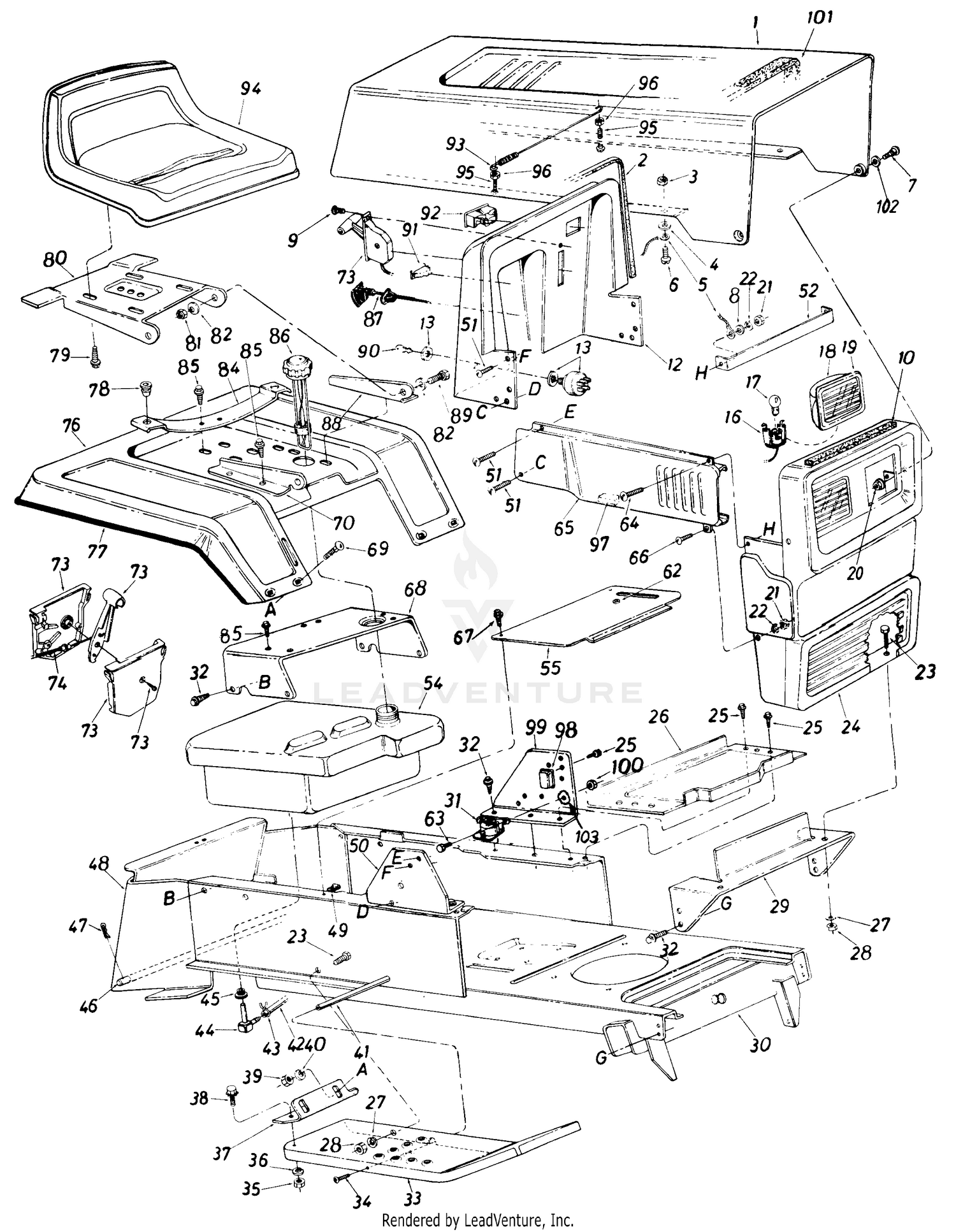

| Ref | Part Number | Description |
|---|
| 1 |
15808 |
Hood Price: Call Us |
| 2 |
731-0511 |
Vinyl Molding Strip-29" Price: $3.29 |
| 3 |
712-0272 |
Hex Sems Nut #10-24 Thd. Price: $3.58 |
| 4 |
736-0931 |
Fl-Wash. .20" I.D. x .41" O.D. Price: $4.02 |
| 5 |
727-0290A |
Brake Cable 11.75" Lg. This part replaces 727-0290. Price: $10.96 |
| 6 |
710-0473 |
Truss Hd. Mach. Scr. #10-24 x.50" Lg.* Price: $3.90 |
| 7 |
938-0952A |
Shoulder Bolt, .375 x .125 This part replaces 738-0724. Price: $6.17 |
| 8 |
736-0463 |
Fl-Wash. 1/4" I.D.* Price: $3.91 |
| 9 |
N/A |
UNKNOWN |
| 10 |
722-0155 |
STRIP-FOAM-3/8X3/4X14 Not Available Price: |
| 12 |
16550 |
DASH PANEL Not Available Price: |
| 13 |
925-0267B |
Ignition Switch This part replaces 725-0267. Price: $33.31 |
| 16 |
925-1058A |
HEADLAMP SOCKET Not Available This part replaces 725-1058. Price: |
| 17 |
925-0963 |
Miniature Lamp 12V Socket Type This part replaces 725-0963. Price: $6.73 |
| 18 |
931-0705 |
HEADLIGHT HOUSING Not Available This part replaces 731-0705. Price: |
| 19 |
931-0706 |
HEADLAMP LENS Not Available This part replaces 731-0706. Price: |
| 20 |
712-0380 |
LOCK NUT 1/4 x 28 Not Available Price: |
| 21 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 22 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 23 |
710-0118 |
Hex Bolt 5/16-18 x .75" Lg.* Price: $3.76 |
| 24 |
15804 |
Grille (With Headlights) Price: $26.00 |
| 25 |
710-0599 |
Hex Wash. Hd. AB-Tap Scr. 1/4 x.50" Lg. Price: $3.86 |
| 26 |
13379 |
CARRIER-BA Not Available Price: |
| 27 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 28 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 29 |
15825 |
BRACKET-GR Not Available Price: |
| 30 |
13820 |
LOWER FRAME ASS'Y. Not Available Price: |
| 31 |
925-0771 |
Solenoid This part replaces 725-0771. Price: $32.55 |
| 32 |
710-0726 |
Hex Thd. Rolling Scr. 5/16-24 x .75" Lg. Price: $3.82 |
| 33 |
13828 |
RUNNING BOARD R.H. Not Available Price: |
| 34 |
710-0323 |
Truss Mach. Scr. 5/16-18 x .75" Lg.* Price: $4.02 |
| 35 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 36 |
736-0242 |
Bell-Wash..34" I.D. Price: $3.75 |
| 37 |
15846 |
BRACKET-FENDER (RH) Not Available Price: |
| 38 |
710-0118 |
Hex Bolt 5/16-18 x .75" Lg.* Price: $3.76 |
| 39 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 40 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 41 |
738-0435 |
ROD-RUNNING BOARD Not Available Price: |
| 42 |
751-22813-24 |
FUEL HOSE 1/4-24" This part replaces 751-0173. Price: $27.48 |
| 43 |
726-0199 |
HOSE CLAMP-3/8 Not Available Price: |
| 46 |
738-0482 |
HITCH ROD Not Available Price: |
| 47 |
714-0147 |
Internal Cotter Pin Price: $4.20 |
| 48 |
13813 |
HITCH PIATE Not Available Price: |
| 49 |
726-0139 |
Speed Nut Price: $5.94 |
| 50 |
15828 |
SUPPORT BRACKET (RH) Not Available Price: |
| 51 |
710-0642 |
Hex Wash Hd. Tap Scr. 1/4 x .75" Lg. Price: $4.05 |
| 52 |
15931 |
TIE-STRAP Not Available Price: |
| 54 |
751-0367 |
FUEL TANK Not Available Price: |
| 55 |
15932 |
Transmission Cover Ass'y. Price: Call Us |
| 62 |
731-0405 |
BUSHING Not Available Price: |
| 63 |
910-0289 |
Hex Bolt 1/4-20 x .50" Lg. This part replaces 710-0289. Price: $3.15 |
| 64 |
710-0924 |
Truss Mach. Scr. 1/4-20 x.75" Lg. This part replaces 710-0255. Price: $4.02 |
| 65 |
15814 |
SIDE COVER R.H. Not Available Price: |
| 66 |
710-0286 |
Truss Mach. Scr. 1/4-20 x .50" Lg. Price: $3.86 |
| 67 |
710-0351 |
Truss Mach. B-Tap Scr. #10 x.50" Lg. Price: $3.90 |
| 68 |
15849 |
CHANNEL-SE Not Available Price: |
| 69 |
710-05177 |
CARRIAGE BOLT 1/4-20X.50" This part replaces 710-0167. Price: $4.26 |
| 70 |
15802 |
BRACKET-SE Not Available Price: |
| 73 |
831-0823A |
Throttle Control Box Ass'y. This part replaces 831-0823. Price: $30.59 |
| 74 |
946-0634 |
Throttle Wire This part replaces 746-0634. Price: $10.24 |
| 76 |
15886 |
FENDER-RR Not Available Price: |
| 77 |
731-0511 |
Trim Strip-81" Price: $3.29 |
| 78 |
731-0555 |
GROMMET Not Available Price: |
| 79 |
710-0623 |
Hex Wash. Hd. AB-Tap Scr. 3/8 x .75" Lg. Price: $3.93 |
| 80 |
783-0039A |
SEAT PIVOT BRACKET Not Available This part replaces 15607. Price: |
| 81 |
912-0158 |
Hex Cent. L.-Nut 5/16-18 Thd. This part replaces 712-0158. Price: $2.83 |
| 82 |
736-0242 |
Belleville Wash. .34" I.D. x .88" O.D. Price: $3.75 |
| 84 |
732-0431 |
Seat Spring Price: Call Us |
| 85 |
710-0607 |
Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .50" Lg. Price: $6.06 |
| 86 |
751-0370 |
CAP W/GAUGE-GAS Not Available Price: |
| 87 |
946-0613A |
Choke Control 44.0" Lg. This part replaces 746-0613. Price: $25.62 |
| 88 |
15803 |
BRACKET-SE Not Available Price: |
| 89 |
710-0118 |
Hex Bolt 5/16-18 x .75" Lg. Price: $3.76 |
| 90 |
925-0201 |
Key This part replaces 725-0201. Price: $8.70 |
| 91 |
925-0634 |
Light Switch This part replaces 725-0634. Price: $15.62 |
| 92 |
925-0925 |
Ammeter Not Available This part replaces 725-0925. Price: |
| 93 |
732-0462 |
EXTENSION SPRING Not Available Price: |
| 94 |
757-0318 |
SEAT Not Available Price: |
| 95 |
910-0749 |
CHAIN ADJUSTMENT BOLT Not Available This part replaces 710-0749. Price: |
| 96 |
712-0272 |
Hex Sems Nut #10-24 Price: $3.58 |
| 97 |
735-0224 |
STRIP-RUBBER Not Available Price: |
| 98 |
753-0685 |
CIRCUIT BREAKER Not Available This part replaces 725-0459. Price: |
| 99 |
17294B-0637 |
BRACKET-DASH SUP-L Not Available This part replaces 15829. Price: |
| 100 |
712-0271 |
Hex Sems Nut 1/4-20 Thd. Price: $3.78 |
| 101 |
722-0138 |
PVC FOAM Not Available Price: |
| 102 |
736-0413 |
Washer .34" I.D. x .62" O.D. Price: $6.01 |
