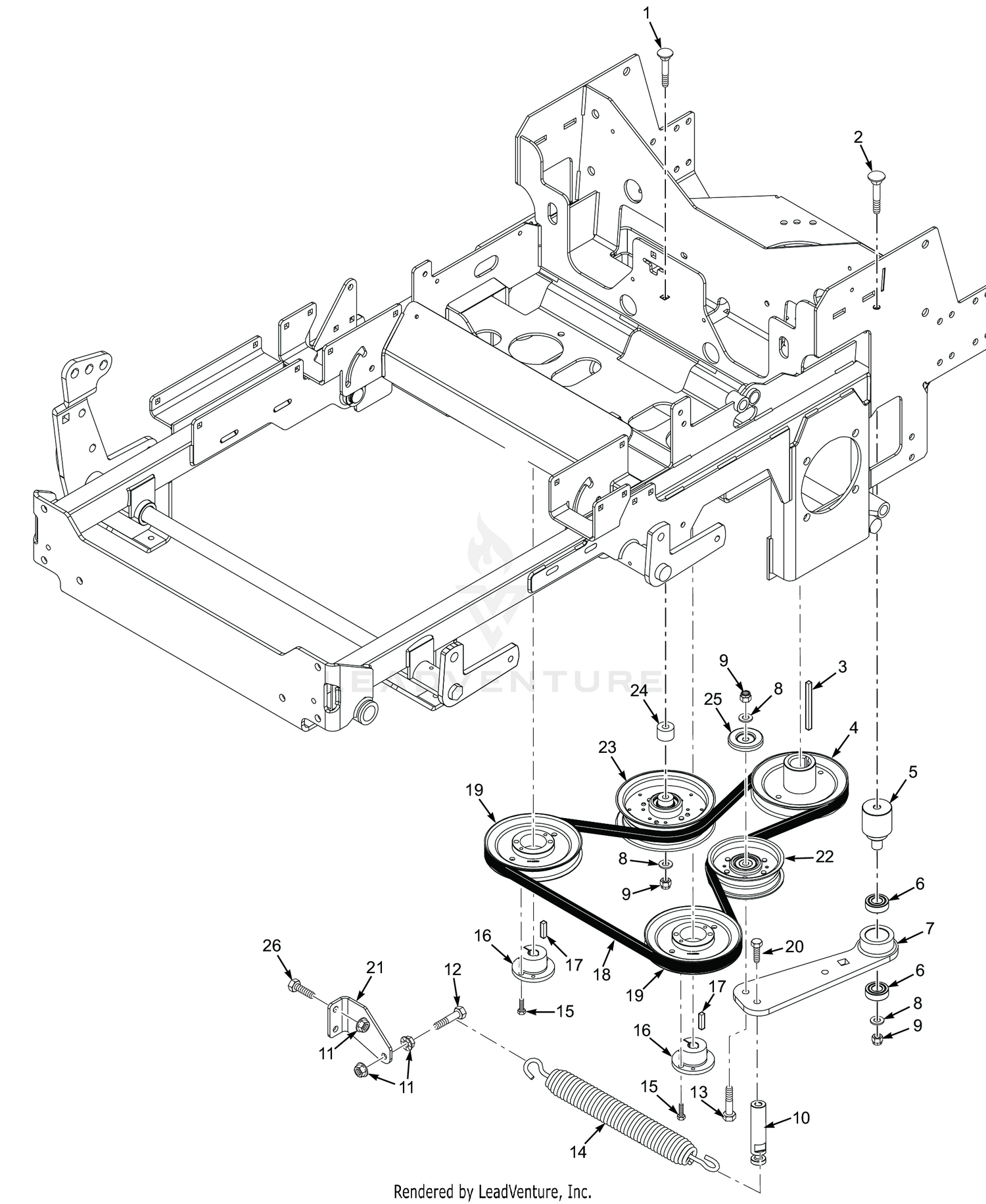

| Ref | Part Number | Description |
|---|
| 1 |
04003-47 |
Bolt, Carriage 3/8-16 x 3-1/4" Price: Call Us |
| 1 |
5-9700-01 |
HANDLE WA This part replaces 5-9700. Price: $298.49 |
| 2 |
04003-26 |
Bolt, Hex Head 3/8-16 x 3-1/2" Price: Call Us |
| 2 |
3-0516 |
DISCONTINUED Price: Call Us |
| 3 |
04063-28 |
Key, 1/4 x 1/4 x 3-1/2" Price: Call Us |
| 3 |
32121-4 |
PIN-ROLL, SLOTTED Price: $3.49 |
| 4 |
3-3422 |
ROD-CONTROL Price: $65.54 |
| 4 |
485589 |
Pulley, 5.75" Dia. - 1.125 Bore Price: Call Us |
| 5 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 5 |
431025 |
Pivot, Idler Arm Price: Call Us |
| 6 |
3272-1 |
PIN-COTTER Price: $0.25 |
| 6 |
48224 |
BEARINGS, BALL, NEUTRAL RETURN Price: Call Us |
| 7 |
462860 |
Idler Arm Assembly Price: Call Us |
| 8 |
04043-04 |
Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8 Price: Call Us |
| 8 |
3296-27 |
NUT-LOCK, NI Price: $0.27 |
| 9 |
04021-09 |
HEX NUT, ELASTIC STOP LOCK, 3/8-16 Price: Call Us |
| 9 |
3-0525-01 |
BELL CRANK CLUTCH WA This part replaces 3-0525. Price: $47.73 |
| 10 |
3250-4 |
SCREW Price: $1.78 |
| 10 |
431166 |
Spring Mount, Idler Price: Call Us |
| 11 |
04019-04 |
NUT, 3/8-16 SERRATED FLANGE HEX HEAD Price: Call Us |
| 11 |
3-0526 |
RETAINER Price: $25.44 |
| 12 |
04001-136 |
Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8 Black Price: Call Us |
| 12 |
3296-1 |
NUT-LOCK Price: $0.25 |
| 13 |
04001-46 |
Bolt, Hex Head 3/8-16 x 2-1/4" - 61" Price: Call Us |
| 13 |
323-30 |
SCREW-HH Price: $22.99 |
| 14 |
3-1776 |
BUSHING Price: $15.88 |
| 14 |
484202 |
Spring, Pump Drive Price: Call Us |
| 15 |
04001-172 |
Bolt, Hex Head 1/4-20 x 1" Grade 8 Black Price: Call Us |
| 15 |
3256-14 |
WASHER-FLAT Price: $0.39 |
| 16 |
482085 |
Hub, Tapered, 15mm Bore Price: Call Us |
| 16 |
603773 |
LOCKNUT This part replaces 32146-2. Price: $2.09 |
| 17 |
04063-14 |
KEY, 5 MM X 5 MM X 25 MM Price: Call Us |
| 17 |
23-7410 |
DISCONTINUED This part replaces 3-5622. Price: Call Us |
| 18 |
485649 |
Belt, Pump Drive (61") Price: Call Us |
| 18 |
88-8820 |
ROD-CLUTCH This part replaces 3-0520. Price: $38.97 |
| 19 |
3-0530 |
DISCONTINUED Price: Call Us |
| 19 |
482744 |
Pulley, 5.75 O.D. (Gasoline Engines) Price: Call Us |
| 20 |
04001-168 |
Bolt, Hex Head 3/8-16 x 1-1/4" Grade 8 Price: Call Us |
| 20 |
3-3418 |
THROTTLE CONTROL ROD *R Price: $87.56 |
| 21 |
427016 |
Bracket, Spring Anchor Price: Call Us |
| 21 |
5-1978 |
HANDLE ADJ BAR Price: $56.31 |
| 22 |
3-0616 |
DISCONTINUED Price: Call Us |
| 22 |
484128 |
Pulley, 4" Dia. Idler Price: Call Us |
| 23 |
3-3417 |
THROTTLE CONTROL Price: $126.58 |
| 23 |
483215 |
Idler Pulley, Belt Clutch Price: Call Us |
| 24 |
43286 |
Spacer, Idler Price: Call Us |
| 25 |
3254-9 |
WASHER-LOCK, INTERNAL Price: $0.25 |
| 25 |
424367 |
Quick Pin, 5/16" Dia. Price: Call Us |
| 26 |
32121-7 |
PIN-ROLL, SLOTTED Price: $0.31 |
| 27 |
3-3421 |
COLLAR Price: $2.00 |
| 28 |
3245-2 |
SCREW-SET, HSH Price: $2.58 |
| 29 |
32120-74 |
RING-SNAP Price: $0.54 |
| 30 |
3-3423 |
WASHER Price: $5.67 |
| 31 |
3249-3 |
SCREW-PRH Price: $0.34 |
| 32 |
49-8110 |
HANDLE GRIP This part replaces 3-8271. Price: $13.80 |
| 33 |
3251-4 |
SCREW-SRH Price: $0.25 |
| 34 |
3253-17 |
WASHER-LOCK Price: $0.25 |
| 35 |
3-0508 |
HANDLE COVER PLT WA Price: $128.40 |
| 36 |
3-1541 |
Decal Price: Call Us |
| 37 |
56-9810 |
DISCONTINUED This part replaces 3-0635. Price: Call Us |
| 38 |
5-0765 |
PIN Price: $14.02 |
| 39 |
5-0776 |
SPRING Price: $7.98 |
| 40 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 41 |
32120-35 |
RING-RETAINING, EXT Price: $0.25 |
| 42 |
3-0517 |
CLUTCH HANDLE BRKT *R Price: $18.24 |
