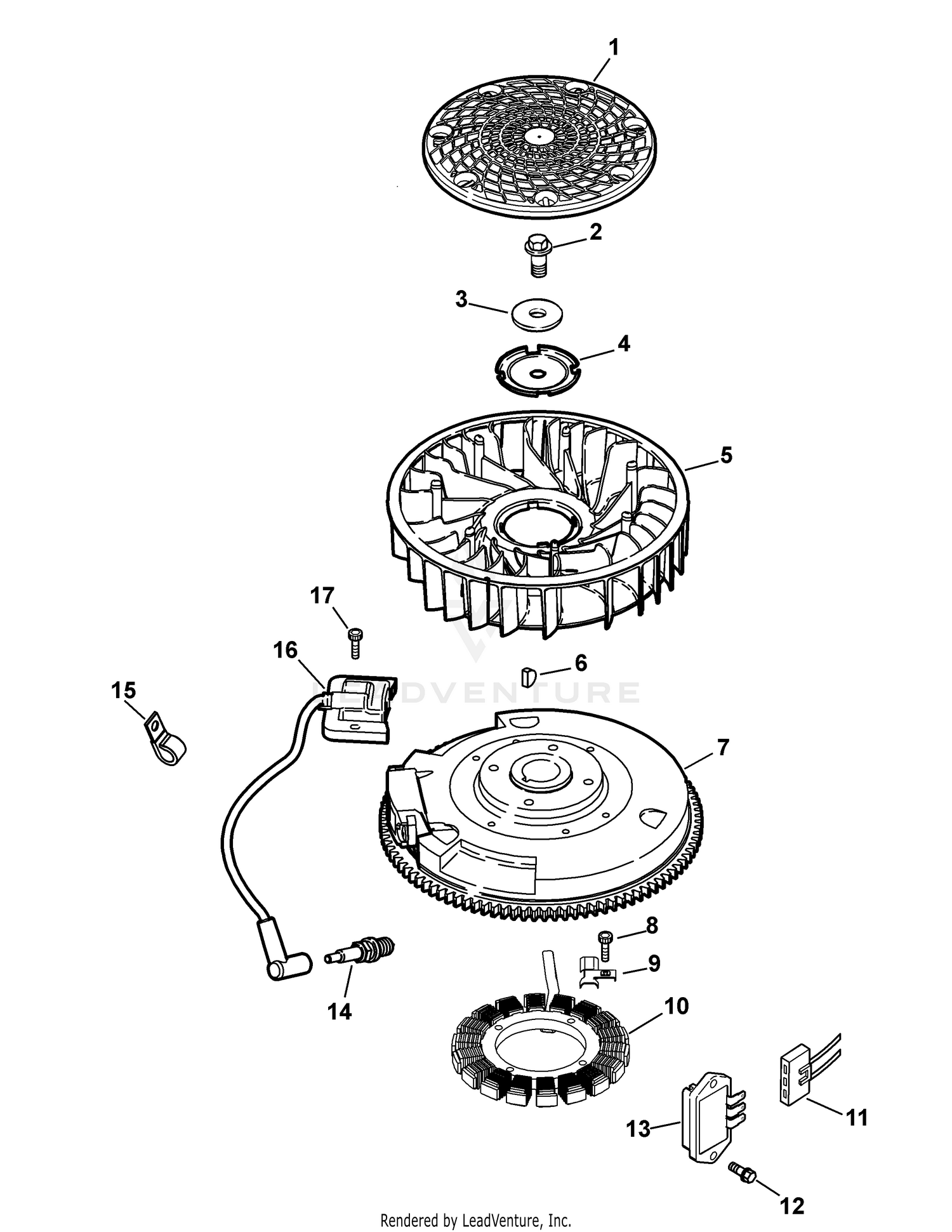

Kohler SV600-0009 Ignition & Electrical
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 98-7697 | BOLT Price: $1.08 |
| 1 | KH-20-162-02-S | Grass Screen Price: $7.45 |
| 2 | 98-7660 | WASHER-PLAIN This part replaces 98-7698. Price: $0.28 |
| 2 | KH-25-086-361-S | Screw, Flg M10X1.5X45 - (#25086361S) This part replaces KH-12-086-14. Price: $3.39 |
| 3 | 98-7692 | BOLT Price: $0.92 |
| 3 | KH-12-468-03 | WASHER Price: $6.07 |
| 4 | 112-7047 | STAY-DYNAMO This part replaces 98-9573. Price: $14.95 |
| 4 | KH-20-146-05-S | Fan Mounting Plate Price: $2.54 |
| 5 | 98-9584 | PULLEY-FAN Price: $89.56 |
| 5 | KH-20-157-01-S | Fan Price: $23.95 |
| 6 | 98-9360 | BOLT Price: $2.35 |
| 6 | KH-X-42-15 | Woodruff Key Price: $2.72 |
| 7 | 99-7527 | WASHER-SPRING This part replaces 98-9368. Price: $1.02 |
| 7 | KH-20-025-44-S | Flywheel This part replaces KH-20-025-40-S. Price: $245.18 |
| 8 | 98-9366 | WASHER-PLAIN Price: $0.28 |
| 8 | KH-20-086-17-S | SCREW-SOCKET HD Not Available Price: |
| 9 | 98-9700 | TERMINAL ASM Price: $3.16 |
| 9 | KH-20-154-03-S | STATOR WIRE CLIP Not Available Price: |
| 10 | 99-7526 | NUT This part replaces 98-7737. Price: $1.29 |
| 10 | KH-237878 | Stator Kit Price: $145.26 |
| 11 | 99-8363 | BOLT-FLANGE Price: $1.66 |
| 11 | KH-25-155-41-S | Body Connector (3 Contact) Price: $7.48 |
| 12 | 98-9602 | LOCK COUPLER ASM Price: $17.36 |
| 12 | KH-25-086-473-S | Thread Forming Screw This part replaces KH-M-545020-S. Price: $2.32 |
| 13 | 98-9696 | COUPLER ASM Price: $6.53 |
| 13 | KH-25-403-45-S | REGULATOR RECTIFIER This part replaces KH-41-403-09. Price: $105.87 |
| 14 | 131-6557 | ALTERNATOR ASM This part replaces 98-9474. Price: $443.05 |
| 14 | 759-3336 | Spark Plug Price: $11.00 |
| 15 | 98-9676 | V-BELT Price: $31.01 |
| 15 | KH-231285-S | CLIP-CABLE Not Available Price: |
| 16 | 104-1247 | PULLEY-FAN DRIVE Price: $208.24 |
| 16 | KH-20-584-03-S | Ignition Module Price: $34.85 |
| 17 | KH-M-561025-S | SCREW-SELF Not Available Price: |
