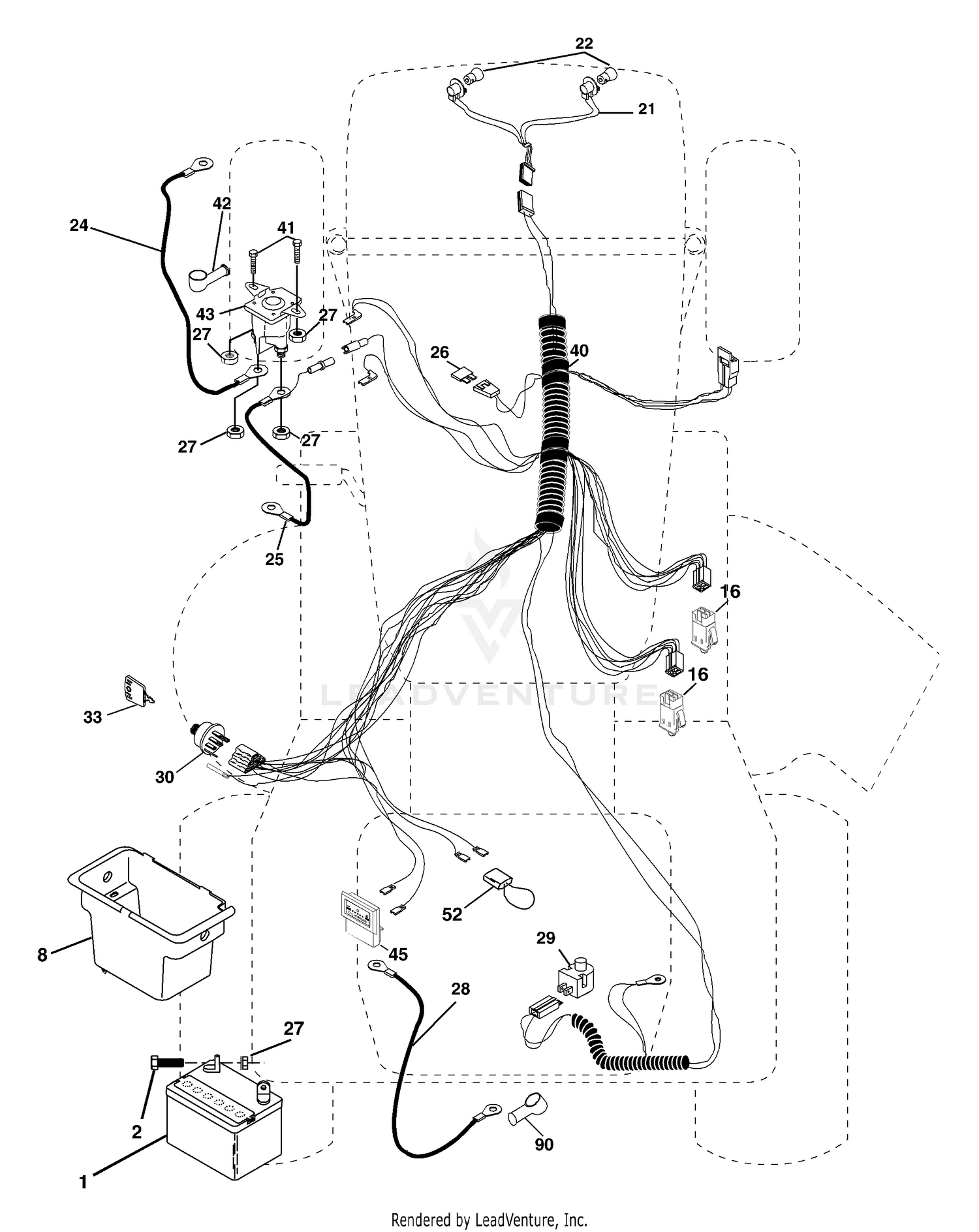

| Ref | Part Number | Description |
|---|
| 1 |
144927 |
Battery Price: Call Us |
| 1 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 2 |
32121-45 |
PIN-SPRING Price: $0.27 |
| 2 |
74760412 |
Bolt Hex Hd 1/4-20unc X 3/4 Price: Call Us |
| 3 |
49-6440-03 |
PEDAL-FORWARD Price: $84.90 |
| 4 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 5 |
75-2970 |
PEDAL-TRACTION Price: $135.64 |
| 6 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 7 |
75-6550 |
DISC-FRICTION Price: $7.96 |
| 8 |
176689 |
Box Battery Fender Price: Call Us |
| 8 |
75-6490 |
LEVER ASM Price: $78.45 |
| 9 |
233-42 |
KNOB Price: $12.88 |
| 11 |
112-5084 |
BRACKET-LEVER This part replaces 75-6510. Price: $61.39 |
| 12 |
75-6580 |
CABLE-PEDAL Price: $34.72 |
| 13 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 14 |
3272-2 |
PIN-COTTER Price: $2.29 |
| 15 |
3290-461 |
WASHER-SPRING Price: $3.89 |
| 16 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 16 |
176138 |
Switch Interlock Price: Call Us |
| 17 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 18 |
256-236 |
BEARING-MOUNT, FLANGE Price: $27.99 |
| 19 |
322-3 |
SCREW-HH Price: $0.79 |
| 20 |
93-8742 |
FOOTPAD-BRAKE Price: $27.95 |
| 21 |
183759 |
Harness Socket Light Price: Call Us |
| 22 |
4152J |
Bulb, Light #1156 Price: Call Us |
| 23 |
63-7880 |
PIN-LATCH, BRAKE Price: $6.04 |
| 24 |
4799J |
Cable Battery Price: Call Us |
| 24 |
63-7733 |
LH BRAKE CABLE ASM Price: $210.39 |
| 25 |
146147 |
Cable Battery 6 Ga Red w/16 wire Price: Call Us |
| 25 |
63-7732 |
RH BRAKE CABLE ASM Price: $210.39 |
| 26 |
175158 |
Fuse Price: Call Us |
| 26 |
3256-69 |
WASHER-FLAT Price: $0.62 |
| 27 |
32121-16 |
PIN-SPRING Price: $0.41 |
| 27 |
73510400 |
Nut Keps Hex 1/4-20 Unc Price: Call Us |
| 28 |
283-58 |
PIN-CLEVIS Price: $3.87 |
| 28 |
4207J |
Cable Ground 6ga 12 black Price: Call Us |
| 29 |
121305X |
Switch Plunger Nc Gray Price: Call Us |
| 29 |
75-1440-03 |
PEDAL-BRAKE, LH Price: $207.74 |
| 30 |
175566 |
Switch Ign Price: Call Us |
| 30 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 31 |
32121-50 |
PIN-SPRING Price: $1.21 |
| 32 |
75-1430 |
RH BRAKE PEDAL ASM Price: $255.51 |
| 33 |
140401 |
Key Ign Molded Generic Price: Call Us |
| 33 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 34 |
75-3270-03 |
HUB-PIVOT, TRACTION Price: $144.73 |
| 35 |
75-1470 |
PIN-PIVOT, BRAKE Price: $45.68 |
| 36 |
75-2170-03 |
TUBE-CONTROL, PUMP Price: $103.73 |
| 37 |
3220-3 |
NUT-HJ Price: $0.28 |
| 38 |
2411-36 |
BEARING-END, ROD Price: $32.13 |
| 39 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 40 |
179720 |
Harness Ign Price: Call Us |
| 40 |
323-9 |
SCREW-HH Price: $1.29 |
| 41 |
71110408 |
Bolt Fin Hex 1/4-20 unc x 1/2 Price: Call Us |
| 42 |
131563 |
Cover Terminal Red Price: Call Us |
| 43 |
178861 |
Solenoid Price: Call Us |
| 45 |
121433X |
Ammeter Rectangular Price: Call Us |
| 52 |
141940 |
Protection Loop Price: Call Us |
