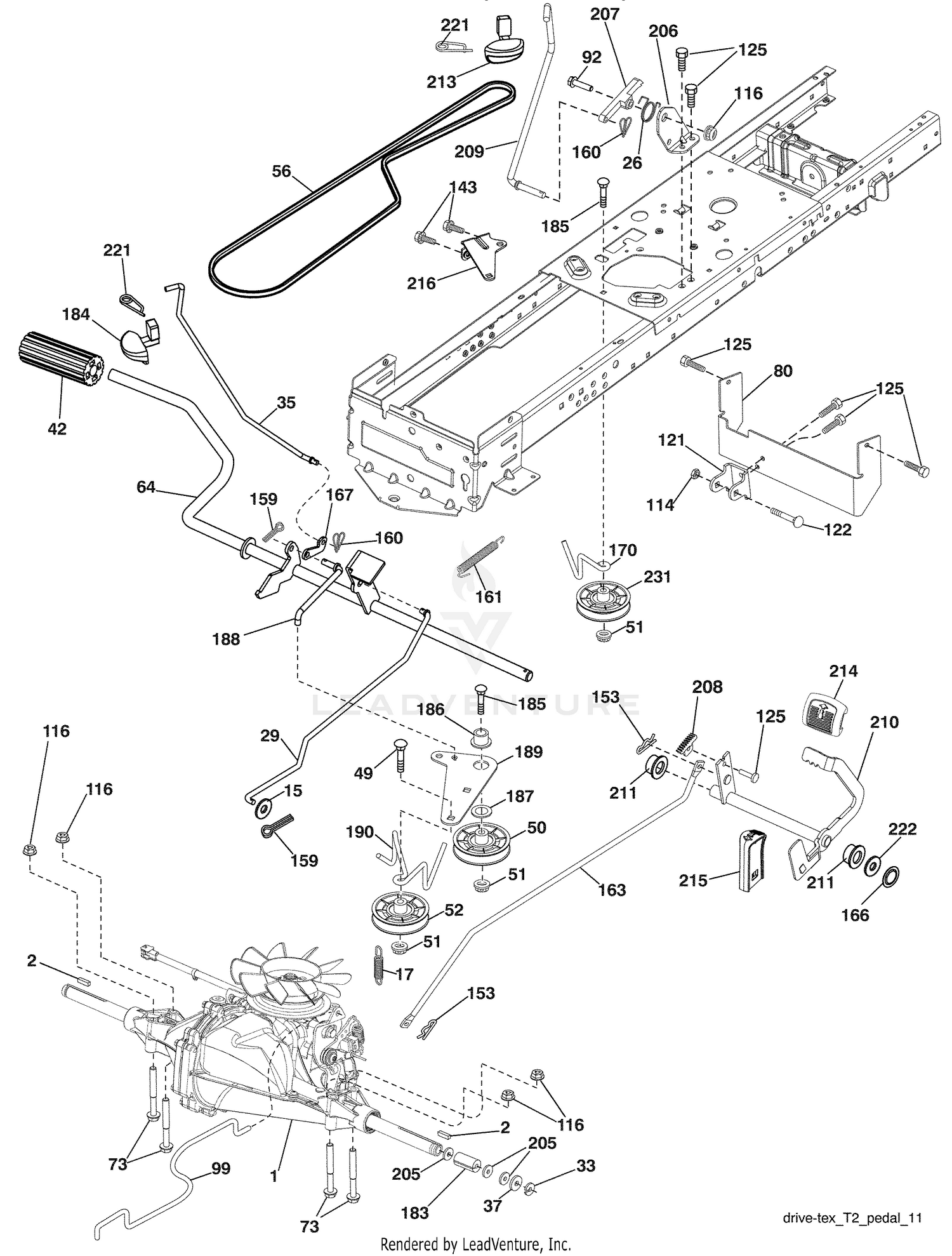

| Ref | Part Number | Description |
|---|
| 1 |
322-3 |
SCREW-HH Price: $0.79 |
| 2 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 2 |
532123583 |
SQUARE KEY Price: $3.99 |
| 3 |
92-4795 |
HOSE - RADIATOR, LOWER Price: $48.91 |
| 4 |
2412-92 |
CLAMP-HOSE Price: $2.44 |
| 5 |
104-5232 |
CLIP-WIRE This part replaces 60-0930. Price: $3.13 |
| 6 |
60-3680 |
HOSE Price: $5.33 |
| 7 |
92-4796 |
HOSE - RADIATOR, UPPER Price: $54.65 |
| 8 |
281-2 |
PLUG-PIPE, SQH Price: $2.09 |
| 9 |
58-5420 |
CAP-PRESSURE Price: $34.59 |
| 10 |
59-8440 |
DECAL-PRESSURE WARNING, RADIATOR Price: $8.90 |
| 11 |
58-5540 |
COOLER-OIL Price: $1,352.93 |
| 12 |
68-7575 |
STRIP-SEALING Price: $4.18 |
| 13 |
92-6062 |
FOAM-SEAL, RADIATOR Price: $30.90 |
| 14 |
92-4753-03 |
STRAP-COOLER, OIL This part replaces 92-4753. Price: $26.43 |
| 15 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 15 |
75-7790 |
HANDLE Price: $28.16 |
| 16 |
47-2550 |
GRIP-HANDLE, BAG Price: $3.86 |
| 17 |
48-7680 |
SCREW-HH Price: $0.61 |
| 17 |
532197296 |
SPRING.BRAKE.HG3000/3500 Price: $5.99 |
| 18 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 19 |
76-2290 |
SPACER Price: $4.14 |
| 20 |
92-4729 |
DISCONTINUED Price: Call Us |
| 21 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 22 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 23 |
3256-71 |
WASHER-FLAT Price: $0.81 |
| 24 |
92-4798 |
FAN SHROUD Price: $206.53 |
| 25 |
92-9245 |
DISCONTINUED Price: Call Us |
| 26 |
2412-42 |
CLAMP-HOSE Price: $2.65 |
| 26 |
532199679 |
SPRING.RETURN.CRUISE Price: $3.99 |
| 27 |
76-8750 |
PLATE-WARNING Price: $9.67 |
| 28 |
3290-271 |
RIVET-POP Price: $0.25 |
| 29 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 29 |
532423239 |
ROD.BRAKE.T2.TEX This part replaces 532408391. Price: $39.99 |
| 30 |
27-7170 |
MOUNTING BAND ASM Price: $48.11 |
| 31 |
27-7160 |
DECAL-INSTALLATION Price: $19.89 |
| 32 |
27-7100 |
AIR CLEANER ASM Price: $323.10 |
| 33 |
48-7430 |
PRECLEANER Price: $50.85 |
| 33 |
812000001 |
E-RING LT Price: $3.99 |
| 34 |
92-6065 |
DISCONTINUED Price: Call Us |
| 35 |
304-46 |
DRAINCOCK Price: $7.55 |
| 35 |
583864502 |
Rods This part replaces 532199591. Price: $6.99 |
| 37 |
323-9 |
SCREW-HH Price: $1.29 |
| 37 |
532121749 |
WASHER Price: $2.99 |
| 38 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 39 |
138-6335 |
RETAINER-BATTERY This part replaces 66-2490. Price: $10.49 |
| 40 |
32148-9 |
NUT-CLINCH Price: $2.65 |
| 41 |
93-1420 |
TRAY-BATTERY Price: $26.64 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 49 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $17.99 |
| 51 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $19.99 |
| 56 |
532125907 |
BELT Price: $34.99 |
| 64 |
532197865 |
SHAFT.ASM.PEDAL.BRK.CNTR Price: $44.99 |
| 73 |
595316601 |
Bolts This part replaces 874490544. Price: $3.99 |
| 80 |
581550701 |
STRAP.TORQUE.T2 This part replaces 532408393. Price: $22.99 |
| 92 |
595305701 |
Screws This part replaces 874760520. Price: $3.99 |
| 99 |
532408418 |
ROD.ASM.BYPASS.SPRING.T2.FS Price: $7.99 |
| 114 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 116 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 121 |
532175611 |
BRACKET STRAP TORQUE Price: $6.99 |
| 122 |
872010520 |
BOLT.5/16-18X2.5 Price: $4.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 143 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 153 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 159 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 160 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 163 |
594007201 |
Rods This part replaces 532413322. Price: $22.99 |
| 166 |
532429164 |
NUT.PUSH.625 This part replaces 532197290. Price: $4.99 |
| 167 |
531152901 |
SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532405257. Price: $2.99 |
| 170 |
532413430 |
KEEPER.CENTER SPAN.1.688 Price: $5.99 |
| 183 |
532156972 |
SPACER, AXLE PVST Price: $5.99 |
| 184 |
532196439 |
HANDLE.PARKING.BRAKE.H (BLK) This part replaces 532403118. Price: $9.99 |
| 185 |
872110622 |
BOLT Price: $3.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $7.99 |
| 187 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG This part replaces 532194323. Price: $4.99 |
| 189 |
531169001 |
SERVICE KIT BELLCRANK This part replaces 532194317. Price: $6.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $5.99 |
| 205 |
532121748 |
WASHER Price: $3.99 |
| 206 |
532448596 |
BRACKET.MOUNT.CRUISE.LATCH This part replaces 532197867. Price: $4.99 |
| 207 |
587031402 |
Latch This part replaces 532197868. Price: $5.99 |
| 208 |
596564101 |
Gears This part replaces 532197869. Price: $4.99 |
| 209 |
596869801 |
Rods This part replaces 532199592. Price: $5.99 |
| 210 |
532400980 |
ROCKER.ASM.PEDAL.CONTR Price: $32.99 |
| 211 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 213 |
532403119 |
KNOB.CONTROL.CRUSIE.HU Price: $8.99 |
| 214 |
532421263 |
PEDAL.FORWARD.PAD.TEX Price: $6.99 |
| 215 |
532401723 |
PEDAL.REVERSE.TEX.GT.4 Price: $12.99 |
| 216 |
532196131 |
BRACKET.PULLEY.IDLER.W/TEX Price: $6.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $3.99 |
| 222 |
879212010 |
WASHER 21/32 X 1-1/4 X 10 GA. Price: $3.99 |
