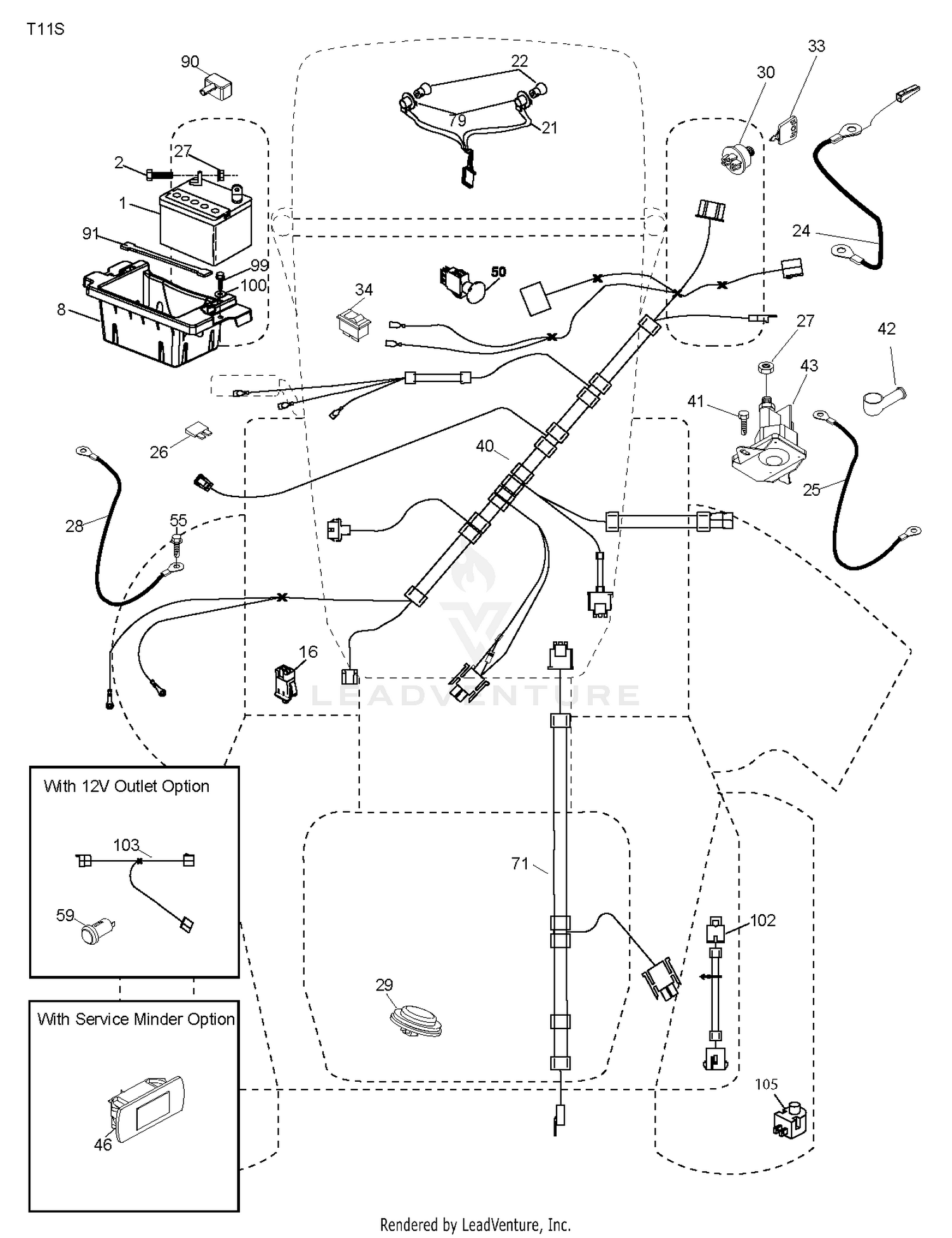

| Ref | Part Number | Description |
|---|
| 1 |
120-3803 |
FRAME ASM Price: $6,155.64 |
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532163465. Price: $149.99 |
| 2 |
110-9041 |
STEP-ALUMINUM Price: $158.64 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
127-2697-01 |
BRACKET-STEP Price: $21.97 |
| 4 |
323-36 |
SCREW-HH Price: $3.05 |
| 5 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 6 |
322-17 |
SCREW-HH Price: $2.62 |
| 7 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 8 |
532186491 |
BOX.BATTERY.MOUNT.FRONT.LT Price: $14.99 |
| 8 |
95-9495 |
CAP Price: $5.02 |
| 9 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 10 |
110-8972 |
HOOK-LATCH Price: $8.25 |
| 11 |
110-9012 |
CAPLUG Price: $3.94 |
| 12 |
110-9013 |
CAPLUG Price: $3.94 |
| 13 |
32104-17 |
SCREW-HWH Price: $0.99 |
| 14 |
147-3550 |
BUMPER ASM This part replaces 110-8951-03. Price: $230.25 |
| 15 |
120-6274 |
MOUNT-ENGINE Price: $30.17 |
| 16 |
2410-42 |
CAP-END Price: $11.62 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 17 |
3231-21 |
SCREW-CARR Price: $0.76 |
| 18 |
3234-29 |
SCREW-HHF Price: $1.84 |
| 19 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 20 |
108-7584-01 |
PLATE-GUIDE, ROD Price: $12.35 |
| 21 |
532400252 |
HARNESS.LIGHT W/4152J BULBS Price: $19.99 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 24 |
585555601 |
CABLE.FRBATT.W/WIRE.8GA.8 This part replaces 532400253. Price: $7.99 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
532145491 |
CABLE GROUND 6 GA 21" 90T BLK Price: $6.99 |
| 29 |
532401545 |
SWITCH.SEAT.DELTA.OPC. Price: $34.99 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $19.99 |
| 33 |
532411935 |
KEY.CHAIN.BLISTER.PACK.GEN.INT Price: $8.99 |
| 34 |
532110712 |
SWITCH LT Price: $7.99 |
| 40 |
532401104 |
HARNESS.IGN.DASH.HUQ/P Price: $59.99 |
| 41 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
582042802 |
Solenoids This part replaces 532192507. Price: $22.99 |
| 46 |
594919101 |
GUAGE.SRVCMNDR.HRMTR. This part replaces 532401763. Price: $19.99 |
| 50 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 532174651. Price: $24.99 |
| 55 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 71 |
532194276 |
HARNESS-CHASSIS SUB Price: $27.99 |
| 79 |
532175242 |
BULB HOLDER ASM. Price: $8.99 |
| 90 |
532435395 |
COVER.TERMINAL.BATTERY Price: $4.99 |
| 91 |
532190270 |
STRAP.BATTERY.MOUNT.FRONT(2 2) Price: $7.99 |
| 99 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 100 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 102 |
532404454 |
HARNESS PIGTAIL PCH TEX ROS Price: $14.99 |
| 105 |
532407568 |
REVERSE SWITCH Price: $12.99 |
