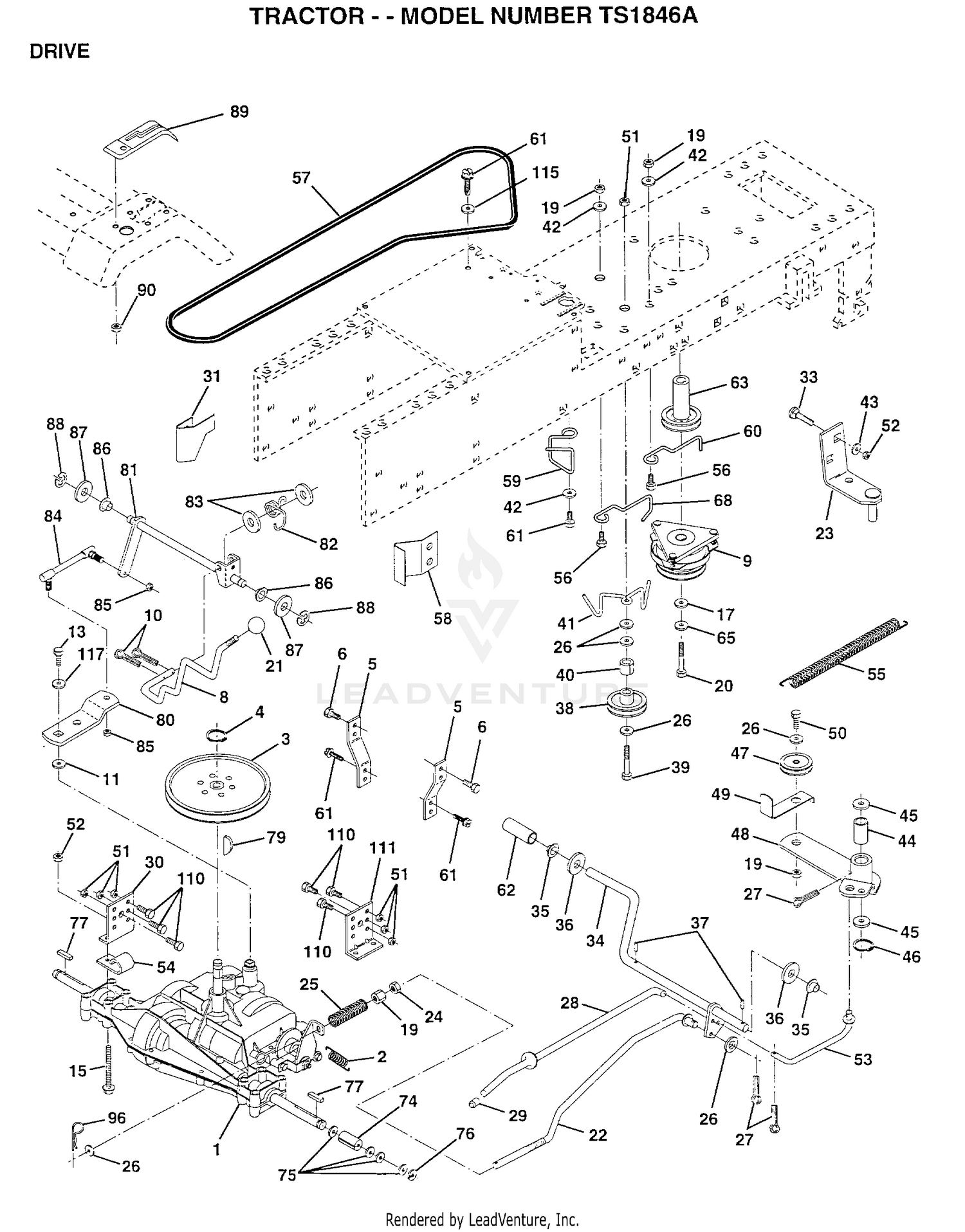

| Ref | Part Number | Description |
|---|
| 1 |
138788 |
TRANSAX. PRLES. Price: Call Us |
| 1 |
323-12 |
SCREW-HH Price: $1.14 |
| 2 |
110422X |
SUB= 146682 Price: Call Us |
| 2 |
83-1040 |
WASHER-FLAT Price: $2.31 |
| 3 |
121327X |
PULLEY TRANSAXLE Price: Call Us |
| 3 |
83-1050 |
SPACER Price: $3.26 |
| 4 |
108-6539 |
MANIFOLD-EXHAUST This part replaces 83-1080. Price: $249.13 |
| 4 |
12000004 |
RING Price: Call Us |
| 5 |
123787X |
STRAP TORQUE Price: Call Us |
| 5 |
83-2310 |
SHIELD-REGULATOR Price: $14.57 |
| 6 |
17490512 |
SCREW Price: Call Us |
| 6 |
2112-11 |
CLAMP-MUFFLER Price: $7.37 |
| 7 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 8 |
106-4619 |
ENGINE KIT 18HP VANGUARD GAS This part replaces 100-6424. Price: $3,846.49 |
| 8 |
123781X |
SUB= 141002 Price: Call Us |
| 9 |
137140 |
SUB= 142600 Price: Call Us |
| 9 |
98-0616 |
MUFFLER Price: $136.88 |
| 10 |
112-0220 |
GRILLE-MUFFLER This part replaces 83-1400-03. Price: $18.94 |
| 10 |
76020416 |
PIN COTTER 1/8 Price: Call Us |
| 11 |
105701X |
WASH-SHFT PLT LT Price: Call Us |
| 12 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 13 |
74550412 |
BOLT.1/4-28.W/PAT Price: Call Us |
| 13 |
83-1630-03 |
BRACKET-SUPPORT, MUFFLER Price: $129.03 |
| 14 |
322-8 |
SCREW-HH Price: $1.26 |
| 15 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 15 |
74490544 |
BOLT.HX.FLG.5/16 Price: Call Us |
| 16 |
32128-20 |
NUT-HF Price: $0.99 |
| 17 |
126197X |
WASHER Price: Call Us |
| 17 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 18 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 19 |
73800600 |
NUT Price: Call Us |
| 19 |
83-1060-0P |
PUMP MOUNT - MACH. *B This part replaces 83-1060-03. Price: $249.55 |
| 20 |
150280 |
BOLT.7/16-20X4.25 Price: Call Us |
| 20 |
3274-7 |
SCREW-HSH Price: $0.91 |
| 21 |
121274X |
KNOB.DUCKHEAD.1/2 Price: Call Us |
| 21 |
85-8120-0P |
ENGINE MOUNT PLATE *B This part replaces 85-8120-03. Price: $114.20 |
| 22 |
145340 |
ROD.ASM.BK.44.MWR Price: Call Us |
| 22 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 23 |
137141 |
BRACKET.ASM.MTG Price: Call Us |
| 23 |
324-7 |
SCREW-HH Price: $1.79 |
| 24 |
121-9076 |
MOUNT-ENGINE This part replaces 83-1030. Price: $37.76 |
| 24 |
73350600 |
NUT Price: Call Us |
| 25 |
322-3 |
SCREW-HH Price: $0.79 |
| 26 |
19131316 |
WASHER Price: Call Us |
| 26 |
93-8069 |
DECAL-SURFACE, HOT Price: $10.04 |
| 27 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 27 |
76020412 |
COTTER PIN Price: Call Us |
| 28 |
145204 |
ROD.BRAKE.PARK.LT Price: Call Us |
| 29 |
71673 |
PLUNGER CAP T Price: Call Us |
| 30 |
123780X |
BRKT TRANS LH Price: Call Us |
| 30 |
43-2830 |
NUT-HEX Price: $0.39 |
| 31 |
123791X |
KEEPER BELT LH Price: Call Us |
| 31 |
43-5930 |
WASHER-LOCK, SPRING Price: $0.75 |
| 32 |
33113-016 |
SCREW-HH Price: $0.34 |
| 33 |
2412-81 |
CLAMP-R Price: $3.39 |
| 33 |
72140506 |
BOLT Price: Call Us |
| 34 |
151128 |
SHAFT FOOT PEDAL Price: Call Us |
| 35 |
120183X |
NYLON BEARING Price: Call Us |
| 36 |
19211616 |
WASHER LT Price: Call Us |
| 37 |
1572H |
SUB= 2882J Price: Call Us |
| 38 |
123674X |
PULLEY.IDLER.FLAT Price: Call Us |
| 39 |
74760644 |
BOLT Price: Call Us |
| 40 |
4470J |
SPACER T Price: Call Us |
| 41 |
153399 |
KEEPER BELT Price: Call Us |
| 42 |
19131312 |
WASHER Price: Call Us |
| 43 |
19111012 |
WASHER T Price: Call Us |
| 45 |
110812X |
WASHER LT Price: Call Us |
| 46 |
12000039 |
KLIP RING Price: Call Us |
| 47 |
127783 |
SUB= 139245 Price: Call Us |
| 48 |
123789X |
ARM IDLER Price: Call Us |
| 49 |
123205X |
RETAIN BELT Price: Call Us |
| 50 |
74760624 |
SUB= 74930624 Price: Call Us |
| 51 |
73680600 |
SUB= 73690600 Price: Call Us |
| 52 |
73680500 |
SUB= 73690500 Price: Call Us |
| 56 |
74760620 |
Bolt Fin Flex 3/8-16unc X 1-1/4 Price: Call Us |
| 57 |
123796X |
BELT.GRDRV.94.75 Price: Call Us |
| 59 |
140312 |
KEEPER BELT CNTSP Price: Call Us |
| 60 |
121218X |
KEEPER BELT ENGLH Price: Call Us |
| 61 |
17490612 |
SCREW Price: Call Us |
| 62 |
8883R |
PEDAL COVER T Price: Call Us |
| 63 |
136906 |
PULLEY ENGINE Price: Call Us |
| 65 |
10040700 |
LOCKWASHER Price: Call Us |
| 74 |
108097X |
SPACER HYT Price: Call Us |
| 75 |
123800X |
WASHER Price: Call Us |
| 76 |
12000053 |
E RING HYT Price: Call Us |
| 77 |
9396E |
SQ KEY STD Price: Call Us |
| 79 |
2228M |
SUB= 2228M1 Price: Call Us |
| 83 |
19171216 |
WASHER Price: Call Us |
| 85 |
150360 |
NUT.CNT.LOCK.1/4 Price: Call Us |
| 86 |
71208 |
BUSHING Price: Call Us |
| 87 |
19212016 |
WASHER D Price: Call Us |
| 88 |
12000008 |
KLIP RING Price: Call Us |
| 89 |
139992 |
CONSOLE SHIFTER Price: Call Us |
| 90 |
124346X |
NUT Price: Call Us |
| 96 |
4497H |
RETAINER M Price: Call Us |
| 110 |
74760612 |
SUB= 74780612 Price: Call Us |
| 111 |
123776X |
BRKT TRANS RH Price: Call Us |
| 115 |
19132203 |
WASHER GT Price: Call Us |
