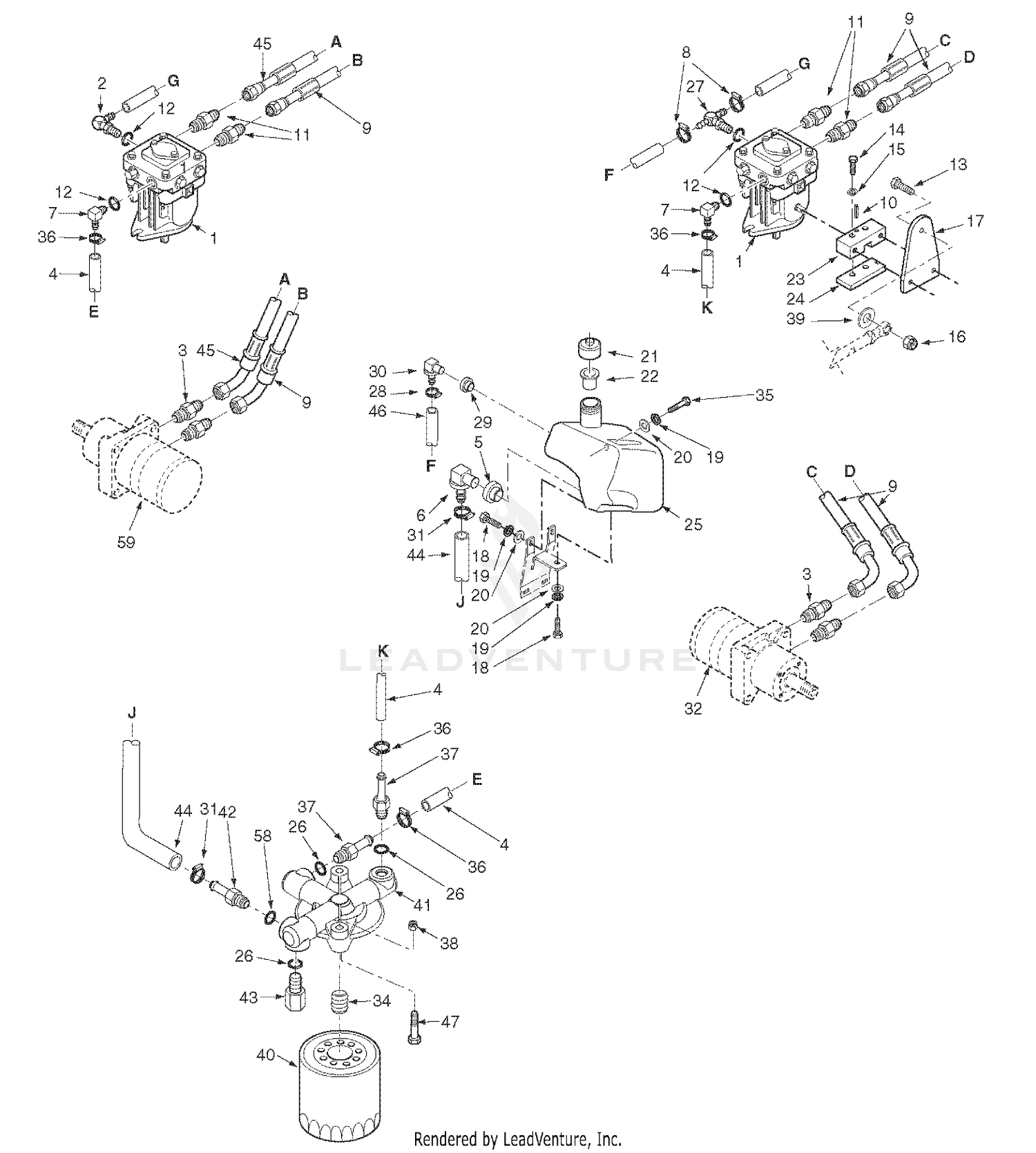

| Ref | Part Number | Description |
|---|
| 2 |
482266-01 |
Elbow, 90 Degree 9/16" O-Ring x 3/8" Hose Price: Call Us |
| 3 |
48572-02 |
Fitting, 1/2" JIC x 5/8" O-Ring Price: Call Us |
| 5 |
482573 |
Bushing Price: Call Us |
| 6 |
482574 |
Fitting Price: Call Us |
| 7 |
482266-01 |
Elbow, 90 Degree 9/16" O-Ring x 3/8" Hose Price: Call Us |
| 8 |
48136-13 |
Hose Clamp, .69" Dia. Price: Call Us |
| 9 |
484451 |
HOSE ASSY, STC - 18.25 This part replaces 482548. Price: Call Us |
| 10 |
04060-06 |
Roll Pin Price: Call Us |
| 11 |
48572-04 |
Fitting, 1/2" JIC x 1/2" O-Ring Price: Call Us |
| 12 |
48603-06 |
O-Ring Price: Call Us |
| 13 |
04001-20 |
Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV Price: Call Us |
| 14 |
04017-07 |
Bolt, Hex Head 1/4-20 x 1-1/4" Price: Call Us |
| 15 |
04030-02 |
Lockwasher Price: Call Us |
| 16 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 17 |
422969 |
Control Lever Price: Call Us |
| 18 |
04001-08 |
Bolt, Hex Head 5/16-18 x 3/4" Price: Call Us |
| 19 |
04030-03 |
Lockwasher, 5/16" Price: Call Us |
| 20 |
04040-15 |
Flatwasher, 5/16-.375 x .875 x .083 Price: Call Us |
| 21 |
481164 |
Cap, Hydraulic Tank Price: Call Us |
| 22 |
481507 |
Insert, Filler Neck Price: Call Us |
| 23 |
48829 |
Control Block Price: Call Us |
| 24 |
421203 |
Clamp Plate Price: Call Us |
| 25 |
461479 |
Hydraulic Tank Assembly w/Fittings Price: Call Us |
| 26 |
48603-06 |
O-Ring, 9/16" Price: Call Us |
| 27 |
482277 |
Tee Fitting, O-Ring to Barb Price: Call Us |
| 28 |
48136-13 |
Clamp, .69" Max. / .25" Min. Dia. Price: Call Us |
| 29 |
482571 |
Bushing Price: Call Us |
| 30 |
482572 |
Elbow, 0.38" Hose Price: Call Us |
| 31 |
48136-13 |
Clamp Price: Call Us |
| 32 |
482639 |
Wheel Motor, Parker Price: Call Us |
| 33 |
48603-02 |
O-Ring, 3/4" Price: Call Us |
| 34 |
482802 |
Nipple, Oil Filter 1.0-12 UNF-2A x 1-1/4" Price: Call Us |
| 35 |
04001-11 |
Bolt, Hex Head 5/16-18 x 1-1/2" Price: Call Us |
| 36 |
48136-13 |
Clamp, .69" Max. / .25" Min. Dia. Price: Call Us |
| 37 |
482800-02 |
Fitting, 9/16" O-Ring x 3/8" Hose Price: Call Us |
| 38 |
04019-03 |
Nut, Serr. Flange 5/16-18 Price: Call Us |
| 39 |
04041-07 |
Flatwasher, 3/8-.391 x .938 x .105" Price: Call Us |
| 40 |
48462-01 |
Oil Filter Price: Call Us |
| 41 |
482764 |
OIL FILTER ASSY, STC This part replaces 482798. Price: Call Us |
| 42 |
482800-01 |
Fitting, 3/4" O-Ring x 3/8" Hose Price: Call Us |
| 43 |
48604-03 |
Plug, 9/16-18 O-Ring Price: Call Us |
| 44 |
482557 |
Hose, Filter Inlet Price: Call Us |
| 45 |
484452 |
Hose Assembly This part replaces 482605. Price: Call Us |
| 46 |
48811 |
Hose, 3/8" Pushlock 15" Long Price: Call Us |
