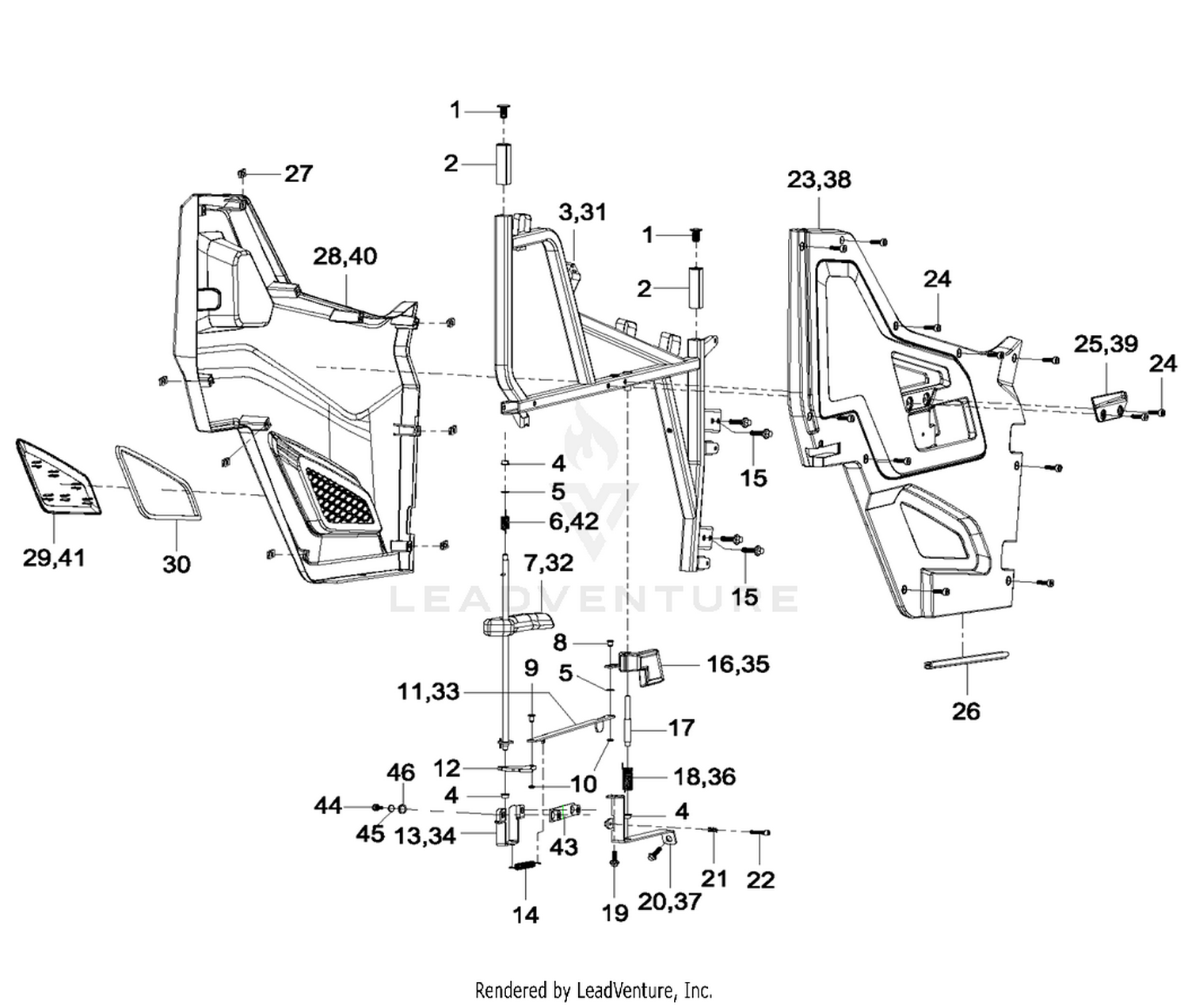

| Ref | Part Number | Description |
|---|
| 1 |
503-01782 |
PLUG - DOOR Not Available Price: |
| 2 |
503-01783B |
UPPER DOOR SEAL Price: $88.71 |
| 3 |
503-01784 |
DOOR FRAME - LEFT LOWER Price: $221.89 |
| 4 |
503-01785 |
BUSHING PLASTIC 8X11 Price: $4.06 |
| 5 |
503-01411 |
WASHER 8 Price: $4.06 |
| 6 |
503-01786 |
RETURN SPRING Price: $4.06 |
| 7 |
503-01787 |
OUTSIDE DOOR HANDLE KIT - LEFT Price: $14.14 |
| 8 |
503-01788 |
PIN - SHOULDER 8X11 Price: $4.06 |
| 9 |
503-01789 |
PIN - SHOULDER 8X14 Price: $4.06 |
| 10 |
503-01342A |
CLIP Price: $4.06 |
| 11 |
503-01790 |
DOOR LOCK ROD - LEFT Not Available Price: |
| 12 |
503-01791 |
DOOR LOCK KIT Not Available Price: |
| 13 |
503-01792 |
INSIDE DOOR LOCK LEVER - LEFT Not Available Price: |
| 14 |
503-02234 |
EXTENTION SPRING Price: $2.26 |
| 15 |
503-00042 |
HEXAGON FLANGE BOLT M8X20 Price: $6.38 |
| 16 |
503-01794A |
INSIDE DOOR HANDLE KIT - LEFT Price: $3.29 |
| 17 |
503-01795 |
PIN - SHOULDER 8X104-12X47 Price: $9.41 |
| 18 |
503-01796 |
SPRING - TORSION Price: $3.94 |
| 19 |
503-00011 |
HEXAGON FLANGE BOLT M6X16 Price: $5.48 |
| 20 |
503-01797 |
INSIDE DOOR LOCK LEVER - LEFT Not Available Price: |
| 21 |
503-02234 |
EXTENTION SPRING Price: $2.26 |
| 22 |
503-01799 |
HEX HEAD CAP SCREW M6X40 Not Available Price: |
| 23 |
503-01800A |
DOOR PROTECTOR - LEFT INSIDE I Price: $140.75 |
| 24 |
503-00129 |
SOCKET HEX FLAT HEAD BOLT M6X16 Price: $5.36 |
| 25 |
503-01801 |
DOOR PULL - LEFT Price: $4.06 |
| 26 |
503-02292 |
DOOR SEAL Price: $26.64 |
| 27 |
503-01702 |
CLAMP NUT M6X6 Price: $6.24 |
| 28 |
503-01803A |
DOOR PROTECTOR - LEFT OUTSIDE I Price: $140.75 |
| 29 |
503-01804 |
DOOR BREATHER COVER - LEFT (RED) Price: $7.40 |
| 29 |
503-01941A |
COVER DOOR BREATHER (LH) (YELLOW) Price: $7.40 |
| 29 |
503-01942 |
COVER DOOR BREATHER LH BLUE Not Available Price: |
| 29 |
503-01943 |
COVER DOOR BREATHER LH BLACK Price: $6.68 |
| 29 |
503-01944 |
COVER DOOR BREATHER RH CAMO Price: $13.21 |
| 30 |
503-01805 |
DOOR SEAL Price: $70.20 |
| 31 |
503-01806 |
DOOR FRAME- RIGHT KIT Not Available Price: |
| 32 |
503-01807 |
OUTSIDE DOOR HANDLE KIT - RIGHT Price: $14.14 |
| 33 |
503-01808 |
DOOR LOCK ROD - RIGHT Price: $8.29 |
| 34 |
503-01809 |
INSIDE DOOR LOCK LEVER - RIGHT Price: $24.96 |
| 35 |
503-01810A |
INSIDE DOOR HANDLE KIT - RIGHT Price: $3.36 |
| 36 |
503-01811 |
SPRING - TORSION Not Available Price: |
| 37 |
503-01812 |
INSIDE DOOR LOCK - RIGHT Price: $24.41 |
| 38 |
503-01813A |
DOOR PROTECTOR - RIGHT INSIDE I Price: $118.56 |
| 39 |
503-01814 |
DOOR PULL - RIGHT Price: $4.06 |
| 40 |
503-01815A |
DOOR PROTECTOR - RIGHT OUTSIDE I Price: $138.91 |
| 41 |
503-01816 |
DOOR BREATHER COVER - RIGHT (RED) Price: $7.40 |
| 41 |
503-01945A |
COVER DOOR BREATHER (RH) (YELLOW) Price: $7.40 |
| 41 |
503-01946 |
COVER DOOR BREATHER RH BLUE Not Available Price: |
| 41 |
503-01947 |
COVER DOOR BREATHER RH BLACK Price: $6.68 |
| 41 |
503-01948 |
COVER DOOR BREATHER LH CAMO Price: $14.19 |
| 42 |
503-01817 |
RETURN SPRING Price: $4.06 |
| 43 |
503-02010 |
SEAT MOUNTING PLATE LOCK Price: $9.17 |
| 44 |
503-00042 |
HEXAGON FLANGE BOLT M8X20 Price: $6.38 |
| 45 |
503-00005 |
SPRING WASHER-8 Price: $5.36 |
