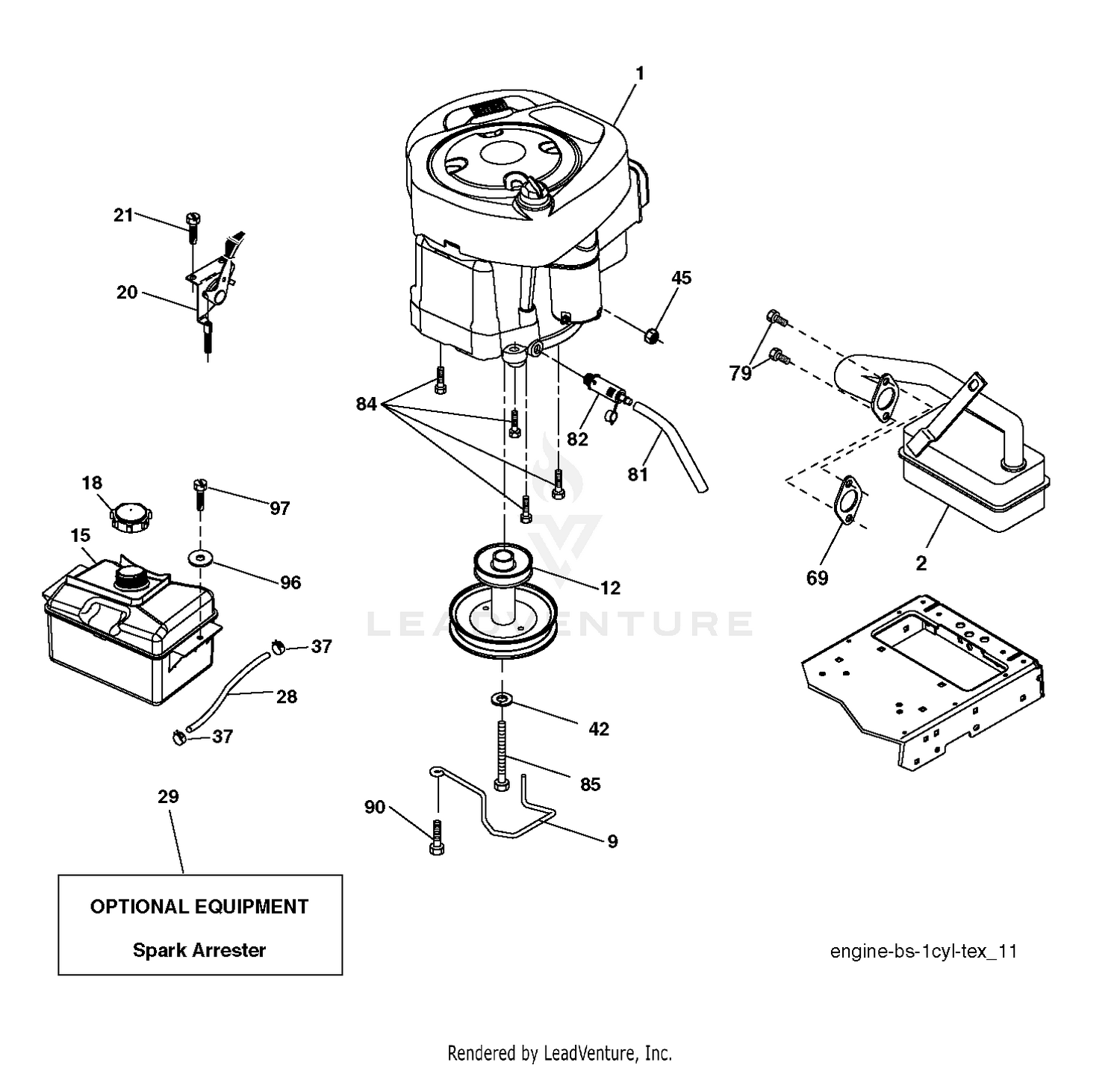

| Ref | Part Number | Description |
|---|
| 1 |
323-4 |
SCREW-HH Price: $1.02 |
| 2 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 2 |
532179758 |
MUFFLER.B&S.MODEL.21.11HP.OHV Price: $69.99 |
| 3 |
323-5 |
SCREW-HH Price: $0.41 |
| 4 |
3217-7 |
NUT-HEX Price: $0.28 |
| 5 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 6 |
13-6460 |
WHEEL-CASTER Price: $238.80 |
| 7 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 8 |
13-6450-01 |
CASTER This part replaces 13-6450. Price: $242.02 |
| 9 |
325-13 |
SCREW-HH Price: $3.57 |
| 9 |
532194319 |
KEEPER.BELT.ENGINE.3.25 (3 2) Price: $11.99 |
| 10 |
13-5680 |
JACK This part replaces 13-6750. Price: $396.42 |
| 11 |
13-3510 |
BEARING-THRUST Price: $25.53 |
| 12 |
13-3610 |
SLEEVE-FELT Price: $9.36 |
| 12 |
532140186 |
PULLEY.ENG.CL.MECH.SLVR.LT/YT Price: $99.99 |
| 13 |
13-5680 |
JACK Price: $396.42 |
| 14 |
13-6730 |
RIVET Price: $0.25 |
| 15 |
13-6740 |
HANDLE Price: $27.49 |
| 15 |
581289901 |
FUEL.TANK.ASM.NON-EPA This part replaces 532407545. Price: $44.99 |
| 16 |
13-3490 |
SLEEVE-HANDLE Price: $23.34 |
| 18 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532197725. Price: $22.99 |
| 20 |
532176636 |
CONTROL.TH/CK.C.BLACK This part replaces 532183897. Price: $27.99 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 28 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 69 |
532272293 |
GASKET.ENG.1.313 ID.TIN PLATED This part replaces 532165291. Price: $8.99 |
| 79 |
596134201 |
Screws This part replaces 532192334. Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN This part replaces 532181654. Price: $14.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 96 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 97 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
