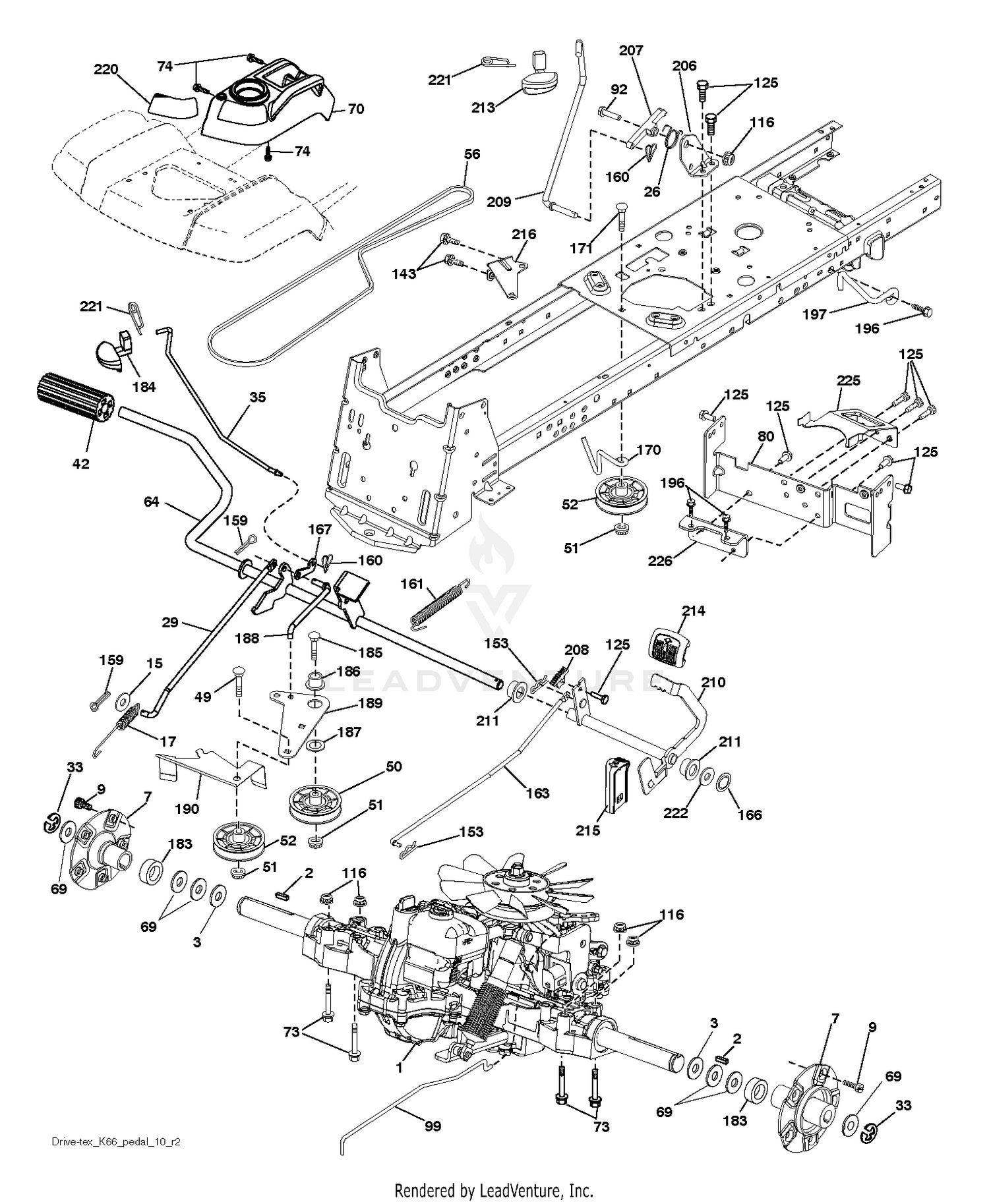

| Ref | Part Number | Description |
|---|
| 1 |
18-2970 |
CLIP-FUEL LINE Price: $8.67 |
| 2 |
32144-41 |
SCREW-TAPTITE Price: $4.79 |
| 2 |
532007070 |
KEY 1/4 X 2.5 Price: $4.99 |
| 3 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 3 |
532007563 |
WASHER T Price: $6.99 |
| 4 |
52-4360 |
DISCONTINUED Price: Call Us |
| 5 |
323-6 |
SCREW-HH Price: $0.66 |
| 6 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 7 |
32105-8 |
SCREW-SHH Price: $1.99 |
| 7 |
531149201 |
SERVICE KIT HUB.ASM HUB.ASM.WH This part replaces 532199837. Price: $39.99 |
| 8 |
62-7770 |
KEY-IGNITION Price: $4.39 |
| 9 |
52-3890 |
DISCONTINUED Price: Call Us |
| 9 |
596218701 |
Bolts This part replaces 532140080. Price: $2.99 |
| 10 |
52-4100 |
DISCONTINUED Price: Call Us |
| 11 |
2812-4 |
REDUCER-PIPE Price: $9.67 |
| 12 |
353-880 |
DISCONTINUED Price: Call Us |
| 13 |
2811-10 |
ELBOW-STREET, 90 DEG Price: $11.68 |
| 14 |
52-4290 |
STRAP-BATTERY BOX Price: $31.67 |
| 15 |
52-4320 |
DISCONTINUED Price: Call Us |
| 15 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 16 |
52-4310 |
DISCONTINUED Price: Call Us |
| 17 |
52-3900 |
DISCONTINUED Price: Call Us |
| 17 |
532401072 |
SPRING.BRAKE.K46 Price: $6.99 |
| 18 |
32153-3 |
NUT-HEX, SIDE DEFORM Price: $5.59 |
| 19 |
52-4410 |
DISCONTINUED Price: Call Us |
| 20 |
52-3810 |
DISCONTINUED Price: Call Us |
| 21 |
52-4330 |
BOX HOLD DOWN *R Price: $103.57 |
| 22 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 23 |
322-3 |
SCREW-HH Price: $0.79 |
| 24 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 25 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 26 |
322-6 |
SCREW-HH Price: $0.45 |
| 26 |
532199679 |
SPRING.RETURN.CRUISE Price: $3.99 |
| 27 |
12-8140 |
KEY SWITCH Price: $39.86 |
| 28 |
3219-14 |
NUT-HEX Price: $0.25 |
| 29 |
3253-2 |
WASHER-LOCK Price: $0.25 |
| 29 |
532407245 |
ROD.BRAKE.K66 Price: $14.99 |
| 30 |
52-3860 |
DISCONTINUED Price: Call Us |
| 31 |
3296-12 |
NUT-LOCK, NI Price: $1.29 |
| 32 |
38-0430 |
SWITCH Price: $54.52 |
| 33 |
40-7420 |
DISCONTINUED Price: Call Us |
| 33 |
812000053 |
E RING HYT Price: $3.99 |
| 34 |
353-704 |
DISCONTINUED Price: Call Us |
| 35 |
38-3260 |
DISCONTINUED Price: Call Us |
| 35 |
583864502 |
Rods This part replaces 583864501. Price: $6.99 |
| 36 |
237-7 |
O-RING Price: $8.82 |
| 37 |
53-3850 |
DISCONTINUED Price: Call Us |
| 38 |
323-39 |
SCREW-HH This part replaces 323-21. Price: $1.60 |
| 39 |
52-4470 |
DISCONTINUED Price: Call Us |
| 40 |
52-4350 |
SUPPORT-SW BAIL *R Price: $67.14 |
| 41 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 42 |
321-3 |
SCREW-HH Price: $0.28 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 43 |
3-8664 |
WASHER-THRUST Price: $5.69 |
| 44 |
52-4340 |
PIVOT SWITCH Price: $50.84 |
| 45 |
5-4460 |
WASHER-PIVOT This part replaces 5-1350. Price: $6.19 |
| 46 |
2412-85 |
DISCONTINUED Price: Call Us |
| 47 |
218-331 |
BATTERY BOOT Price: $9.89 |
| 48 |
44-8520 |
DISCONTINUED Price: Call Us |
| 49 |
2412-84 |
DISCONTINUED Price: Call Us |
| 49 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 50 |
52-4370 |
DISCONTINUED Price: Call Us |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $17.99 |
| 51 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $19.99 |
| 56 |
532125907 |
BELT Price: $34.99 |
| 64 |
532197865 |
SHAFT.ASM.PEDAL.BRK.CNTR Price: $44.99 |
| 69 |
532123800 |
WASHER Price: $3.99 |
| 70 |
532439661 |
CONSOLE.ASM.RH.GT.FC.HUSQ Price: $79.99 |
| 73 |
595316601 |
Bolts This part replaces 874490544. Price: $3.99 |
| 74 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 80 |
589333402 |
STRAP.PNT.TORQUE.K66.EDIP This part replaces 532407182. Price: $22.99 |
| 92 |
595305701 |
Screws This part replaces 874760520. Price: $3.99 |
| 99 |
532415744 |
ROD.SPRING.BYPASS.K66.GT.Z Price: $7.99 |
| 116 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 143 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 153 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 159 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 160 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 163 |
532407246 |
ROD.PEDAL.CONTROL Price: $37.99 |
| 166 |
532429164 |
NUT.PUSH.625 Price: $4.99 |
| 167 |
531152901 |
SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532405257. Price: $2.99 |
| 170 |
532194322 |
KEEPER.V-IDLER.CENTER. Price: $5.99 |
| 171 |
596136301 |
Bolts This part replaces 872110616. Price: $2.99 |
| 183 |
532197357 |
SPACER.AXLE.HG.TEX Price: $5.99 |
| 184 |
532196439 |
HANDLE.PARKING.BRAKE.H (BLK) This part replaces 532441455. Price: $9.99 |
| 185 |
872110622 |
BOLT Price: $3.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $7.99 |
| 187 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG This part replaces 532194323. Price: $4.99 |
| 189 |
531169001 |
SERVICE KIT BELLCRANK This part replaces 532194317. Price: $6.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $5.99 |
| 196 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 197 |
532199769 |
BRKT.ANIT-ROTATION.CLUTCH Price: $6.99 |
| 207 |
587031402 |
Latch This part replaces 532197868. Price: $5.99 |
| 208 |
596564101 |
Gears This part replaces 532197869. Price: $4.99 |
| 209 |
596869801 |
Rods This part replaces 532199592. Price: $5.99 |
| 210 |
532197860 |
ROCKER.ASM.PEDAL.CONTR Price: $44.99 |
| 211 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 213 |
532403119 |
KNOB.CONTROL.CRUSIE.HU Price: $8.99 |
| 214 |
532421263 |
PEDAL.FORWARD.PAD.TEX Price: $6.99 |
| 215 |
532401723 |
PEDAL.REVERSE.TEX.GT.4 Price: $12.99 |
| 216 |
532196131 |
BRACKET.PULLEY.IDLER.W/TEX Price: $6.99 |
| 220 |
532198908 |
REFLECTOR.RH.TEX GT Price: $14.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $3.99 |
| 222 |
879212010 |
WASHER 21/32 X 1-1/4 X 10 GA. Price: $3.99 |
| 225 |
532407311 |
KEEPER.BELT.TRANSAXLE.K66 Price: $11.99 |
| 226 |
532407109 |
BRACKET.MOUNT.TORQUE.K66.TG Price: $8.99 |
