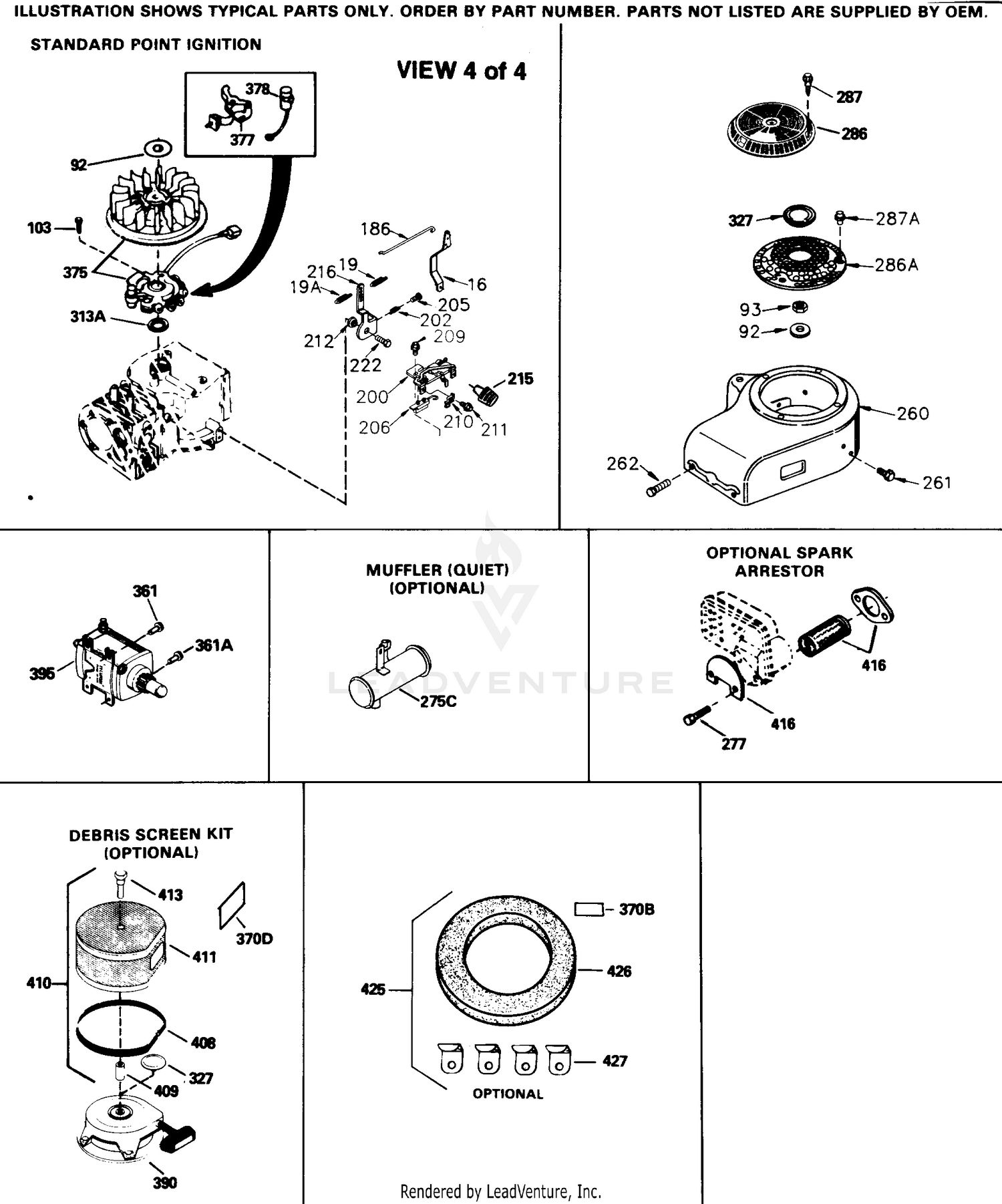

Engine Parts List #4

Engine Parts List #4

Parts (28)

RefPart NumberDescription
16 36494 GOV LEVER Price: $2.62
19A 36495 EXT SPRING Price: $1.26
28 30322 NUT Price: $1.22
62 650760 SCREW Price: $1.17
66 650990 SCREW Price: $2.80
92 650880 WASHER Price: $1.20
93 650881 NUT Price: $1.20
103 651007 SCREW This part replaces 650814. Price: $1.17
186 33860 GOV LINK Price: $1.26
200 36360 CONTROL ASSY This part replaces 35956. Price: $20.00
203 36482 COMP SPRING Price: $2.80
204 651019 SCREW This part replaces 650777. Price: $1.22
209 650902 SCREW Price: $1.20
210 27793 CLIP Price: $1.26
211 28942 SCREW Price: $0.88
234 650825 NUT Price: $1.25
238 650834 SCREW Price: $1.17
245A 35404 AIR CLEANER Price: $2.80
260 33635C BLOWER HSG Price: $103.31
261 650788 SCREW Price: $1.25
262 29747C SCREW/LOCKWASHER ASSEMBLY This part replaces 29747B. Price: $1.26
277 650729 SCREW Price: $1.25
286 35446 SCREEN Price: $5.21
287 29752 NUT Price: $1.26
315 611104 ALT COIL Price: $104.37
327 35392 STARTER PLUG Price: $1.22
361 650990 SCREW Price: $2.80
390 590788 STARTER This part replaces 590671. Price: $47.08
