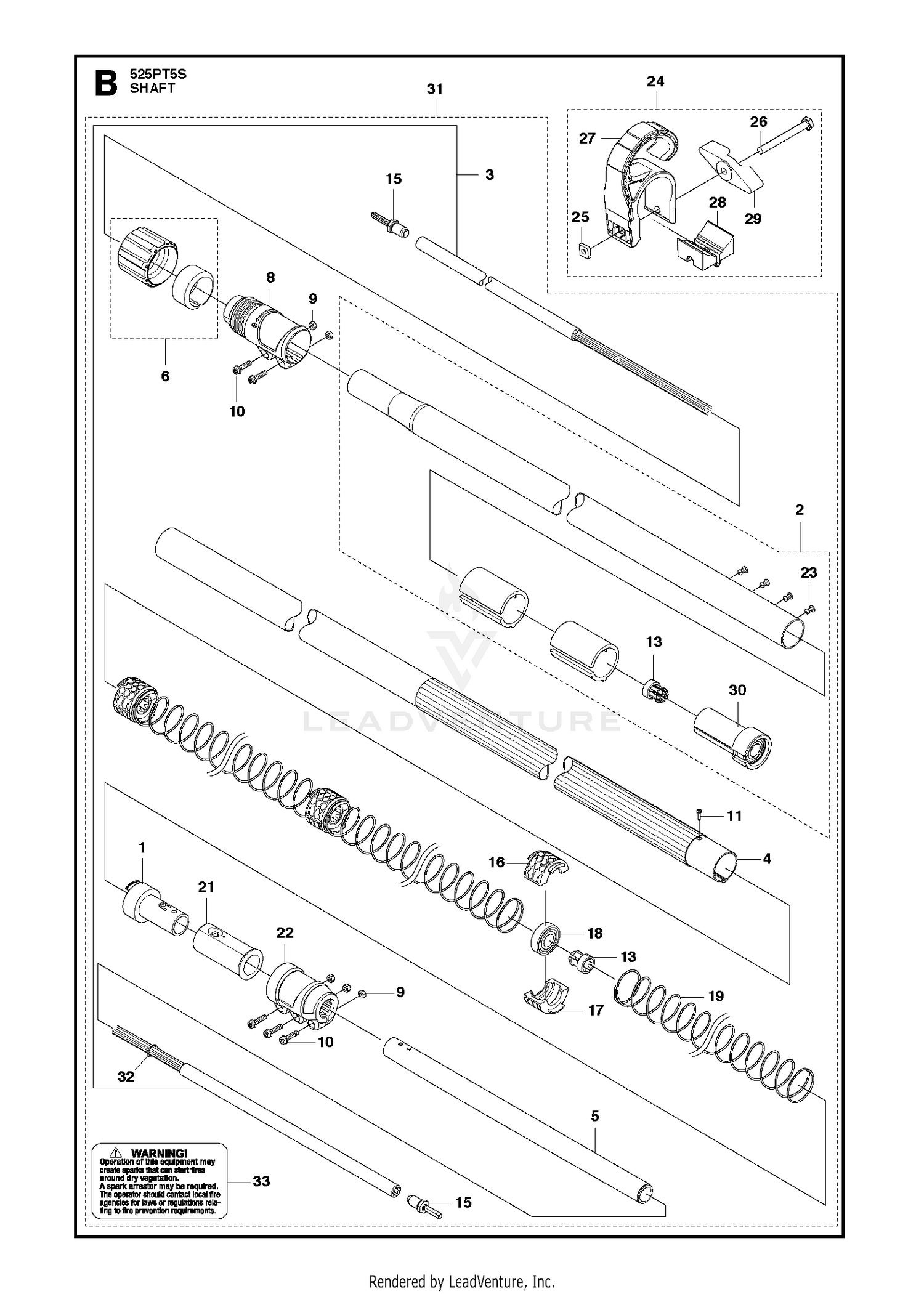

SHAFT 2
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 576926001 | BEARING SLEEVE Price: $22.99 |
| 2 | 576925802 | TUBE UPPER ASSY 525 Price: $79.99 |
| 3 | 576925602 | DRIVE SHAFT ASSY Price: $69.99 |
| 4 | 576925501 | FRAME TUBE Price: $99.99 |
| 5 | 576925702 | TUBE Price: $49.99 |
| 6 | 590940201 | RING KIT (RING AND NUT) 525PT5 Price: $11.99 |
| 8 | 597194301 | CLAMPING SLEEVE Price: $11.99 |
| 9 | 731231401 | NUT Price: $1.99 |
| 10 | 525755102 | SCREW Price: $2.99 |
| 11 | 545227101 | SCREW 6-19X.437 This part replaces 530016064. Price: $2.99 |
| 13 | 537094501 | SLIDING SHOE Price: $6.99 |
| 15 | 574618902 | ADAPTER Price: $14.99 |
| 16 | 510097301 | BEARING HOUSING Price: $4.99 |
| 17 | 510094701 | BEARING HOUSING Price: $8.99 |
| 18 | 738210102 | BALL BEARING Price: $14.99 |
| 19 | 510095201 | SPRING Price: $5.99 |
| 21 | 510091001 | SLEEVE Price: $5.99 |
| 22 | 522597001 | CLAMPING SLEEVE Price: $9.99 |
| 23 | 576221201 | RIVET Price: $2.99 |
| 24 | 579264001 | LOOP Price: $17.99 |
| 25 | 502197101 | NUT Price: $0.25 |
| 26 | 725238151 | SCREW M6X55 Price: $3.99 |
| 27 | 522723101 | LOOP Price: $4.99 |
| 28 | 522723301 | SPACING BLOCK Price: $4.99 |
| 29 | 502203801 | HANDLE Price: $5.99 |
| 31 | 510097002 | TUBE DRVESHAFT ASSY TELESCOPIC Price: $299.99 |
| 32 | 510112501 | SNAP RING Price: $3.99 |
| 33 | 522928602 | DECAL SPARK ARRESTOR WARNING Price: $2.99 |
