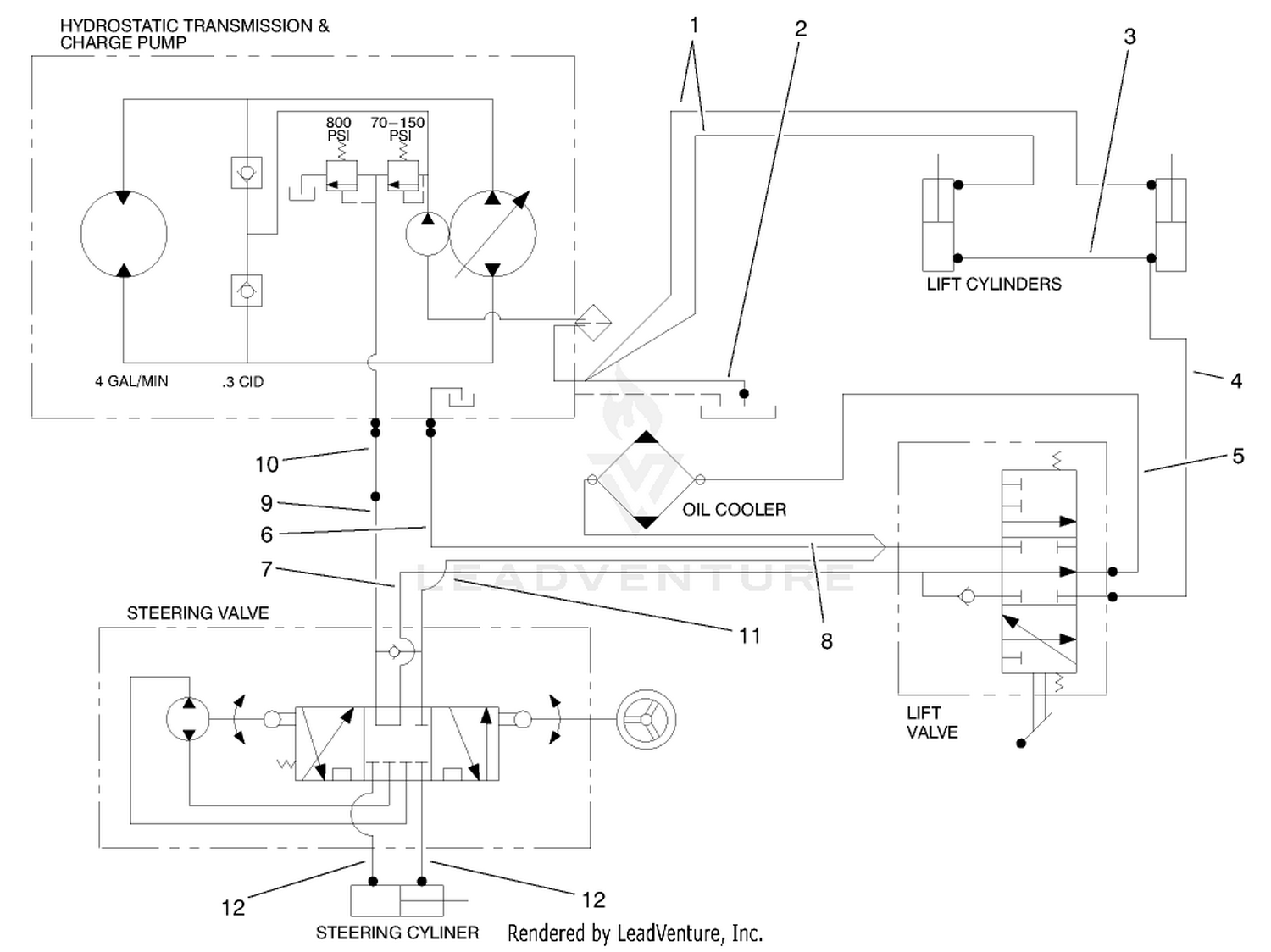

Hydraulic Schematic
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 92-5082 | HOSE-HYD Price: $25.51 |
| 2 | 92-5083 | HOSE-HYD Price: $25.27 |
| 3 | 66-8190 | HYDRAULIC HOSE ASM Price: $85.54 |
| 4 | 66-8640 | HYDRAULIC HOSE ASM Price: $104.12 |
| 5 | 66-8180 | HYDRAULIC HOSE ASM Price: $119.78 |
| 6 | 66-8150 | HOSE-HYDRAULIC Price: $15.32 |
| 7 | 66-8630 | TUBE-HYDRAULIC Price: $104.22 |
| 8 | 66-8500 | HYD HOSE ASM Price: $89.96 |
| 9 | 66-8620 | TUBE-HYDRAULIC Price: $125.76 |
| 10 | 66-8490 | HOSE-HYD Price: $140.41 |
| 11 | 66-8140 | HOSE-HYDRAULIC Price: $55.60 |
