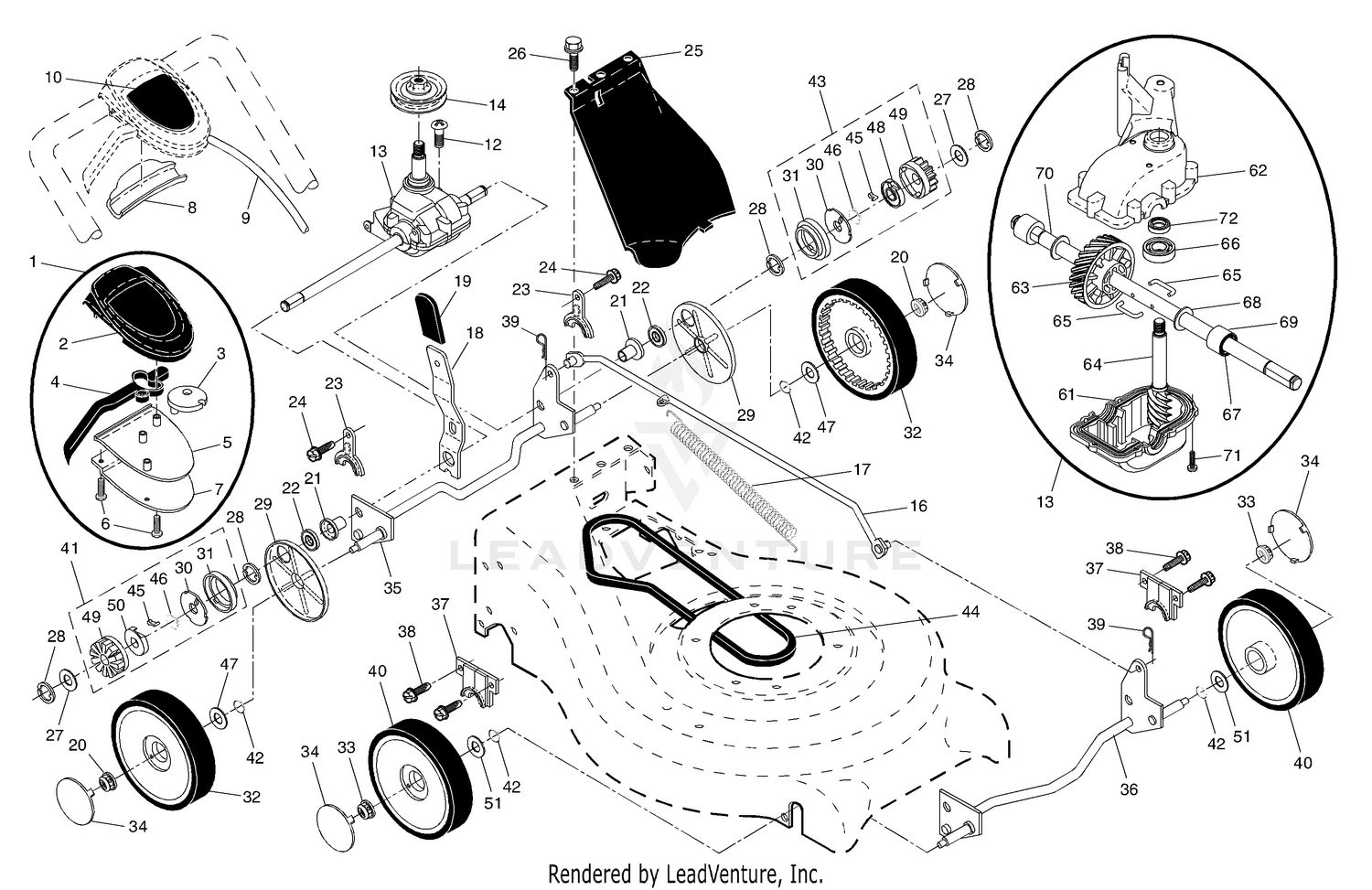

| Ref | Part Number | Description |
|---|
| 1 |
2410-71 |
PLUG-PLASTIC Price: $3.77 |
| 1 |
532196755 |
CONTROL.DR.AW.GRY.RWGD.BLACK Price: $59.99 |
| 2 |
32151-100 |
RING-RETAINING Price: $4.41 |
| 2 |
532414555 |
KIT.CONTROL.DR.CASE.HALVES.GRY This part replaces 532195761. Price: $29.99 |
| 3 |
532187353 |
PULLEY.CAM.DRIVE.CONTROL.HV Price: $6.99 |
| 3 |
69-8910 |
WASHER Price: $1.70 |
| 4 |
532425583 |
LEVER.SHORT.BLACK.EZ.WALK This part replaces 532190039. Price: $14.99 |
| 4 |
82-7850 |
SPRING-COMPRESSION Price: $12.29 |
| 5 |
354-104 |
RING-BACK UP Price: $2.24 |
| 5 |
532414555 |
KIT.CONTROL.DR.CASE.HALVES.GRY This part replaces 532195762. Price: $29.99 |
| 6 |
237-175 |
O-RING Price: $4.39 |
| 6 |
532181698 |
SCREW, PHILLIPS HEAD 10 X 5/8 Price: $3.99 |
| 7 |
532400723 |
BRACKET.DRIVE.CONTROL.MOUNT.BL This part replaces 532187097. Price: $4.99 |
| 7 |
82-7840 |
PISTON-BRAKE Price: $220.21 |
| 8 |
21-2070-03 |
END-YOKE This part replaces 21-2070. Price: $40.78 |
| 8 |
532186297 |
EZ WALK SNAP COVER PLATE Price: $5.99 |
| 9 |
237-74 |
O-Ring Price: Call Us |
| 9 |
532196784 |
DRIVE CONTROL CABLE Price: $44.99 |
| 10 |
354-105 |
RING-BACK UP Price: $3.12 |
| 10 |
532189074 |
DECAL.DRIVE.CONTROL.HV Price: $5.99 |
| 11 |
82-7830 |
SCREW-BLEEDER, BRAKE Price: $21.68 |
| 12 |
105-0606 |
HOUSING-RH This part replaces 92-8003. Price: $555.70 |
| 12 |
532187653 |
SCREW Price: $4.99 |
| 13 |
532414282 |
KIT.TRANSMISION.REPLACE.180868 This part replaces 532188645. Price: $109.99 |
| 13 |
82-7820 |
SEAT-TUBE, BRAKE Price: $6.91 |
| 14 |
532194128 |
PULLEY Price: $17.99 |
| 14 |
71-3870 |
GASKET Price: $12.51 |
| 15 |
71-3850-03 |
COVER-ACTUATOR, BRAKE This part replaces 71-3850. Price: $13.99 |
| 16 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 16 |
532414284 |
KIT.ROD.CONNECTING.REPL.161584 This part replaces 532161584. Price: $32.99 |
| 17 |
321-2 |
SCREW-HH Price: $2.79 |
| 17 |
532409616 |
SPRING EXTENSION This part replaces 532161602. Price: $5.99 |
| 18 |
3274-7 |
SCREW-HSH Price: $0.91 |
| 18 |
532418835 |
SPRING.SELECTOR.SPT.21.BZP This part replaces 532190794. Price: $5.99 |
| 19 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 19 |
532189808 |
KNOB.S/P.RWGD.EXT.ERGO.GREY This part replaces 532190622. Price: $2.99 |
| 20 |
32128-25 |
NUT-HF Price: $3.19 |
| 20 |
812000022 |
E-RING Price: $3.99 |
| 21 |
532169920 |
BEARING SUPPORT.ASM This part replaces 532163365. Price: $14.99 |
| 21 |
71-3830-03 |
BELLCRANK-BRAKE This part replaces 71-3830. Price: $82.63 |
| 22 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 22 |
532169911 |
BEARING, BALL Price: $11.99 |
| 23 |
532161118 |
RETAINER DRIVE ASM. STMP. This part replaces 532164555. Price: $3.99 |
| 23 |
71-3880 |
CLEVIS Price: $61.78 |
| 24 |
283-2 |
PIN-CLEVIS Price: $12.99 |
| 24 |
532057808 |
SCREW Price: $1.99 |
| 25 |
532400783 |
COVER.DRIVE.21.RWGD.MO This part replaces 532195503. Price: $9.99 |
| 25 |
71-3900 |
GASKET Price: $17.82 |
| 26 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 26 |
532750634 |
SCREW Price: $2.99 |
| 27 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 27 |
596040101 |
Washers This part replaces 532052160. Price: $2.99 |
| 28 |
71-3860 |
CLEVIS Price: $16.88 |
| 28 |
812000058 |
E-RING 7/16 RE Price: $2.99 |
| 29 |
3296-3 |
NUT-LOCK Price: $0.54 |
| 29 |
581840401 |
COVER.DUST.WHEEL.INNER.WALK This part replaces 532189403. Price: $5.99 |
| 30 |
532175104 |
DISC.DRIVE.21.EZ-WALK Price: $5.99 |
| 30 |
69-0030 |
SPRING-COMPRESSION Price: $21.80 |
| 31 |
283-15 |
PIN-CLEVIS Price: $4.07 |
| 31 |
532184172 |
SEAL.PINION Price: $5.99 |
| 32 |
12-8900 |
BOLT-SHOULDER, HH Price: $22.27 |
| 32 |
532193139 |
KIT.WHL.9X2.RAD.BLK(SERV ONLY) This part replaces 532188042. Price: $54.99 |
| 33 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532083923. Price: $3.99 |
| 33 |
93-7417 |
GASKET This part replaces 71-3920. Price: $5.86 |
| 34 |
532150182 |
CAP.HUB.ARC.SPOKE.8".LP This part replaces 532180626. Price: $3.99 |
| 34 |
71-3910 |
COLLAR Price: $35.77 |
| 35 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 35 |
532403102 |
SHAFT.ASM.REAR.TORQUE.BZP.8 This part replaces 532196016. Price: $29.99 |
| 36 |
532407175 |
SHAFT.ASM.FRONT.TORQUE.BZP. This part replaces 532196015. Price: $22.99 |
| 36 |
93-7418 |
CAP-ACTUATOR, BRAKE This part replaces 71-4110. Price: $28.84 |
| 37 |
532161463 |
RETAINER.FRONT.SHAFT Price: $9.99 |
| 38 |
532163409 |
SCREW Price: $3.99 |
| 39 |
532700279 |
RETAINER CLIP Price: $2.99 |
| 40 |
532435276 |
WHEEL.8X1.75.CF5SPK.RAD.BLACK This part replaces 532150348. Price: $24.99 |
| 41 |
532414860 |
KIT.PINION.ASM This part replaces 532188330. Price: $76.99 |
| 42 |
532197480 |
O-RING..070X.487.NEOPRENE This part replaces 532188152. Price: $3.99 |
| 43 |
532414860 |
KIT.PINION.ASM This part replaces 532188331. Price: $76.99 |
| 45 |
532175098 |
PAWL.DRIVE.21.EZ-WALK Price: $4.99 |
| 46 |
532188291 |
SPRING, TORSION Price: $3.99 |
| 47 |
532067725 |
WASHER FLUT Price: $5.99 |
| 48 |
532175105 |
RETAINER.DRIVE.21.EZ-WALK.LT Price: $5.99 |
| 49 |
532175103 |
GEAR, PINION Price: $10.99 |
| 50 |
532175102 |
RETAINER, DRIVE, RH Price: $5.99 |
| 51 |
532088348 |
WASHER.FLAT.1/2 Price: $3.99 |
| 61 |
532187530 |
CASE, LOWER Price: $10.99 |
| 62 |
532187531 |
CASE, UPPER Price: $22.99 |
| 63 |
532187532 |
GEAR.24.TOOTH.WALK.MOWER Price: $11.99 |
| 64 |
532187533 |
SHAFT INPUT Price: $24.99 |
| 65 |
532183505 |
WIRE, FORMED (15966) Price: $5.99 |
| 66 |
532183506 |
BEARING Price: $5.99 |
| 67 |
532183508 |
SEAL.OUTPUT.SHAFT Price: $9.99 |
| 68 |
532183509 |
WASHER Price: $3.99 |
| 69 |
532183511 |
BUSHING Price: $4.99 |
| 70 |
532191249 |
RP.SHAFT.OUTPUT.RGD.VS/EZ Price: $54.99 |
| 71 |
532183513 |
SCREW Price: $3.99 |
