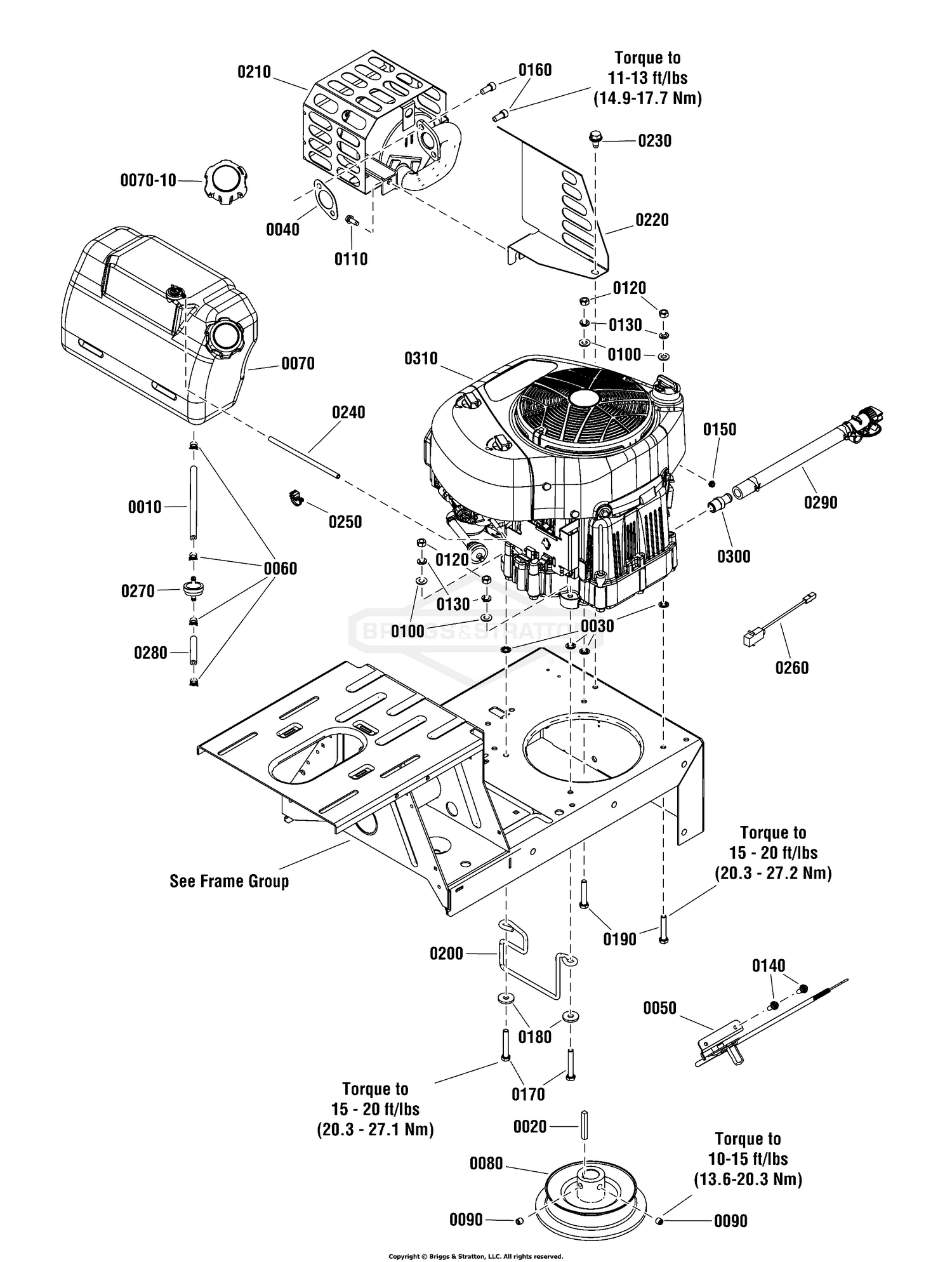

| Ref | Part Number | Description |
|---|
| 0010 |
791766 |
LINE, Fuel Price: $7.27 |
| 0020 |
703890 |
KEYSTOCK, 1/4X2 Price: $4.41 |
| 0030 |
703297 |
RETAINER, GR5, 5/16 Price: $3.29 |
| 0040 |
7015352SM |
GASKET, Exhaust Price: $4.80 |
| 0050 |
7022751YP |
CONTROL, Throttle (23.6” long) (Briggs Engines) Price: $24.37 |
| 0060 |
791850 |
CLAMP, Hose Price: $2.52 |
| 0070 |
84002729 |
FUEL TANK ASSEMBLY Price: $218.32 |
| 0090 |
7090132YP |
SET SCREW, 3/8-16 x 3/8 Hex Recess Set Price: $3.06 |
| 0100 |
703350 |
WASHER Price: $3.72 |
| 0110 |
703054 |
SCREW, 1/4-20X0.625 Price: $3.82 |
| 0120 |
7091511SM |
HN, 5/16C GR5 YZ This part replaces 703465. Price: $3.06 |
| 0130 |
5025170SM |
WASHER, 5/16" LOCK This part replaces 703116. Price: $3.51 |
| 0140 |
84002839 |
BOLT, 5/16-18X1.750, Hex Flng Price: $3.09 |
| 0150 |
703127 |
NUT Price: $3.06 |
| 0160 |
7091738SM |
SCREW, Allen Socket Head, 5/16-18 x 3/4, GR8 Price: $4.26 |
| 0170 |
704062 |
BOLT, HEX, 5/16-18X2 Price: $3.72 |
| 0180 |
703298 |
WASHER, 5/16 Price: $3.94 |
| 0190 |
704060 |
SCREW,HEX, #10-24X.5 Price: $3.09 |
| 0210 |
706121 |
MUFFLER w/Guard (Briggs 17.5HP) Price: $116.24 |
| 0220 |
706122 |
SHIELD, Manifold, RER Price: $45.36 |
| 0230 |
7091198SM |
SCREW, Hex Washer Head, Self Tap, 3/8-16 x 5/8 Price: $3.61 |
| 0240 |
315826 |
HOSE, VAPOR, 5MM ID, 20.00 LG (Cut To Length) Price: Call Us |
| 0250 |
84003009 |
EDGECLIP, Ziptie Price: Call Us |
| 0260 |
1723320SM |
WIRE ASSEMBLY, Briggs & Stratton Price: $5.82 |
| 0270 |
394358S |
FILTER, Fuel Price: $4.18 |
| 0280 |
791766 |
LINE, Fuel Price: $7.27 |
| 0290 |
594200 |
HOSE, Oil Drain Price: $19.41 |
| 0300 |
796532 |
CONNECTOR, Hose Price: $8.87 |
