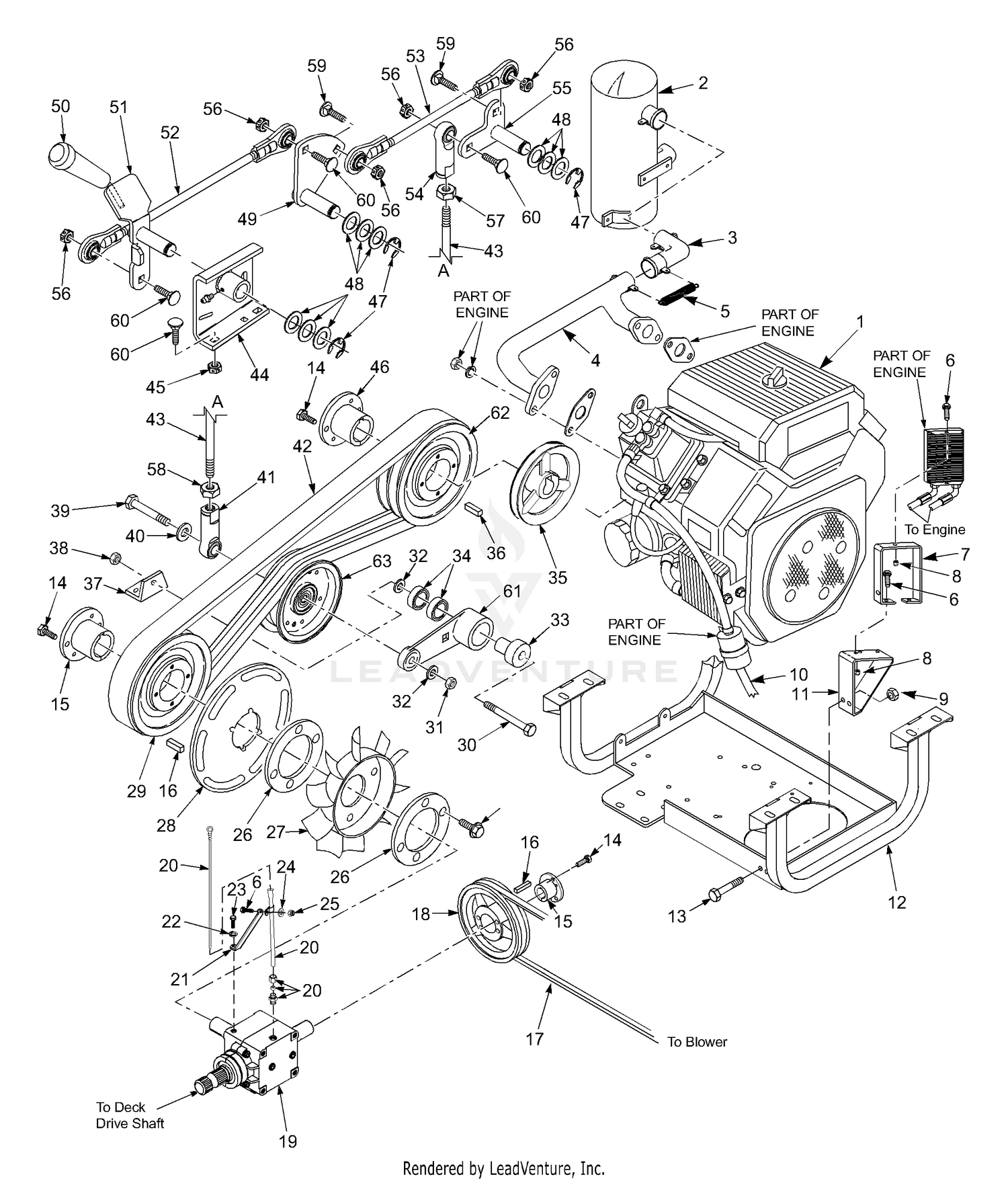

| Ref | Part Number | Description |
|---|
| 1 |
481967 |
Engine, 25 HP Kohler (Spec. PS-68650) Price: Call Us |
| 2 |
481946 |
Muffler Price: Call Us |
| 3 |
482081 |
Pipe, Exhaust Price: Call Us |
| 4 |
481947 |
Manifold, Exhaust, Kohler Price: Call Us |
| 5 |
482329 |
Spring, Exhaust Price: Call Us |
| 6 |
04001-01 |
Bolt, Hex Head 1/4-20 x .75" Price: Call Us |
| 7 |
423006 |
Guard, Oil Cooler, Kohler Only Price: Call Us |
| 8 |
04019-02 |
Nut, Serrated Flange 1/4-20 Price: Call Us |
| 9 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 10 |
483617 |
Fuel Hose, 1/4" I.D. Non-Perm (791DFI Fuel Return) This part replaces 48058. Price: Call Us |
| 11 |
423005 |
Bracket, Oil Cooler, Kohler Only Price: Call Us |
| 12 |
451401 |
Weldment, Engine Deck Price: Call Us |
| 13 |
04001-20 |
Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV Price: Call Us |
| 14 |
04001-14 |
Capscrew, Hex Head 1/4-20 x 1" Price: Call Us |
| 15 |
48141 |
Hub, Tapered 1" Bore Price: Call Us |
| 16 |
04063-01 |
Key, 1/4 x 1/4 x 1.25" Price: Call Us |
| 17 |
481977 |
Belt, Blower Price: Call Us |
| 18 |
482647 |
Pulley 5.35" This part replaces 481435. Price: Call Us |
| 19 |
482500 |
Gearbox, T-Drive Price: Call Us |
| 20 |
482223 |
Dipstick Assembly Price: Call Us |
| 21 |
423236 |
Bracket, Dipstick Tube Price: Call Us |
| 22 |
04030-03 |
Lock Washer, 5/16" Price: Call Us |
| 23 |
04001-08 |
Bolt, Hex Head 5/16-18 x 3/4" Price: Call Us |
| 24 |
04040-14 |
Flatwasher, 1/4-.312 x .750 x .065 Price: Call Us |
| 25 |
04021-08 |
Nut, Elastic Stop 1/4-20 Price: Call Us |
| 26 |
423115 |
Spacer, Fan Price: Call Us |
| 27 |
482133 |
Fan, Cooling Price: Call Us |
| 28 |
423078 |
Disk, Fan Support Price: Call Us |
| 29 |
482067 |
Pulley, 4.95" OD Tapered Bore Price: Call Us |
| 30 |
04001-31 |
Bolt, Hex Head 3/8-16 x 2.5" Price: Call Us |
| 31 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 32 |
04030-04 |
Lockwasher, 3/8” Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV Price: Call Us |
| 33 |
43503 |
Pivot, Idler Price: Call Us |
| 34 |
48224 |
Bearing, Idler Arm Price: Call Us |
| 35 |
482791 |
Pulley, 5.45" OD This part replaces 481788. Price: Call Us |
| 36 |
04063-20 |
Key, 1/4 x1/4 x 1" Price: Call Us |
| 37 |
423014 |
Mounting Bracket, Idler Price: Call Us |
| 38 |
04021-09 |
Nut, Elastic Stop 3/8" Price: Call Us |
| 39 |
04001-30 |
Bolt, Hex Head 3/8-16 x 4" Price: Call Us |
| 40 |
04030-04 |
Lockwasher, 3/8” Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV Price: Call Us |
| 41 |
482331 |
Rod End, 3/8-24 LH Female Price: Call Us |
| 42 |
482263 |
Belt Price: Call Us |
| 43 |
482231 |
Link, PTO Price: Call Us |
| 44 |
451293 |
Bracket, PTO Price: Call Us |
| 45 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 46 |
48926 |
Hub, Tapered 1.125" Bore Price: Call Us |
| 47 |
04050-02 |
External E-Ring Price: Call Us |
| 48 |
04041-08S |
Flatwasher, 3/4-.766 x 1.25 x .105 Price: Call Us |
| 49 |
451296 |
Bellcrank Weldment, Front Price: Call Us |
| 50 |
482250 |
Grip, PTO Lever Price: Call Us |
| 51 |
461334 |
Lever Weldment, PTO Engagement Price: Call Us |
| 52 |
482233 |
Linkage Assembly, PTO Upper Price: Call Us |
| 53 |
482232 |
Linkage Assembly, PTO Center Price: Call Us |
| 54 |
482330 |
Rod End, 3/8-24 RH Female Price: Call Us |
| 55 |
451297 |
Bellcrank Weldment, Rear Price: Call Us |
| 56 |
04021-05 |
Nut, Center Lock 3/8-16 Price: Call Us |
| 57 |
04020-14 |
Nut, 3/8-24 LH Thread Price: Call Us |
| 58 |
04020-17 |
Nut, 3/8-24 RH Thread Price: Call Us |
| 59 |
04003-05 |
Bolt, Carraige 3/8-16 x 1-1/2" Price: Call Us |
| 60 |
04003-23 |
Bolt, Carraige 3/8-16 x 1" Price: Call Us |
| 61 |
461015 |
Idler Arm Price: Call Us |
| 62 |
482067 |
Pulley, 4.95" OD Tapered Bore Price: Call Us |
| 481944 |
Manifold, |
Exhaust, Kawasaki Price: Call Us 481944 |
