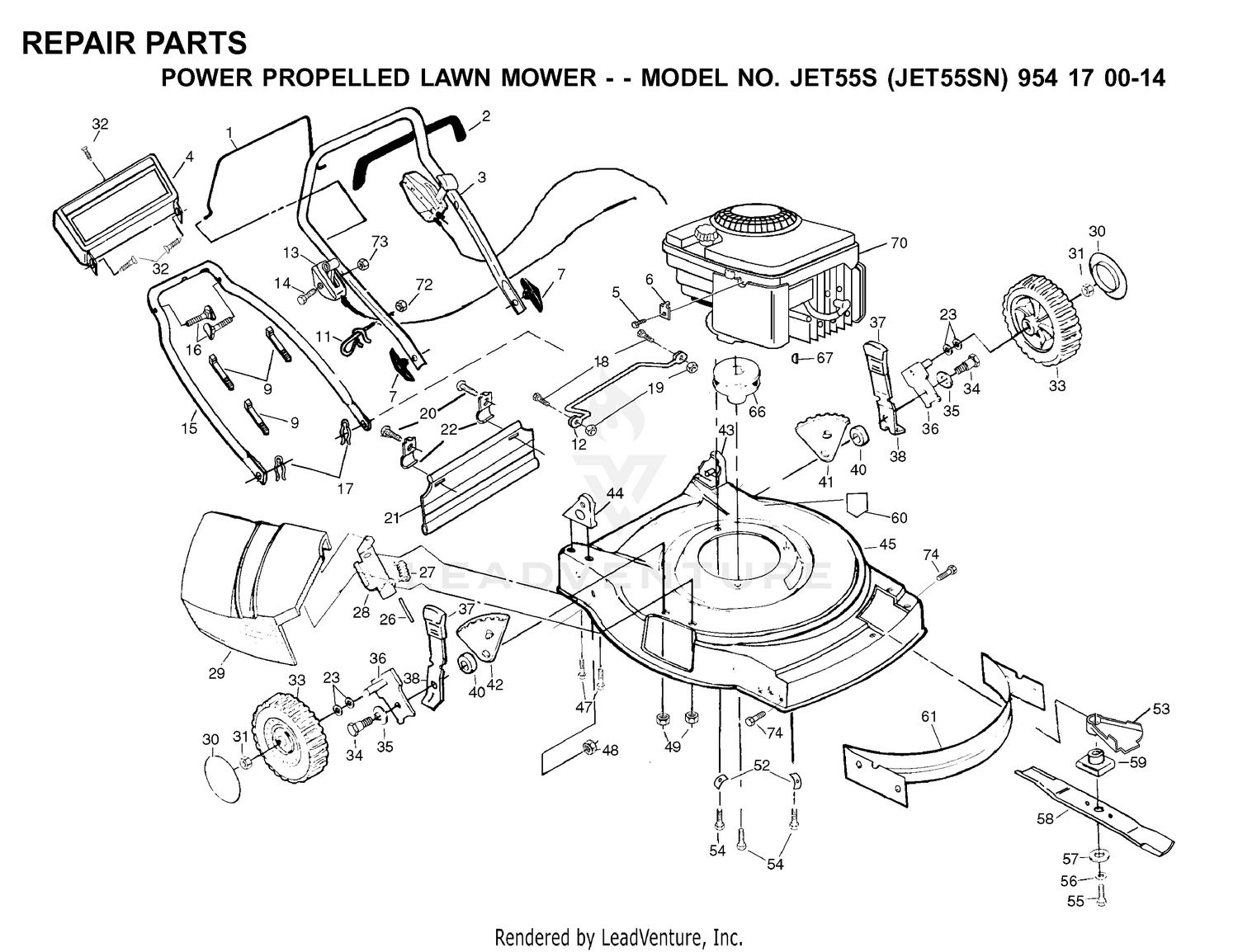

| Ref | Part Number | Description |
|---|
| 1 |
532131094 |
CONTROL BAR Price: $12.99 |
| 2 |
585161003 |
GRIP.HANDLE.FOAM.438MM This part replaces 532164265. Price: $4.99 |
| 3 |
532167123 |
ROD Price: $64.99 |
| 4 |
532157070 |
TRIM PLATE Price: $4.53 |
| 5 |
532083816 |
SCREW.HEX.HEAD.WASHER.10-16 Price: $4.99 |
| 6 |
532125078 |
WASHER.ENGINE.BZP This part replaces 532213146. Price: $4.99 |
| 7 |
532183724 |
KIT.KNOB.HANDLE.SERVICE This part replaces 532136376. Price: $9.99 |
| 9 |
532007192 |
WIRE TIE This part replaces 532066426. Price: $7.99 |
| 11 |
532153638 |
GUIDE Price: $6.99 |
| 12 |
532154147 |
PROTECTOR Price: $22.99 |
| 13 |
532700417 |
THROTTLE CONTROL Price: $17.99 |
| 14 |
532059935 |
SCREW 1/4-20X1.75 Price: $2.38 |
| 15 |
532157081 |
HANDLE.LOWER.BLACK This part replaces 532157082. Price: $54.99 |
| 16 |
532183724 |
KIT.KNOB.HANDLE.SERVICE This part replaces 532131959. Price: $9.99 |
| 17 |
532051793 |
HAIRPIN COTTER Price: $5.99 |
| 18 |
817021008 |
SCREW This part replaces 532085825. Price: $3.99 |
| 19 |
532069180 |
LOCKNUT Price: $2.99 |
| 20 |
817021008 |
SCREW This part replaces 532750097. Price: $3.99 |
| 21 |
532413160 |
SKIRT.REAR.22RD/SD.FO/VE This part replaces 532140540. Price: $11.99 |
| 22 |
532192301 |
BRACKET.SKIRT.BZP This part replaces 532125207. Price: $4.99 |
| 23 |
532428450 |
KIT.O-RING/WASHER This part replaces 532057143. Price: $3.99 |
| 26 |
532147286 |
ROD.HINGE.COMBI-C Price: $6.99 |
| 27 |
532087589 |
SPRING PM Price: $3.99 |
| 28 |
532087593 |
BRACKET PM Price: $5.99 |
| 29 |
532850778 |
DISCHARGE GUARD Price: $15.99 |
| 30 |
532157008 |
HUBCAP.8".GREY Price: $3.99 |
| 31 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532083923. Price: $3.99 |
| 32 |
532701477 |
FASTENER Price: $2.38 |
| 33 |
532750550 |
WHEEL.8X2.PR.LP.RAD.GREY Price: $27.99 |
| 34 |
532174719 |
BOLT SHOULDER 3/8 -16X1 This part replaces 532142748. Price: $7.99 |
| 35 |
532062335 |
WASHER.BELLEVILLE (3 2 LB) Price: $7.99 |
| 36 |
532145937 |
AXLE ARM This part replaces 532151254. Price: $3.99 |
| 37 |
532701037 |
SELECTOR KNOB This part replaces 532132800. Price: $4.99 |
| 38 |
532125259 |
SPRING Price: $6.99 |
| 41 |
532140058 |
BRACKET WHL ADJ This part replaces 532800370. Price: $4.99 |
| 42 |
532800368 |
WHL ADJ BRKT LF/RR Price: $5.99 |
| 43 |
532170346 |
BRACKET.ASM.HDL.LT.W/HOLE.BLAC This part replaces 532170977. Price: $5.99 |
| 44 |
532170345 |
BRACKET.ASM.HDL.RT.W/HOLE.BLAC This part replaces 532170975. Price: $5.99 |
| 45 |
532170500 |
NEEDS DESCRIPTION Price: Call Us |
| 47 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 532149741. Price: $4.99 |
| 48 |
596322601 |
Nuts This part replaces 532751592. Price: $2.99 |
| 49 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532063601. Price: $1.99 |
| 52 |
532125078 |
WASHER.ENGINE.BZP Price: $4.99 |
| 53 |
532048283 |
KIT.SHIELD.DEBRIS.21.RWGD.EZ This part replaces 532134612. Price: $12.99 |
| 54 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 55 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 56 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 57 |
532851074 |
WASHER,HARDEN Price: $3.99 |
| 58 |
531006062 |
BLADE Price: $32.99 |
| 59 |
532851514 |
BLADE ADAPTOR Price: $7.99 |
| 60 |
532145494 |
DECAL MOWER CUT/FINGER Price: $8.99 |
| 61 |
532170491 |
NEEDS DESCRIPTION Price: Call Us |
| 66 |
532084596 |
ENGINE.PULLEY.FWG Price: $27.99 |
| 67 |
532087677 |
HI PRO KEY PM WSL Price: $3.99 |
| 72 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532063601. Price: $1.99 |
| 73 |
532191730 |
NUT.HEX.FLANGE.1/4 This part replaces 532751152. Price: $3.99 |
| 74 |
817600406 |
SCREW 1/4X20 Price: $2.99 |
| 75 |
532161057 |
NEEDS DESCRIPTION Price: Call Us |
