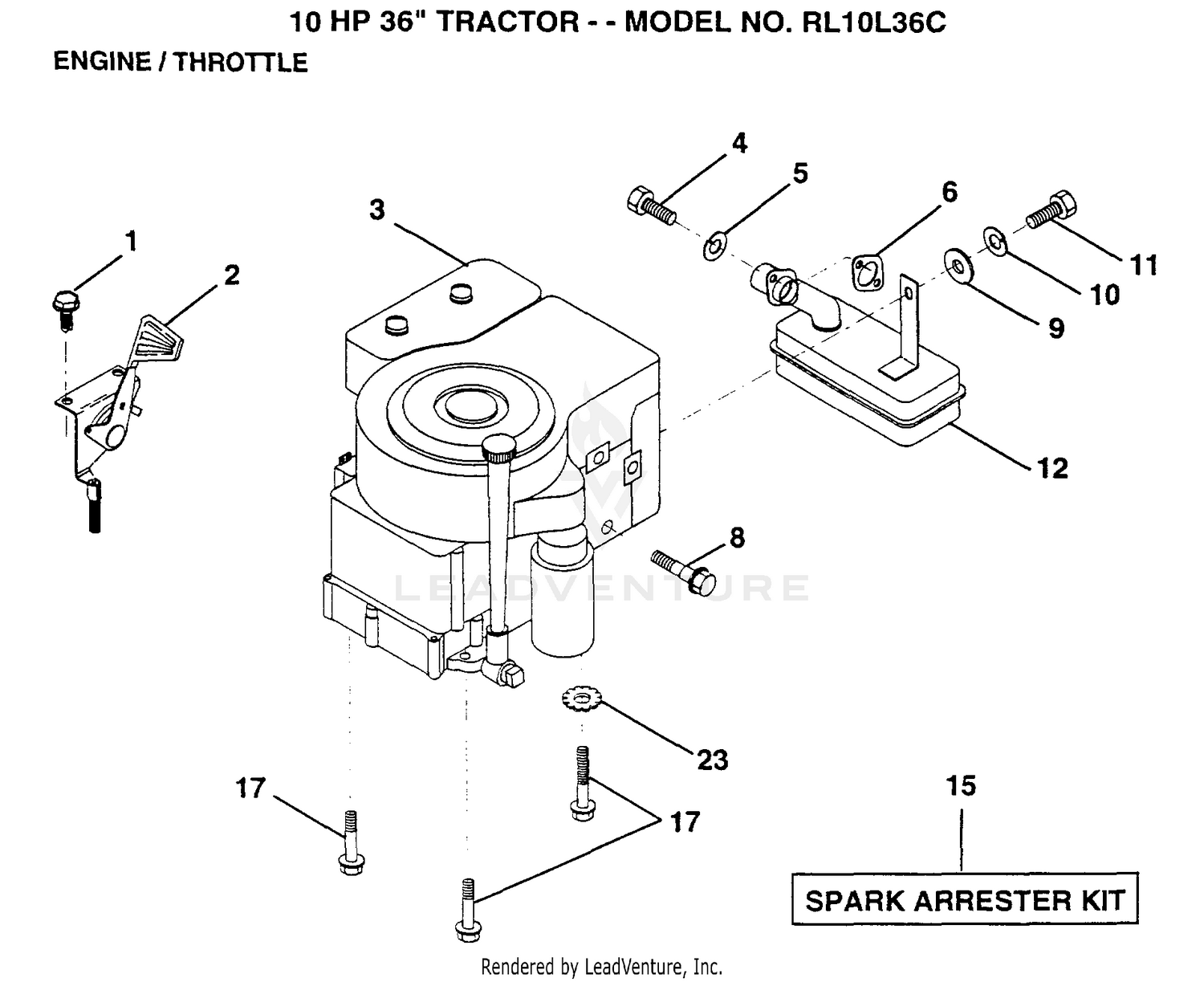

| Ref | Part Number | Description |
|---|
| 1 |
17060408 |
SCREW.1/4-20X1/2 Price: Call Us |
| 1 |
66-6370 |
LIFT ARM ASM Price: $430.43 |
| 2 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 3 |
28A707 |
ENGINE, B&S 10HP Price: Call Us |
| 3 |
66-7150 |
ARM-PUSH, RH Price: $536.26 |
| 4 |
3272-24 |
PIN-COTTER Price: $0.54 |
| 4 |
71070512 |
SCREW Price: Call Us |
| 5 |
10040500 |
LOCKWASHER Price: Call Us |
| 5 |
55-4300 |
DECAL-WARNING Price: $13.99 |
| 6 |
125593X |
SUB= 272293 Price: Call Us |
| 6 |
46-8840-01 |
SPRING-LIFT ARM Price: $35.71 |
| 8 |
121094X |
BOLT T Price: Call Us |
| 8 |
5-1754 |
WASHER-FLAT Price: $2.17 |
| 9 |
19101216 |
WASHER Price: Call Us |
| 9 |
3272-33 |
PIN-COTTER Price: $0.54 |
| 10 |
10040400 |
LOCKWASHER Price: Call Us |
| 10 |
324-4 |
SCREW-HH Price: $0.95 |
| 11 |
3-7292 |
PIN-CLEVIS Price: $44.11 |
| 12 |
137437 |
MUFFLER Price: Call Us |
| 12 |
21-2860-01 |
PUSH ARM BRACKET ASM Price: $154.46 |
| 13 |
32121-84 |
PIN-SPIRAL Price: $1.29 |
| 14 |
21-2990 |
SHAFT-PIVOT Price: $227.21 |
| 15 |
137180 |
SUB= 532137180 Price: Call Us |
| 15 |
32128-42 |
NUT-HF Price: $0.98 |
| 16 |
21-2960 |
ARM-PUSH, LH Price: $519.38 |
| 17 |
105-9550-01 |
SPRING-TORSION, LH (LIGHT) Price: $217.23 |
| 17 |
17490624 |
SCREW LT Price: Call Us |
| 17 |
21-2900-01 |
SPRING-TORSION, LH Price: $566.83 |
| 19 |
21-2890-01 |
SPRING-TORSION, RH Price: $566.83 |
| 22 |
99-1299-03 |
ROPS-2 POST Price: $2,264.78 |
| 23 |
3-1365 |
CHAIN Price: $72.97 |
| 24 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 25 |
283-10 |
PIN-CLEVIS Price: $7.43 |
| 26 |
3212-4 |
SCREW-HH Price: $2.73 |
| 27 |
328-12 |
SCREW-HH Price: $9.77 |
| 28 |
3253-9 |
WASHER-LOCK Price: $1.02 |
| 29 |
3217-12 |
NUT-HEX Price: $3.12 |
| 30 |
23-1950-01 |
SUPPORT-REINFORCEMENT Price: $69.64 |
| 31 |
5-3126 |
PIN-LYNCH Price: $0.73 |
| 32 |
72-9390 |
BELT-SEAT Price: $140.77 |
| 34 |
24-9510 |
PIN Price: $77.49 |
| 35 |
5-2942 |
SHACKLE Price: $16.99 |
| 36 |
21-1830 |
SPRING-EXTENSION Price: $34.62 |
| 37 |
68-3270 |
BUMPER-RUBBER Price: $37.99 |
| 38 |
74-0720 |
TUBE-MANUAL Price: $22.99 |
| 39 |
322-2 |
SCREW-HH Price: $0.69 |
| 40 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 41 |
2412-133 |
CLAMP-R Price: $3.19 |
