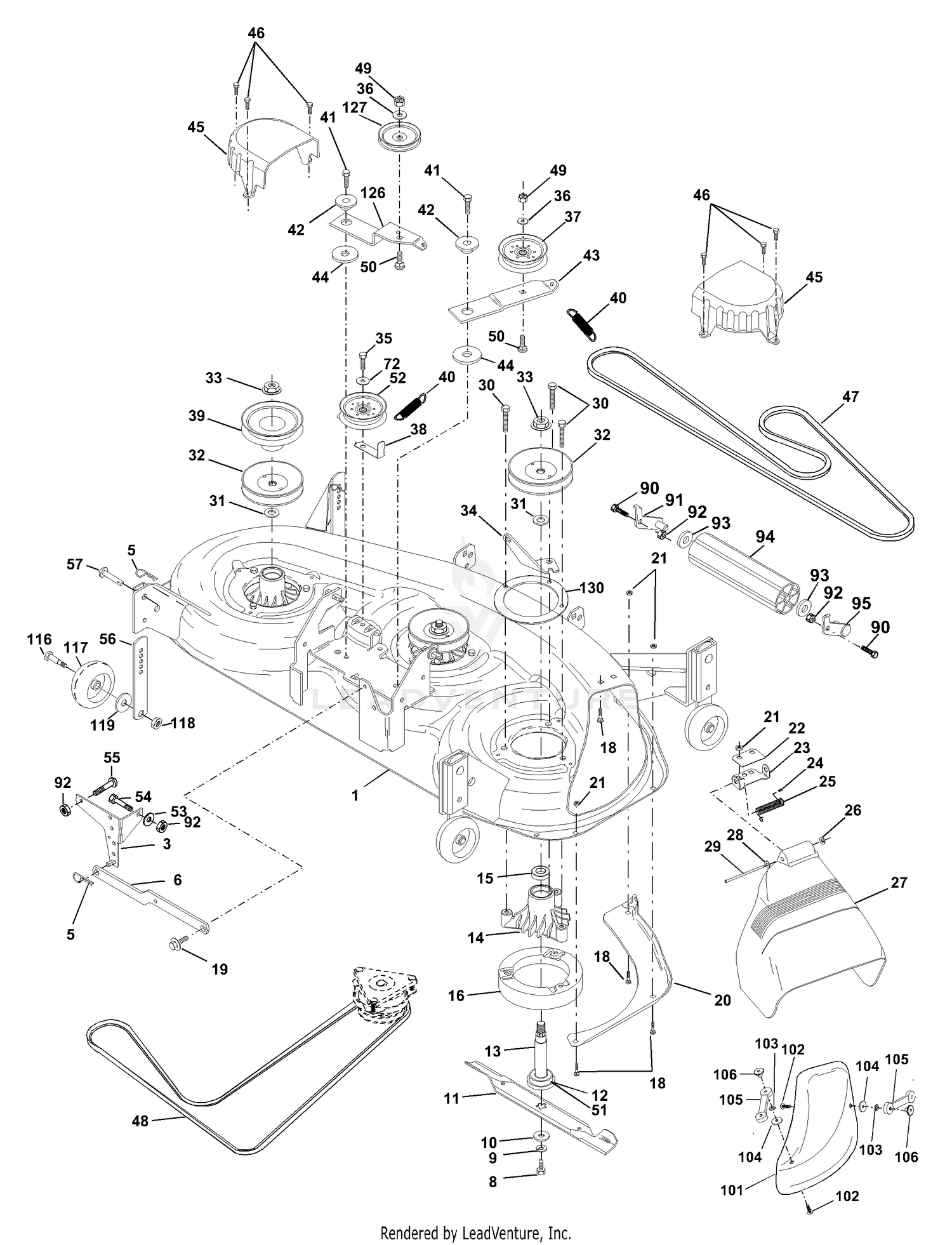

| Ref | Part Number | Description |
|---|
| 1 |
5-0743-03 |
SPRING-MOWER This part replaces 5-0743. Price: $188.53 |
| 1 |
532176034 |
DECK.SVC.W/ADJ.GWB.46".BLACK This part replaces 532164212. Price: $279.99 |
| 2 |
62-7240 |
DISCONTINUED Price: Call Us |
| 3 |
532138457 |
BRACKET SWAY BAR Price: $9.99 |
| 5 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 5 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 6 |
531149301 |
SERVICE KIT BAR BAR SWAY DECK. This part replaces 532130832. Price: $9.99 |
| 6 |
93-6912 |
DISCONTINUED Price: Call Us |
| 7 |
283-75 |
PIN-CLEVIS Price: $1.56 |
| 8 |
532850857 |
BLADE BOLT Price: $3.99 |
| 9 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 9 |
596238701 |
Washers This part replaces 810030600. Price: $3.99 |
| 10 |
532140296 |
WASHER.BLADE Price: $5.99 |
| 10 |
92-1818-01 |
ARM-SPRING, TENSION This part replaces 92-1818. Price: $13.39 |
| 11 |
323-9 |
SCREW-HH Price: $1.29 |
| 11 |
532152443 |
MULCH BLADE 46" This part replaces 532152433. Price: $17.99 |
| 11 |
532176084 |
BLADE.46".HI-LIFT.PREMIUM This part replaces 532170698. Price: $22.99 |
| 12 |
32144-109 |
SCREW-THD Price: $1.29 |
| 12 |
532129895 |
BEARING.BALL.#6204.(MANDREL) Price: $9.99 |
| 13 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 14 |
532137152 |
HOUSING.MANDREL.44/46" VENT Price: $34.99 |
| 14 |
93-6893 |
PIN-PIVOT, RAM Price: $49.13 |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 15 |
92-1812 |
SHAFT-PIVOT, LIFT Price: $51.90 |
| 16 |
531167701 |
SERVICE KIT MANDREL STRIPPER This part replaces 532140329. Price: $6.99 |
| 17 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 18 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 18 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 19 |
532132827 |
BOLT SHD 5/16-18 Price: $4.99 |
| 19 |
94-5009 |
HOSE ASM Price: $102.32 |
| 20 |
531154201 |
SERVICE KIT BAFFLE BAFFLE This part replaces 532145055. Price: $6.99 |
| 20 |
94-5008 |
HOSE ASM Price: $102.26 |
| 21 |
340-103 |
FITTING-HYD, 45 DEG Price: $36.92 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 22 |
340-92 |
FITTING-STRAIGHT Price: $12.29 |
| 22 |
532134753 |
STIFFENER BRACKET Price: $5.99 |
| 23 |
529845901 |
SERVICE KIT BRKT This part replaces 532131267. Price: $4.99 |
| 23 |
93-6869 |
HYD CYLINDER ASM Price: $638.61 |
| 24 |
125-5196 |
BUSHING This part replaces 3-0348. Price: $6.00 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 25 |
532123713 |
SPRING TORSION This part replaces 532149287. Price: $6.99 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 26 |
93-6696 |
DECAL-WARNING Price: $14.78 |
| 27 |
532166883 |
DEFLECTOR.CLIPPING.46" This part replaces 532171384. Price: $38.99 |
| 28 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 28 |
819111016 |
Washer 11/32 x 5/8 x 16 Ga. Price: $5.99 |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 29 |
93-6926 |
PIN-CLEVIS Price: $33.72 |
| 30 |
322-4 |
SCREW-HH Price: $0.35 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532157722. Price: $3.99 |
| 31 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL This part replaces 532129963. Price: $3.99 |
| 32 |
322-26 |
SCREW-HH Price: $2.36 |
| 32 |
532173434 |
MANDREL PULLEY This part replaces 532153531. Price: $14.99 |
| 33 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 33 |
532139729 |
KIT.NUT.FLANGE This part replaces 532137266. Price: $7.99 |
| 34 |
3256-57 |
WASHER-FLAT Price: $0.41 |
| 34 |
532144945 |
ANCHOR, SPRING DECK 46" Price: $4.99 |
| 35 |
599972501 |
BOLT This part replaces 817490628. Price: $2.99 |
| 35 |
94-3635 |
CENTER LIFT ARM ASM Price: $280.94 |
| 36 |
256-115 |
WASHER-THRUST Price: $1.90 |
| 36 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 37 |
597025001 |
CLG This part replaces 532131494. Price: $22.99 |
| 37 |
99-2338 |
SHAFT-PIVOT Price: $101.09 |
| 38 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 38 |
532156086 |
KEEPER.BELT.IDLER Price: $5.99 |
| 39 |
3234-32 |
SCREW-HHF Price: $8.48 |
| 39 |
532144917 |
PULLEY.DRIVEN.DECK.46" Price: $27.99 |
| 40 |
237-78 |
O-RING Price: $3.85 |
| 40 |
532137273 |
SPRING.SEC.44"VEN Price: $6.99 |
| 41 |
237-21 |
O-RING Price: $0.70 |
| 41 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 42 |
532165723 |
SPACER.RETAINER.MOWER Price: $5.99 |
| 42 |
98-3445 |
SPACER Price: $6.02 |
| 43 |
532144949 |
ARM IDLER DECK 46" Price: $4.99 |
| 43 |
98-3446 |
PLATE-REINFORCEMENT Price: $11.38 |
| 44 |
323-4 |
SCREW-HH Price: $1.02 |
| 44 |
532178515 |
WASHER This part replaces 532133943. Price: $5.99 |
| 45 |
532145059 |
COVER MANDREL 46 Price: $14.99 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 47 |
532144959 |
BELT V SECONDARY Price: $37.99 |
| 48 |
532148763 |
V-BELT PRIMARY 50" Price: $54.99 |
| 49 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 50 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 51 |
532153390 |
WASHER FELT Price: $3.99 |
| 52 |
532173901 |
PULLEY.IDLER.FLAT.46".PRIMARY This part replaces 532156493. Price: $27.99 |
| 53 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 54 |
596564401 |
Bolts This part replaces 874780616. Price: $3.99 |
| 55 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 56 |
532155986 |
BAR.ADJUST.WHEEL.ANTI.SCALP.BL Price: $17.99 |
| 57 |
532156941 |
RIVET.PIN.HEAD.YELLOW. Price: $4.99 |
| 72 |
596140201 |
Washers This part replaces 819131616. Price: $2.99 |
| 90 |
596564401 |
Bolts This part replaces 874760616. Price: $3.99 |
| 91 |
532175746 |
BRACKET ASM, ROLLER (L) This part replaces 532132274. Price: $7.99 |
| 92 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 93 |
819171416 |
Washer 17/32 x 7/8 x 16 Ga. Price: $3.99 |
| 94 |
532132264 |
NOSE ROLLER Price: $29.99 |
| 95 |
531154101 |
SERVICE KIT BRACKET BRACKET AS This part replaces 532132273. Price: $12.99 |
| 101 |
532145579 |
COVER.MULCH.46"3-BLADE.(2 2) Price: $21.99 |
| 102 |
596039001 |
Screws This part replaces 871161010. Price: $2.99 |
| 103 |
810071000 |
LOCKWASHER #10 Price: $3.99 |
| 104 |
819061216 |
WASHER Price: $3.99 |
| 105 |
597000601 |
LATCH.ASM.MULCH/BAGGER This part replaces 532160793. Price: $5.99 |
| 106 |
596987401 |
Nuts This part replaces 532125004. Price: $2.99 |
| 116 |
596434404 |
Bolts This part replaces 532137644. Price: $4.99 |
| 117 |
532133957 |
WHEEL GAGE DONUT Price: $11.99 |
| 118 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
| 119 |
596134901 |
GSPH This part replaces 819121414. Price: $2.99 |
| 126 |
532144948 |
ARM IDLER PRIM 46 Price: $4.99 |
| 127 |
593787801 |
PULLEYS This part replaces 532146763. Price: $27.99 |
| 130 |
532153183 |
REINFORCEMENT MANDREL RING Price: $9.99 |
