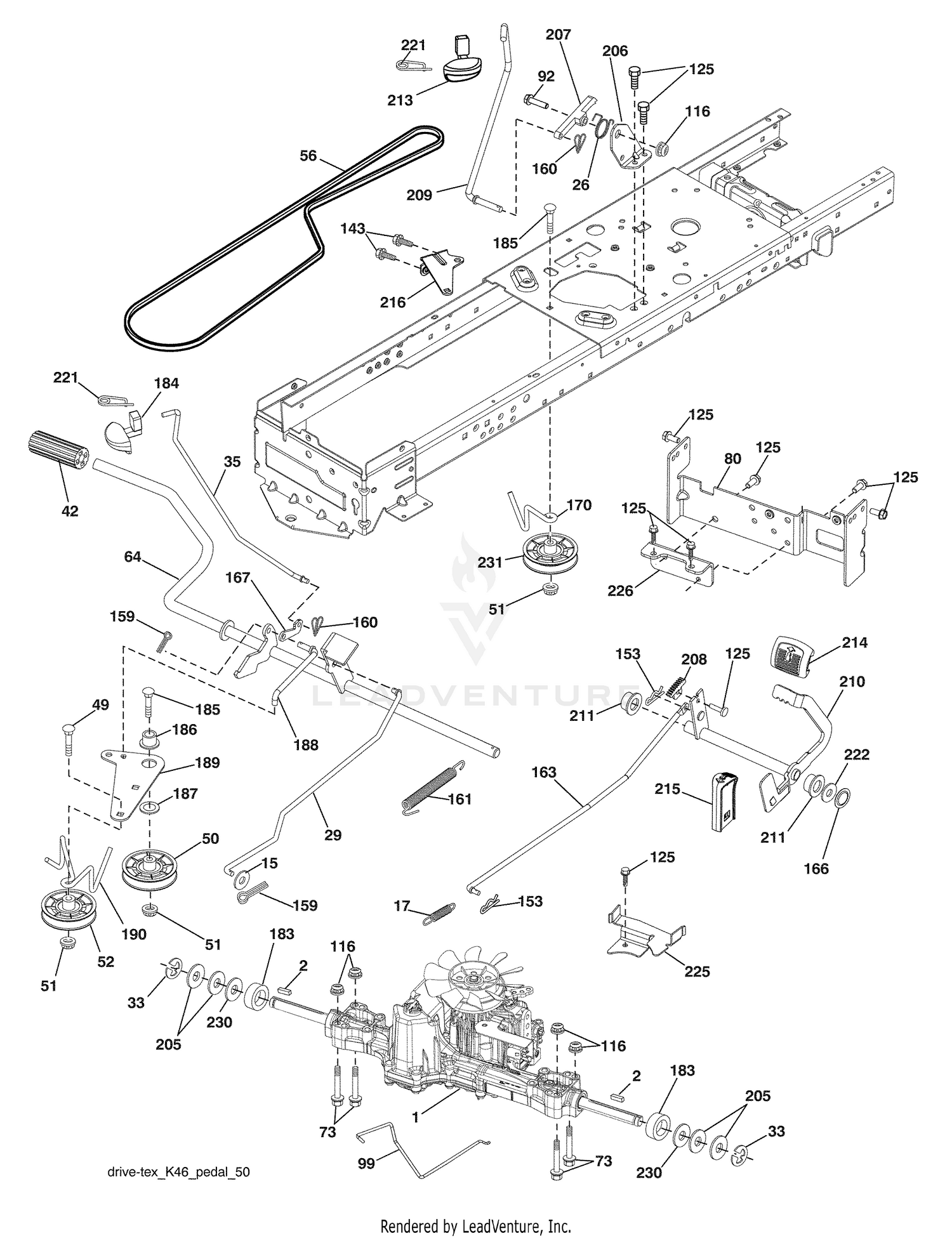

| Ref | Part Number | Description |
|---|
| 1 |
2411-53 |
BEARING-ROD END, LH Price: $35.54 |
| 2 |
3220-20 |
NUT-JAM Price: $0.92 |
| 2 |
532123583 |
SQUARE KEY Price: $3.99 |
| 3 |
32121-24 |
PIN-SPRING Price: $0.95 |
| 4 |
46-8810 |
STOP-SPRING, LEAF Price: $9.17 |
| 5 |
92-7905 |
SWITCH AND BRACKET ASM Price: $293.34 |
| 6 |
3249-3 |
SCREW-PRH Price: $0.34 |
| 7 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 8 |
76-2170-03 |
DISCONTINUED This part replaces 76-2170. Price: Call Us |
| 9 |
76-0420 |
PUMP CONTROL ROD Price: $70.97 |
| 10 |
322-7 |
SCREW-HH Price: $0.89 |
| 11 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 12 |
2411-52 |
BEARING-ROD END, RH Price: $35.54 |
| 13 |
3256-74 |
WASHER-FLAT Price: $0.27 |
| 14 |
61-2610 |
TRACTION ARM Price: $34.35 |
| 15 |
32153-3 |
NUT-HEX, SIDE DEFORM Price: $5.59 |
| 15 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 16 |
3220-2 |
NUT-JAM Price: $0.50 |
| 17 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 17 |
532413678 |
SPRING.BRAKE.K46.GREEN Price: $6.99 |
| 18 |
3210-7 |
SCREW-HH Price: $0.61 |
| 19 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 20 |
3254-9 |
WASHER-LOCK, INTERNAL Price: $0.25 |
| 21 |
3217-29 |
NUT-HEX Price: $0.25 |
| 22 |
3255-7 |
WASHER-LOCK/EXT Price: $1.39 |
| 23 |
42-2040 |
PIPE PLUG Price: $14.79 |
| 24 |
322-17 |
SCREW-HH Price: $2.62 |
| 25 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 26 |
110-9650 |
LEAF SPRING ASM This part replaces 29-6150. Price: $33.06 |
| 26 |
532199679 |
SPRING.RETURN.CRUISE Price: $3.99 |
| 27 |
29-6170 |
EXTENDED LEAF SPRING ASM Price: $45.56 |
| 28 |
51-3150 |
SHIM-ARM, SPRING Price: $5.24 |
| 29 |
29-6120-03 |
PUMP PLATE ASM This part replaces 29-6120. Price: $93.02 |
| 29 |
532403806 |
ROD.BRAKE.K46 Price: $17.99 |
| 30 |
321-6 |
SCREW-HH Price: $0.25 |
| 31 |
61-2940-03 |
PUMP LEVER ASM This part replaces 61-2940. Price: $60.56 |
| 32 |
251-259 |
BEARING-BALL Price: $13.67 |
| 33 |
3256-53 |
WASHER-FLAT Price: $0.25 |
| 33 |
812000001 |
E-RING LT Price: $3.99 |
| 34 |
92-7906 |
DISCONTINUED Price: Call Us |
| 35 |
583864502 |
Rods This part replaces 532199591. Price: $6.99 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 49 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $17.99 |
| 51 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $19.99 |
| 56 |
592855201 |
Belts This part replaces 532130969. Price: $27.99 |
| 64 |
532197865 |
SHAFT.ASM.PEDAL.BRK.CNTR Price: $44.99 |
| 73 |
595316601 |
Bolts This part replaces 874490544. Price: $3.99 |
| 80 |
531064101 |
SERVICE KIT TORQUE STRAP BLACK This part replaces 532410024. Price: $19.99 |
| 92 |
595305701 |
Screws This part replaces 874760520. Price: $3.99 |
| 99 |
532415742 |
ROD.SPRING.BYPASS.K46.LT.Z Price: $7.99 |
| 116 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 143 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 153 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 159 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 160 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 163 |
593861001 |
Rods This part replaces 532401034. Price: $22.99 |
| 166 |
532429164 |
NUT.PUSH.625 This part replaces 532197290. Price: $4.99 |
| 167 |
531152901 |
SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532405257. Price: $2.99 |
| 170 |
532413430 |
KEEPER.CENTER SPAN.1.688 Price: $5.99 |
| 183 |
532137057 |
SPACER AXLE Price: $5.99 |
| 184 |
532196439 |
HANDLE.PARKING.BRAKE.H (BLK) This part replaces 532403118. Price: $9.99 |
| 185 |
872110622 |
BOLT Price: $3.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $7.99 |
| 187 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG This part replaces 532194323. Price: $4.99 |
| 189 |
531169001 |
SERVICE KIT BELLCRANK This part replaces 532194317. Price: $6.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $5.99 |
| 205 |
532121748 |
WASHER Price: $3.99 |
| 206 |
532448596 |
BRACKET.MOUNT.CRUISE.LATCH This part replaces 532197867. Price: $4.99 |
| 207 |
587031402 |
Latch This part replaces 532197868. Price: $5.99 |
| 208 |
596564101 |
Gears This part replaces 532197869. Price: $4.99 |
| 209 |
596869801 |
Rods This part replaces 532199592. Price: $5.99 |
| 210 |
532400980 |
ROCKER.ASM.PEDAL.CONTR Price: $32.99 |
| 211 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 213 |
532403119 |
KNOB.CONTROL.CRUSIE.HU Price: $8.99 |
| 214 |
532421263 |
PEDAL.FORWARD.PAD.TEX Price: $6.99 |
| 215 |
532401723 |
PEDAL.REVERSE.TEX.GT.4 Price: $12.99 |
| 216 |
532196131 |
BRACKET.PULLEY.IDLER.W/TEX Price: $6.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $3.99 |
| 222 |
879212010 |
WASHER 21/32 X 1-1/4 X 10 GA. Price: $3.99 |
| 225 |
531149001 |
SERVICE KIT KEEPER BELT KEEPER This part replaces 532403319. Price: $5.99 |
| 226 |
531170501 |
SERVICE KIT BRACKET This part replaces 532401564. Price: $4.99 |
| 230 |
532188967 |
WASHER.HARDENED Price: $3.99 |
