| Ref | Part Number | Description |
|---|
| 1 |
93-1394 |
NUT-SPLINE This part replaces 77-0340. Price: $27.80 |
| 2 |
254-94 |
BEARING-CONE, TAPERED Price: $8.48 |
| 3 |
254-72 |
BEARING-CUP, TAPERED Price: $9.67 |
| 4 |
108-6475 |
KIT-BEARING HOUSING This part replaces 10-5120. Price: $42.60 |
| 5 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 6 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 7 |
77-1060 |
ADJUST-HOC, RH Price: $88.45 |
| 8 |
70-1200-01 |
FRAME-REEL ASM This part replaces 70-1200. Price: $396.13 |
| 9 |
323-7 |
SCREW-HH Price: $0.65 |
| 10 |
57-5200 |
GRASS SHIELD ASM Price: $136.52 |
| 12 |
52-3100 |
BOLT-HOC ECCENTRIC, LH Price: $47.11 |
| 13 |
3254-6 |
WASHER-LOCK, INTERNAL Price: $0.31 |
| 14 |
237-84 |
GROMMET Price: $1.12 |
| 15 |
57-9910 |
PIVOT SCREW Price: $6.45 |
| 16 |
77-1080 |
ADJUST-HOC, LH Price: $88.45 |
| 17 |
52-3120 |
ROLLER ASM Price: $180.27 |
| 18 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 19 |
52-3180 |
BEARING-ROLLER, FRONT This part replaces 21-8430. Price: $31.50 |
| 20 |
3246-2 |
SCREW-SET, HSH Price: $0.54 |
| 21 |
12-0460 |
CAPLUG Price: $2.84 |
| 22 |
323-2 |
SCREW-HH Price: $0.68 |
| 23 |
65-8600 |
KNOB-ADJUSTMENT, HEIGHT Price: $43.42 |
| 24 |
253-61 |
SEAL-OIL Price: $9.11 |
| 25 |
3296-60 |
NUT-LOCK, NI Price: $5.08 |
| 26 |
253-96 |
SEAL-OIL Price: $6.85 |
| 27 |
302-40 |
FITTING-GREASE, 90 DEG Price: $1.70 |
| 28 |
137-8580 |
ES REEL-SPA 4 BOLT, 11 BLD This part replaces 12-2789. Price: $507.81 |
| 29 |
57-3210 |
SCREW Price: $2.28 |
| 30 |
3255-9 |
WASHER-LOCK Price: $0.28 |
| 31 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 33 |
3295-46 |
RIVET Price: $0.34 |
| 35 |
321-5 |
SCREW-HH Price: $0.22 |
| 36 |
104-2065 |
SCREW-HWH This part replaces 32144-73. Price: $0.28 |
| 37 |
57-5210 |
SHIELD FLAP Price: $7.02 |
| 38 |
36-7260 |
BAR-OFF, CUT Price: $24.10 |
| 39 |
52-3110 |
BOLT-HOC SHOULDER, RH Price: $31.65 |
| 40 |
32128-36 |
NUT-HF Price: $1.56 |
| 41 |
3256-22 |
WASHER-FLAT Price: $0.39 |

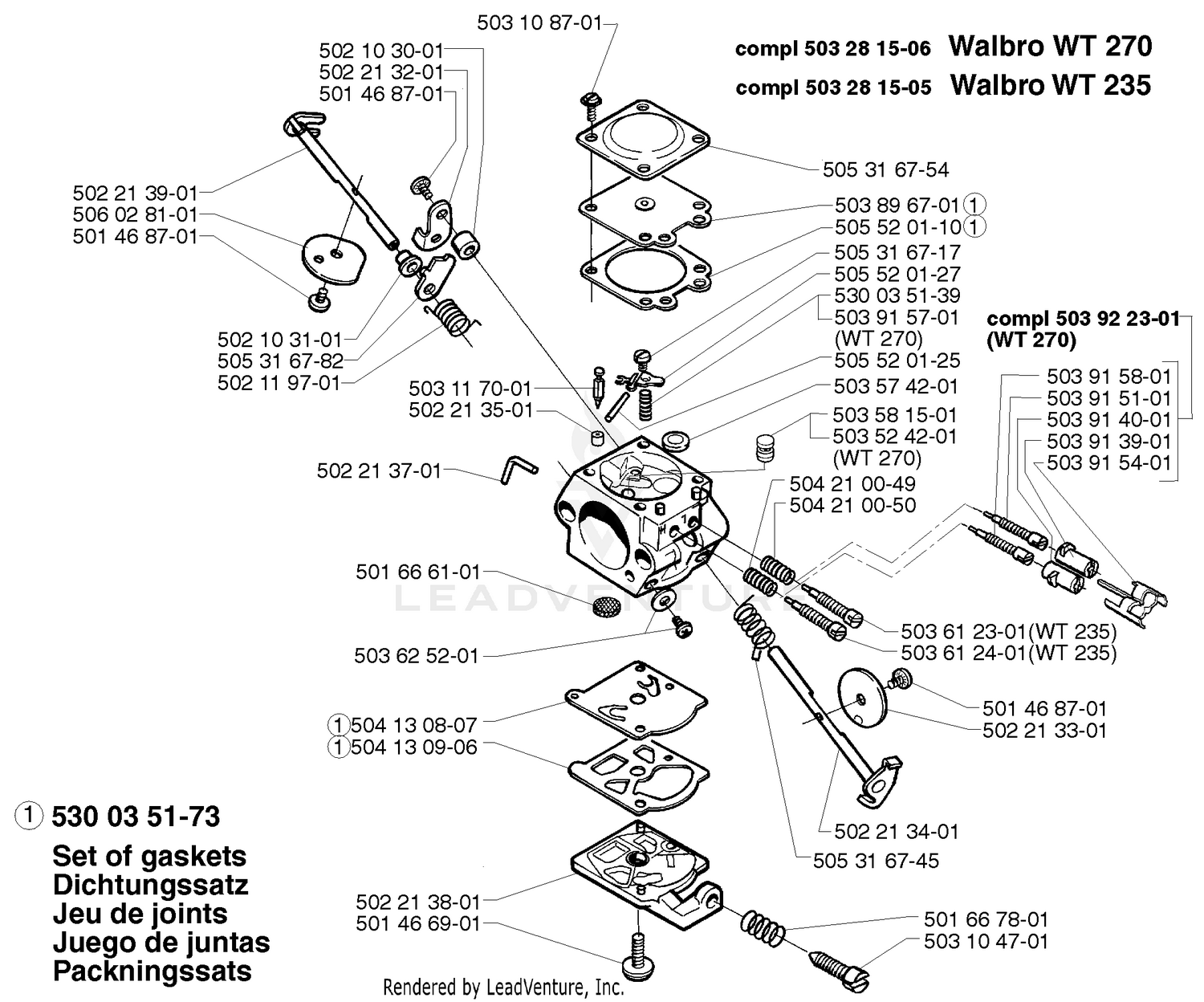

| 501466901 |
501466901 |
SCREW Price: $7.99 |
| 501468701 |
501468701 |
SCREW Price: $6.99 |
| 501666101 |
501666101 |
FUEL INLET SCREEN Price: $12.99 |
| 501667801 |
530035121 |
IDLE SCREW SPRING This part replaces 501667801. Price: $2.99 |
| 502103001 |
502103001 |
SPACER Price: $11.99 |
| 502103101 |
502103101 |
BUSHING Price: $9.99 |
| 502119701 |
502119701 |
SPRING Price: $0.99 |
| 502213201 |
502213201 |
LEVER, THROTTLE Price: $2.99 |
| 502213301 |
502213301 |
Throttle Flap Price: $0.84 |
| 502213401 |
502213401 |
SHAFT ASSY, THROTTLE Price: $3.99 |
| 502213501 |
502213501 |
Plug Price: $10.05 |
| 502213701 |
502213701 |
FUEL LINE FITTING Price: $5.99 |
| 502213801 |
502213801 |
Cover, Fuel Price: $3.71 |
| 502213901 |
502213901 |
CHOKE SHAFT Price: $3.99 |
| 503104701 |
503104701 |
SCREW Price: $9.99 |
| 503108701 |
503584601 |
SCREW This part replaces 503108701. Price: $2.99 |
| 503117001 |
503117001 |
VALVE/INLET. Price: $19.99 |
| 503281505 |
577133001 |
CARBURETOR WT-964-1 This part replaces 503281505. Price: $74.99 |
| 503281506 |
577133001 |
CARBURETOR WT-964-1 This part replaces 503281506. Price: $74.99 |
| 503524201 |
503524201 |
NOZZLE Price: $8.58 |
| 503574201 |
503574201 |
WELCH PLUG Price: $6.99 |
| 503581501 |
503581501 |
JET Price: $4.99 |
| 503612301 |
503612301 |
Lo-Speed Needle Price: $2.17 |
| 503612401 |
503612401 |
HI SPEED NEEDLE Price: $2.23 |
| 503625201 |
503625201 |
SCREW Price: $0.55 |
| 503896701 |
503896701 |
DIAPHRAGM Price: $44.99 |
| 503913901 |
503913901 |
LIMITER CAP Price: $2.99 |
| 503914001 |
503914001 |
LIMITER CAP Price: $4.99 |
| 503915101 |
503915101 |
ADJUSTING SCREW Price: $7.99 |
| 503915401 |
503915401 |
CAP Price: $7.99 |
| 503915701 |
503915701 |
SPRING Price: $4.99 |
| 503915801 |
503915801 |
NEEDLE. Price: $4.99 |
| 503922301 |
503922301 |
LIMITER CAP & SCREW SET Price: $44.99 |
| 504130807 |
504130807 |
PUMP DIAPHRAGM Price: $27.99 |
| 504210049 |
504210049 |
SPRING, H-NEEDLE Price: $11.99 |
| 504210050 |
530035293 |
NEEDLE SPRING This part replaces 504210050. Price: $2.99 |
| 505316717 |
505316717 |
SCREW Price: $6.99 |
| 505316745 |
505316745 |
SPRING Price: $2.99 |
| 505316754 |
505316754 |
DIAPHRAGM COVER Price: $3.99 |
| 505316782 |
505316782 |
STARTER LEVER Price: $2.99 |
| 505520110 |
505520110 |
GASKET, METERING SIDE Price: $3.99 |
| 505520125 |
505520125 |
FULCRUM PIN Price: $6.99 |
| 505520127 |
505520127 |
LEVER Price: $4.99 |
| 506028101 |
506028101 |
FLAP Price: $2.99 |
| 530035139 |
530035188 |
SPRING-METERING LEVER This part replaces 530035139. Price: $3.99 |
| 530035173 |
530069844 |
GASKET/DIAPHRAGM KIT This part replaces 530035173. Price: $17.99 |
