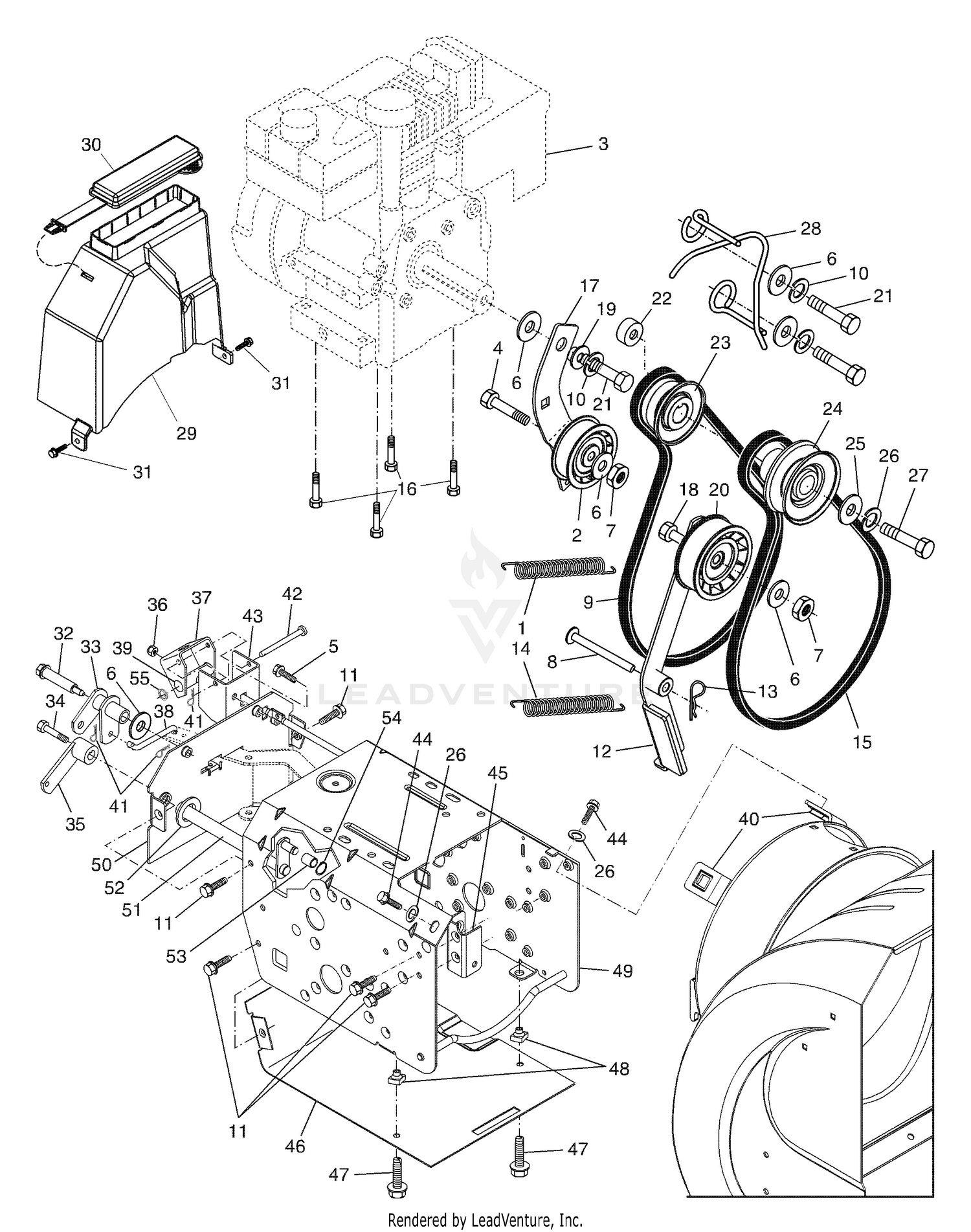

| Ref | Part Number | Description |
|---|
| 1 |
532414557 |
SPRING.TRACTION.IDLER This part replaces 532181044. Price: $4.99 |
| 1 |
94-2672 |
CHUTE ASSEMBLY This part replaces 44-5300. Price: $596.99 |
| 2 |
3290-409 |
RIVET Price: $0.34 |
| 2 |
532180522 |
PULLEY.W/SPACER.2.25 Price: $22.99 |
| 4 |
595305701 |
Screws This part replaces 874780520. Price: $3.99 |
| 4 |
82-5510 |
DECAL-WARNING Price: $7.09 |
| 5 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 532150078. Price: $4.99 |
| 5 |
56-4780-03 |
IMPELLER ASM This part replaces 56-4780. Price: $926.99 |
| 6 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 6 |
532059289 |
STEEL WASHER Price: $3.99 |
| 7 |
59-5070-03 |
MTG PLATE ASM This part replaces 59-5070. Price: $328.99 |
| 7 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 8 |
532175330 |
PIN, IDLER PIVOT Price: $4.99 |
| 8 |
74-0910-03 |
BRACKET This part replaces 59-4980. Price: $63.99 |
| 9 |
532416954 |
V-BELT.TRACTION This part replaces 532179092. Price: $27.99 |
| 9 |
59-5050 |
LH BRACKET ASM, WELDED Price: $122.99 |
| 10 |
59-5140-03 |
BLOWER MT ASM This part replaces 59-5140. Price: $186.99 |
| 10 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 11 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 11 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 12 |
532422762 |
KIT.SERVCE.IDLER.PULLEY This part replaces 532179259. Price: $79.99 |
| 12 |
62-6520 |
KNOB Price: $7.79 |
| 13 |
3257-40 |
KEY Price: $7.99 |
| 13 |
532085179 |
RETAINER CLIP PM Price: $3.99 |
| 14 |
53-4530-03 |
GEAR BOX ASM This part replaces 53-4530. Price: $1,650.99 |
| 14 |
532178828 |
SPRING, BRAKE Price: $4.99 |
| 15 |
532408008 |
BELT-V.IMPELLER.DRIVE This part replaces 532183534. Price: $44.99 |
| 15 |
59-5150-01 |
GEARBOX COVER This part replaces 59-5150. Price: $41.91 |
| 16 |
3255-17 |
WASHER-LOCK, EXT Price: $0.29 |
| 16 |
532192306 |
BOLT, ENGINE, 3/8-16 Price: $2.99 |
| 17 |
3290-134 |
SCREW Price: $0.27 |
| 17 |
585238401 |
ARM.ASM.TRACTION.IDLER. This part replaces 532184804. Price: $27.99 |
| 18 |
323-7 |
SCREW-HH Price: $0.65 |
| 18 |
596582201 |
Bolts This part replaces 874780524. Price: $2.99 |
| 19 |
587343701 |
BUSHING.BRAKE.ARM This part replaces 532175331. Price: $5.99 |
| 19 |
74-0910-03 |
BRACKET This part replaces 59-5000. Price: $63.99 |
| 20 |
32152-1 |
NUT-LOCK, CONE Price: $1.49 |
| 20 |
594095301 |
Pulleys This part replaces 532180523. Price: $9.99 |
| 21 |
3218-3 |
NUT-JAM Price: $0.25 |
| 21 |
874610516 |
SCREW Price: $3.99 |
| 22 |
532179371 |
SPACER, ENGINE PULLEY Price: $7.99 |
| 22 |
59-5090 |
RH BRACKET ASM, WELDED Price: $129.99 |
| 23 |
322-3 |
SCREW-HH Price: $0.79 |
| 23 |
595926601 |
PULLEY This part replaces 532180478. Price: $27.99 |
| 24 |
44-5460-03 |
LH PLT BRKT This part replaces 44-5460. Price: $16.99 |
| 24 |
532426492 |
PULLEY.ENG.IMPELLER.SNOW This part replaces 532178813. Price: $17.99 |
| 25 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 25 |
532062735 |
WASHER Price: $3.99 |
| 26 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 26 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 27 |
3296-44 |
NUT-LOCK, NI Price: $2.46 |
| 27 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 28 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 28 |
532191102 |
GUIDE BELT WELDMENT Price: $17.96 |
| 29 |
532443030 |
COVER.ASM.BELT.EURO.TRIMMED This part replaces 532192193. Price: $27.99 |
| 29 |
63-9710 |
SPACER-BEARING Price: $10.24 |
| 30 |
321-3 |
SCREW-HH Price: $0.28 |
| 30 |
532178830 |
COVER.STORAGE.SNOW Price: $2.99 |
| 31 |
13-0269 |
BLOWER HOUSING ASM Price: $579.99 |
| 31 |
596437001 |
Screws This part replaces 817490408. Price: $2.99 |
| 32 |
37-6730 |
CUP-BEARING Price: $15.84 |
| 32 |
532179256 |
BOLT, SHOULDER 5/16-18 Price: $2.99 |
| 33 |
38-7820 |
BEARING-BALL Price: $13.99 |
| 33 |
532187853 |
BELLCRANK SHIFTER Price: $12.99 |
| 34 |
532180401 |
SCREW Price: $2.99 |
| 34 |
63-9700-03 |
PLATE-COVER This part replaces 63-9700. Price: $18.43 |
| 35 |
43-0940 |
SPACER Price: $1.25 |
| 35 |
532179240 |
ARM, AUGER CONTROL Price: $3.99 |
| 36 |
3235-22 |
SCREW-HH, LOCK Price: $2.59 |
| 36 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 37 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 37 |
532184086 |
BRACKET, PIVOT Price: $3.99 |
| 38 |
43-0960-03 |
BRACKET-CHUTE This part replaces 43-0960. Price: $18.26 |
| 38 |
532187101 |
LINK, SPEED CONTROL Price: $64.99 |
| 39 |
532192110 |
TRUNNION, TRACTION Price: $7.99 |
| 40 |
532178820 |
NUT, CAGE 3/8-16 This part replaces 532178890. Price: $5.99 |
| 41 |
532700279 |
RETAINER CLIP Price: $2.99 |
| 42 |
532179065 |
PIN, PIVOT BRACKET Price: $8.99 |
| 43 |
532184085 |
BRACKET Price: $2.69 |
| 44 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 This part replaces 874780624. Price: $6.99 |
| 45 |
532422762 |
KIT.SERVCE.IDLER.PULLEY This part replaces 532184074. Price: $79.99 |
| 46 |
532178624 |
PAN, FRAME BOTTOM This part replaces 532184084. Price: $17.99 |
| 47 |
871020512 |
Screw, Hex Head 5/16-18 x 3/4 Price: $2.99 |
| 48 |
532181156 |
NUT.SPEED.5/16-18 Price: $3.99 |
| 49 |
532404431 |
FRAME.WELDMENT.SNOW.ORANGE This part replaces 532184073. Price: $64.99 |
| 50 |
583706301 |
END.PLATE.DS.SNOW.BLACK This part replaces 532188002. Price: $14.99 |
| 51 |
532419877 |
KIT.CONTROL.SHAFT. This part replaces 532192908. Price: $76.99 |
| 52 |
532057079 |
THRUST WASHER Price: $1.99 |
| 53 |
532192275 |
ROLLER, ACTUATOR Price: $3.99 |
| 54 |
812000002 |
RETAINING RING LT Price: $3.99 |
| 55 |
532192147 |
RING.CRESENT Price: $3.99 |
