Home / OPE / *MTD Legacy 1985-2005 / Hardware Hank / 12-Self-Propelled Walk-Behind Mowers / 1990 Models / Hardware Hank Mdl 120-280R027/083-709 / Parts

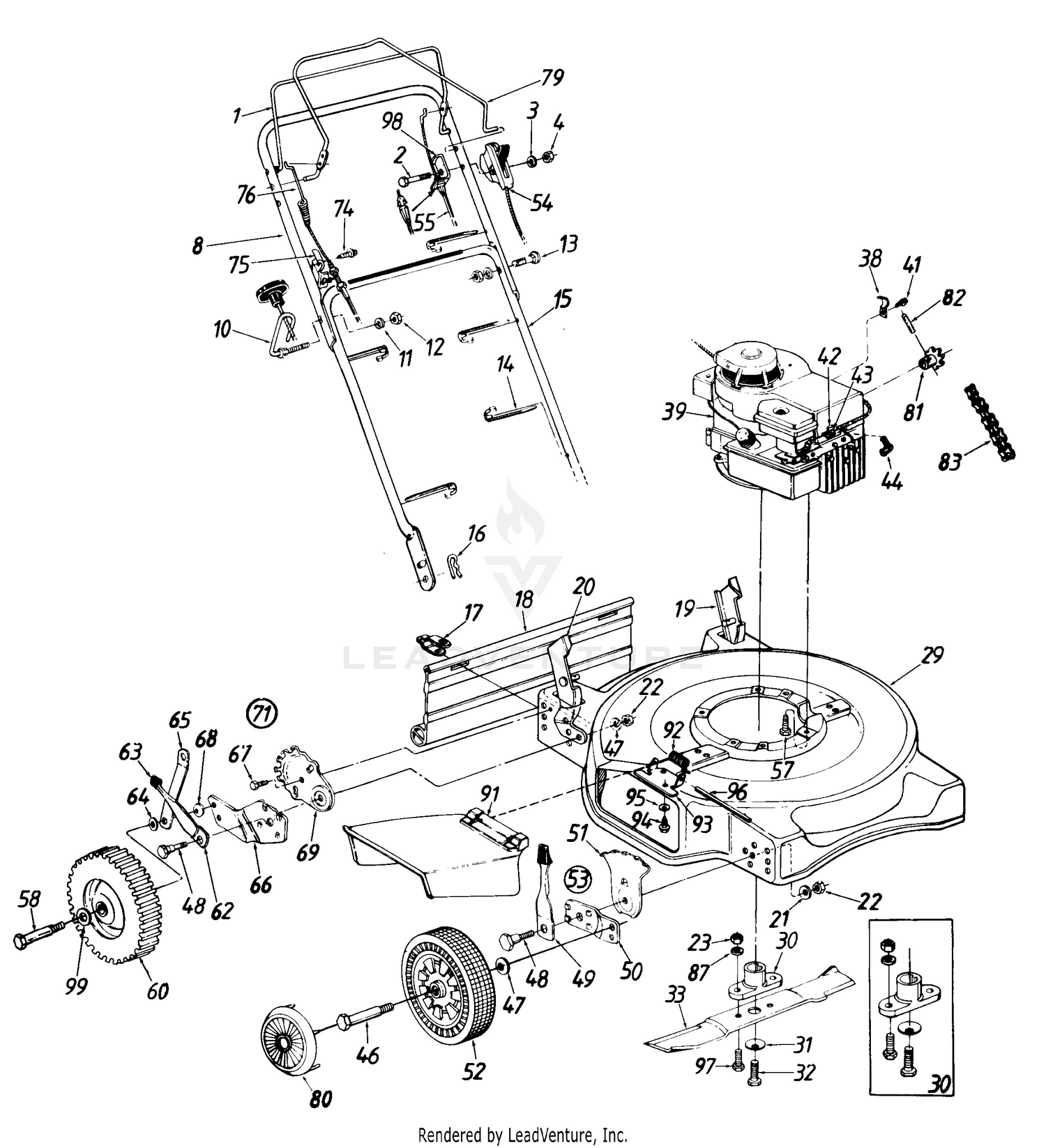

Parts

Parts

Parts (65)

RefPart NumberDescription
1 747-0748 CONTROL HANDLE ASSEMBLY Not Available Price:
2 710-0136 Hex Bolt 1/4-20 x 1.75" Lg. Price: $3.66
3 936-0175 Spring Wash. .265 I.D. x .562 O.D. This part replaces 736-0175. Price: $3.48
4 912-0287 HEX NUT 1/4-20 Not Available This part replaces 7120287. Price:
8 749-0756 UPPER HANDLE Not Available Price:
10 710-0842B SCREW-RECOIL HANDLE GUIDE Not Available Price:
11 936-0119 Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29
12 712-3010 HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89
13 710-0671 BOLT-CARRIAGE-CURV 5/16-18 x 1.38 Not Available Price:
14 725-0157 Cable Tie This part replaces 726-0240. Price: $3.46
15 749-0928A-0637 Lower Handle This part replaces 749-0372B. Price: $29.67
16 714-0104 Hairpin Cotter Price: $3.90
17 17098P HINGE CLIP Not Available This part replaces 17098. Price:
18 731-0872B Rear Flap Not Available This part replaces 731-0872. Price:
19 17189 BRACKET ASSEMBLY-H Not Available Price:
20 17188 BRACKET ASSY-HDLE-RH Not Available Price:
21 936-0356 BELL WASHER Not Available This part replaces 736-0356. Price:
22 712-0798 Hex Nut 3/8-16 Thd.* Price: $3.86
23 712-0241 Hex Nut 3/8-24 Thd. Price: $3.86
29 97046 DECK ASSEMBLY-22IN Not Available This part replaces 17046. Price:
30 753-0484 Blade Adapter Kit Price: $21.69
31 736-0452 Bell-Wash..39" I.D. Price: $4.05
32 710-1044 Hex Bolt 3/8-24 x 1.5" Lg. Price: $3.48
38 12894A CASING CLAMP Not Available Price:
39 N/A Engine
41 910-0429 Hex B-Tap Scr. #10 x .38" This part replaces 710-0429. Price: $3.20
42 751-0369 CLAMP-CONDUIT Not Available Price:
43 710-0227 Hex AB-Tap Scr. #8 x 38" Lg. Price: $3.90
46 738-0102 Front Axle Bolt Price: $9.22
47 736-0105 Bell-Wash. .400" I.D. x .88" Price: $3.96
48 738-0507B Shld. Bolt .50" Dia. x .357" Price: $3.86
49 94832 Front Spring Lever This part replaces 14832. Price: $9.48
50 15262B Pivot Bar Price: $13.59
51 787-01290A Height Adjustment Plate This part replaces 15261A. Price: $10.58
52 N/A Front Wheel Ass'y. Comp.
53 753-06761 Height Adj. Ass'y. Comp. (R.H.) This part replaces 14578. Price: $57.55
54 946-0802A Throttle Control Ass'y. Comp.- 0 51 .6211 Not Available This part replaces 746-0801. Price:
55 946-0550 Control Cable 39" This part replaces 746-0550. Price: $20.12
57 710-0654A Hex L-Wash. Hd. Scr. 3/8-16 x 1.0" Lg. Price: $3.75
58 738-0102 Rear Axle Bolt Price: $9.22
60 N/A Rear Wheel Ass'y. Comp.
62 732-0417A SPRING LEVER Not Available Price:
63 731-13116-1 HEIGHT ADJUSTMENT KNOB This part replaces 720-0190. Price: $12.01
64 736-0192 Fl-Wash. .531" I.D. x .93" Price: $3.75
65 14760A LINK 4.58" LG. Not Available Price:
66 14765 BAR-PIVOT (RH) *ON Not Available Price:
67 710-0892 SCREW 1/4-14 x .625 Not Available Price:
68 736-0105 Bell-Wash. .380" I.D. x .88" Price: $3.96
69 14764C Index Plate Not Available Price:
71 16106 ADJUSTER-H Not Available Price:
74 710-0726 Hex Wash. AB-Tap Scr. 5/16 x.75" Lg. Price: $3.82
75 16309A CABLE BRACKET MOUNTING Not Available Price:
76 746-0628 CLUTCH CABLE W/SPRING-32" Not Available Price:
79 747-0749A CONTROL HANDLE ASSEMBLY Not Available This part replaces 747-0749. Price:
81 713-0308 SPROCKET-10T Not Available Price:
82 715-0247 SPRING PIN Not Available Price:
87 736-0169 L-Wash. 3/8" I.D. Price: $3.33
91 931-1034B CHUTE DEFLECTOR Not Available This part replaces 731-1034. Price:
92 932-0593 Torsion Spring This part replaces 732-0593. Price: $4.24
93 17032A PLATE-ADAPTER Not Available This part replaces 17032. Price:
94 710-0599 Hex Self-Tap Scr. 1/4-20 x .5" Lg. Price: $3.86
95 736-0270 SPRING WASHER BELL Price: $3.63
96 747-0710A Hinge Pin This part replaces 747-0710. Price: $3.86
97 710-1055 SCREW 3/8-24 C 1.00 GR5 Not Available Price:
98 17173 BRACKET-CA Not Available Price:
