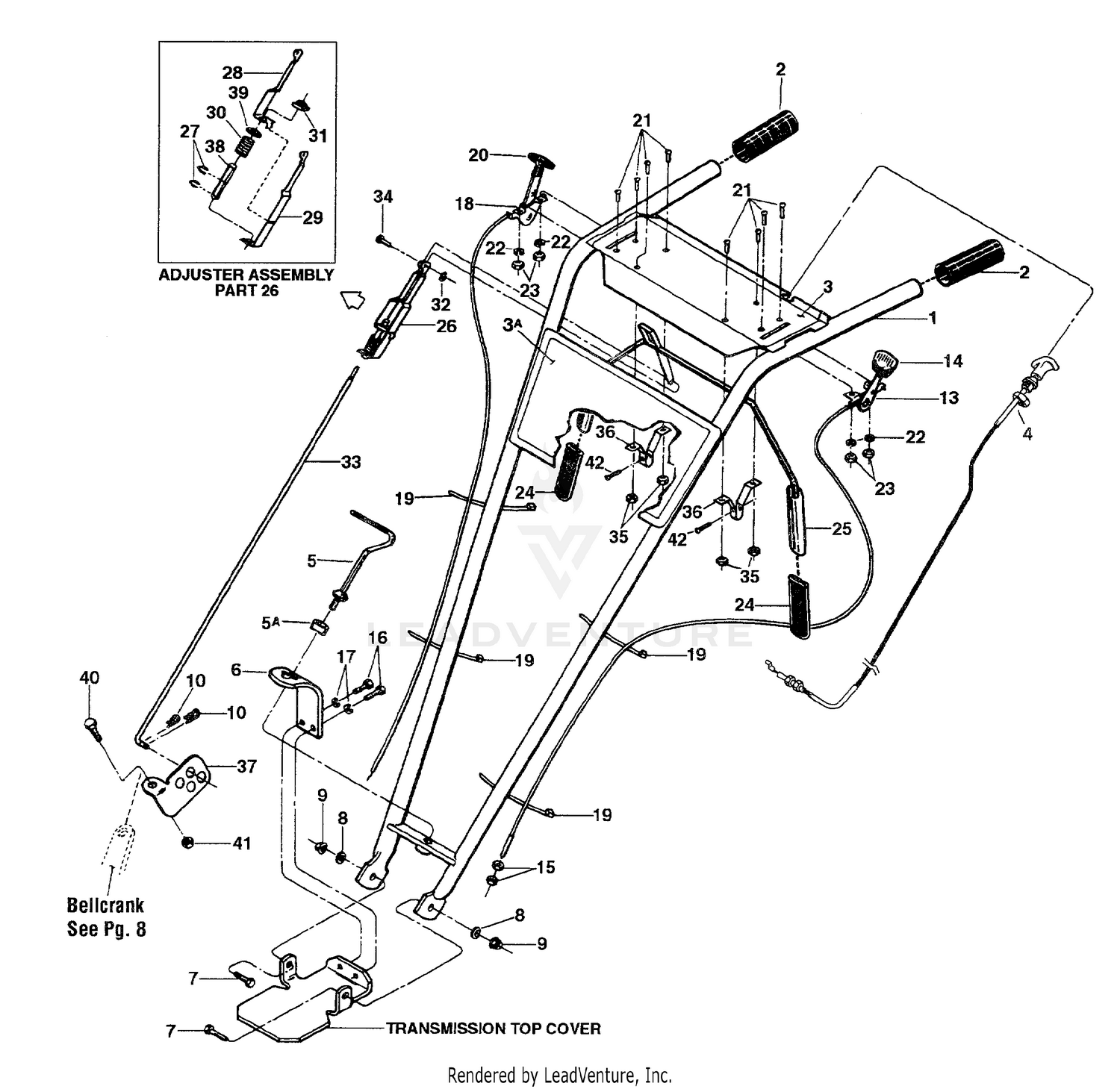

| Ref | Part Number | Description |
|---|
| 2 |
720-0274 |
Handle Grip This part replaces 9126. Price: $9.99 |
| 3 |
1916933 |
HANDLE BAR Not Available Price: |
| 3A |
20924 |
DECAL, MODEL NAME/LOGO Not Available Price: |
| 4 |
1916784P |
Reverse Clutch Control Cable This part replaces 1916784. Price: $63.82 |
| 5 |
20703 |
HEX SCREW Not Available Price: |
| 5A |
736-04445 |
Keyed Washer This part replaces 9955. Price: $3.65 |
| 6 |
1900475010 |
PLATE-HANDLEBAR ADJUST This part replaces 1900475001. Price: $19.83 |
| 8 |
736-3050 |
Washer, Plain (flat) 3/8, S.A.E. This part replaces 9904. Price: $3.90 |
| 9 |
712-3000 |
Hex Lock Nut, 3/8-16 This part replaces 9837. Price: $3.90 |
| 10 |
714-04048 |
PIN - hair cotter This part replaces 9338. Price: $7.04 |
| 14 |
GW-9057 |
Knob, Wheel Gear Control Lever This part replaces 9057. Price: $7.12 |
| 15 |
912-3057 |
NUT-5/16X 24 This part replaces 1186211. Price: $5.94 |
| 17 |
736-0169 |
L-Wash. 3/8" I.D." This part replaces 1100243. Price: $3.33 |
| 18 |
1916900 |
THROTTLE CABLE ASSEMBLY Not Available Price: |
| 20 |
731-0108 |
Knob, Throttle Control This part replaces 9212. Price: $8.12 |
| 21 |
1114748 |
Screw-round hd, No. 10-32 x 1/2 Price: $5.16 |
| 22 |
1100240 |
WASHER-LK Not Available Price: |
| 23 |
1186208 |
Nut-hex, No. 10-32 Not Available Price: |
| 24 |
GW-9390 |
Grip This part replaces 9390. Price: $4.26 |
| 27 |
GW-9532 |
Clip Ring This part replaces 9532. Price: $3.22 |
| 28 |
20808 |
ADJUSTER-RT SIDE Not Available Price: |
| 29 |
GW-20809 |
ADJUSTER-LT SIDE O Not Available This part replaces 20809. Price: |
| 30 |
9059 |
Spring-Adjuster Price: Call Us |
| 31 |
9522 |
Nut-rectangular Price: Call Us |
| 32 |
9386 |
Klip Ring Price: Call Us |
| 33 |
20831 |
CONTROL ROD OPC Not Available Price: |
| 34 |
97083 |
Pin-Clevis Price: Call Us |
| 35 |
GW-9853 |
Sems Nut This part replaces 9853. Price: $6.01 |
| 36 |
GW-20806 |
Bracket, Bail Support This part replaces 20806. Price: $7.83 |
| 37 |
20888 |
SWIVEL Not Available Price: |
| 38 |
9432 |
Bushing Price: Call Us |
| 39 |
9973 |
Washer Price: Call Us |
| 41 |
9811 |
Nut-1/4-20 Price: Call Us |
