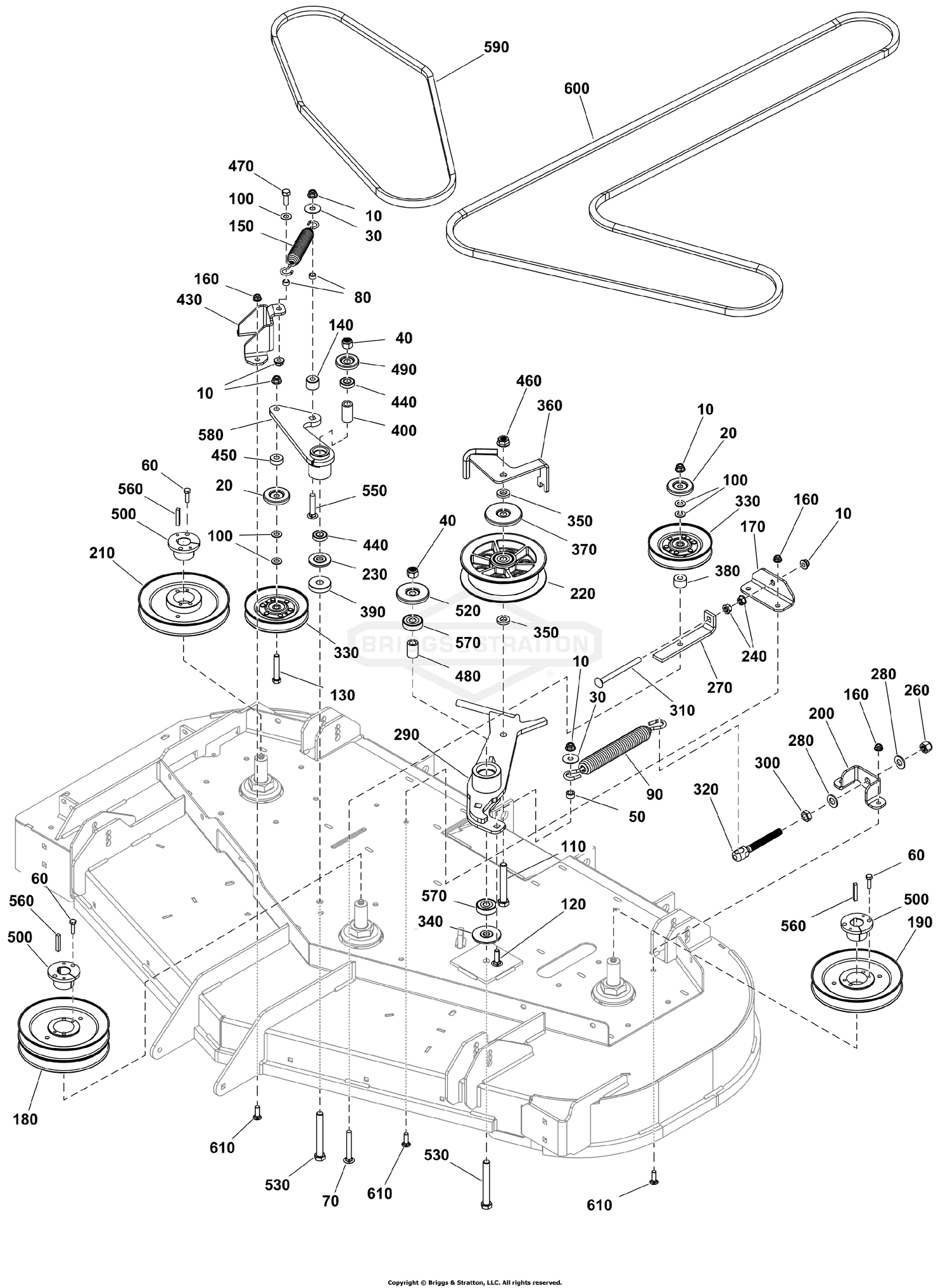

| Ref | Part Number | Description |
|---|
| 10 |
5025394SM |
NUT, 3/8-16 HEX NYLOCK Price: $3.82 |
| 20 |
5105033YP |
SHIELD Price: $3.07 |
| 30 |
5025165SM |
WASHER, 3/8" FENDER Price: $3.51 |
| 40 |
5025056FS |
NUT Price: $3.98 |
| 50 |
5105297YP |
SPACER Price: $5.50 |
| 60 |
5025010X8SM |
BOLT, 1/4-20 X 1", GD Price: $3.29 |
| 70 |
7092000SM |
CARRIAGE BOLT, 3/8C X2-3/4 GR5 YZ This part replaces 5025146X22YP. Price: $3.61 |
| 80 |
5041930SM |
SPACER, .38 X .50 X . Price: $4.29 |
| 90 |
5105068YP |
SPRING Price: $70.54 |
| 100 |
5025156FS |
WASHER Price: $3.15 |
| 110 |
5025017X28SM |
BOLT, 1/2-13 X 3-1/2" Price: $5.00 |
| 120 |
703130 |
BOLT Price: $3.61 |
| 130 |
5025013X18SM |
BOLT, 3/8-16 X 2-1/4" Price: $3.51 |
| 140 |
5043815YP |
SPACER Price: $9.81 |
| 150 |
5022847SM |
SPRING, EXTENSION, SW Price: $31.96 |
| 160 |
703115 |
NUT This part replaces 5025392FS. Price: $3.06 |
| 170 |
84007961 |
PLATE, PULLER MOUNT, SPRING-BLK Price: $8.80 |
| 180 |
84003250 |
PULLEY Price: $90.39 |
| 190 |
84003249 |
PULLEY Price: $44.09 |
| 200 |
84007962 |
PLATE, IDLER BOLT, LONG-BLK Price: $16.17 |
| 210 |
84003248 |
PULLEY Price: $54.01 |
| 220 |
84007049 |
PULLEY ASSEMBLY Price: $78.26 |
| 230 |
5103262YP |
SPACER, IDLER ARM Price: $7.16 |
| 240 |
5025128SM |
NUT, 3/8-16 HEX SERRA Price: $2.97 |
| 260 |
5025098SM |
NUT, 1/2-20 HEX NYLON Price: $5.32 |
| 270 |
5415374AYP |
PLATE Price: $11.39 |
| 280 |
5025158SM |
WASHER, 1/2" SAE Price: $3.51 |
| 290 |
84003252 |
ARM, IDLER Price: $93.69 |
| 300 |
5025089SM |
NUT, 1/2-20 HEX JAM Price: $3.51 |
| 310 |
5025146X36YP |
BOLT Price: $3.62 |
| 320 |
5105844YP |
ANCHOR, SPRING Price: $14.70 |
| 330 |
84004874 |
PULLEY Price: $30.86 |
| 340 |
5104379YP |
SPACER Price: $8.26 |
| 350 |
5100520SM |
SPACER .515X1.00X.218 Price: $5.61 |
| 360 |
84003253 |
GUIDE, BELT Price: $40.78 |
| 370 |
5105041YP |
SHIELD Price: $3.19 |
| 380 |
5100334SM |
SPACER Price: $6.93 |
| 390 |
84003251 |
SPACER Price: $4.73 |
| 400 |
5103812YP |
SPACER, .52 X .84 X 1 Price: $7.16 |
| 430 |
84007963 |
PLATE, SPRING MOUNT - BLK Price: $5.61 |
| 440 |
7078243YP |
BEARING, BALL, AXLE Price: $9.37 |
| 450 |
5105429YP |
SPACER Price: $3.63 |
| 460 |
770225 |
NUT Price: $2.76 |
| 470 |
5025013X8SM |
BOLT, 3/8-16 X 1" GD5 Price: $3.29 |
| 480 |
5104456YP |
SPACER, .51 X .84 X 1 Price: $3.85 |
| 490 |
84007959 |
SHIELD, BEARING, 1/2" ID-1.75" Price: $3.17 |
| 500 |
5020819SM |
BUSHING, Tapered Hub (Includes bolts) Price: $23.97 |
| 520 |
84007958 |
SHIELD, BEARING, 1/2" ID-2.5" Price: $2.04 |
| 530 |
5025017X32YP |
BOLT, 1/2-13 X 4 GD5 Price: $5.42 |
| 550 |
5025146X16SM |
BOLT, 3/8-16 X 2", CA Price: $3.62 |
| 560 |
5022726YP |
KEY 1/4 SQ X 1 1/2 Price: $4.62 |
| 570 |
5104383YP |
BEARING Price: $8.95 |
| 580 |
84007960 |
WELD, IDLER ARM, RH BELT - BLK Price: $58.29 |
| 590 |
5104780YP |
BELT Price: $43.16 |
| 600 |
5104982YP |
BELT Price: $92.35 |
