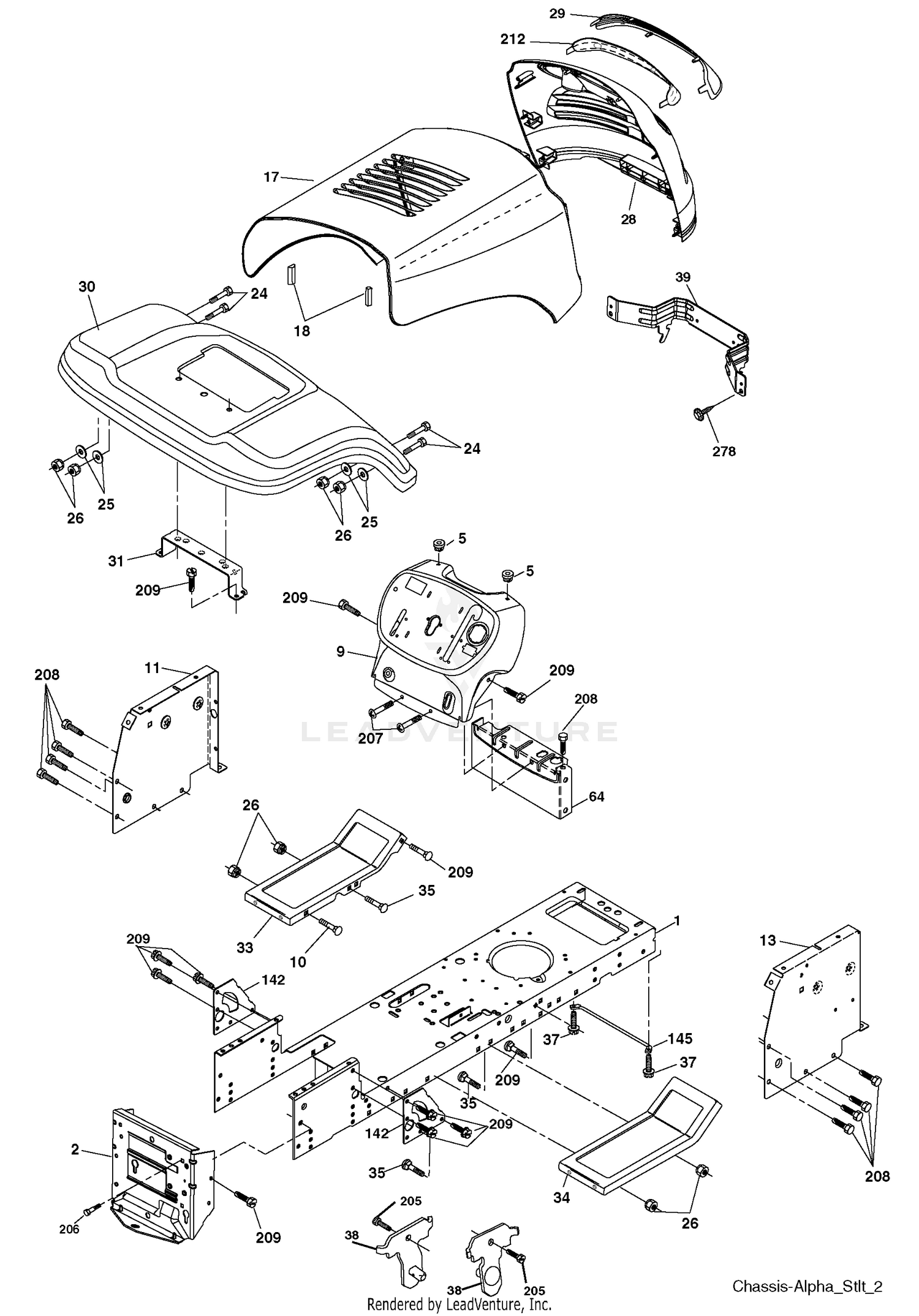

| Ref | Part Number | Description |
|---|
| 1 |
174619 |
Chassis Price: Call Us |
| 2 |
176554 |
Drawbar, Stretch Price: Call Us |
| 5 |
155272 |
Bumper, Hood/Dash Price: Call Us |
| 9 |
193510X010 |
Dash Price: Call Us |
| 010 |
112-8415 |
PISTON ASM This part replaces 98-9470. Price: $456.30 |
| 010 |
115-4127 |
PISTON KIT This part replaces 98-9469. Price: $518.71 |
| 10 |
72140608 |
Bolt, Carriage 3/8-16 x 1 Price: Call Us |
| 11 |
174996 |
Panel Dash LH Price: Call Us |
| 13 |
172105X010 |
Panel Slkscr Dash RH Price: Call Us |
| 17 |
187559X505 |
Hood Price: Call Us |
| 18 |
184921 |
Bumper Hood Price: Call Us |
| 020 |
98-9618 |
PISTON RING ASM (STD) Price: $102.14 |
| 020 |
98-9619 |
PISTON RING ASM (0.5MM) Price: $96.35 |
| 24 |
74780616 |
Bolt Fin Hex 3/8-16 unc x 1 Gr. 5 Price: Call Us |
| 25 |
19131312 |
Washer 13/32 x 13/16 x 12 Ga. Price: Call Us |
| 26 |
73800600 |
Nut Lock Hex w/Ins 3/8-16 unc Price: Call Us |
| 29 |
187567X599 |
Lens Grille Basic Bar Price: Call Us |
| 030 |
98-9513 |
PIN-PISTON Price: $13.17 |
| 30 |
192526X505 |
Fender Price: Call Us |
| 31 |
136619 |
Bracket Fender Repl 109873X Price: Call Us |
| 33 |
179716X505 |
Footrest Pnt LH Price: Call Us |
| 34 |
179717X505 |
Footrest Pnt RH Price: Call Us |
| 35 |
72110606 |
Bolt Rdhd Sht Sqnk 3/8-16 x 3/4 Price: Call Us |
| 37 |
17490508 |
Screw Thdrol 5/16-18 x 1/2 TYT Price: Call Us |
| 38 |
175710 |
Bracket Asm. Pivot Mower Price: Call Us |
| 39 |
187568 |
Bracket Pivot Price: Call Us |
| 040 |
98-9514 |
CIRCLIP-PIN, PISTON Price: $2.79 |
| 050 |
117-7586 |
CONNECTING ROD ASM This part replaces 98-9516. Price: $547.99 |
| 060 |
115-3014 |
BUSHING-PIN, PISTON This part replaces 98-9515. Price: $19.81 |
| 64 |
154798 |
Dash Lower Price: Call Us |
| 070 |
98-9517 |
BOLT-ROD, CONNECTING Price: $10.31 |
| 080 |
117-7588 |
METAL-CRANKPIN (-0.4MM) This part replaces 98-9520. Price: $49.06 |
| 080 |
98-9519 |
BEARING-ROD (-0.2MM) Price: $43.73 |
| 080 |
98-9553 |
BEARING-ROD (STD) This part replaces 98-9518. Price: $52.92 |
| 090 |
98-9642 |
CRANKSHAFT ASM Price: $4,332.74 |
| 100 |
110-3729 |
BALL This part replaces 98-7473. Price: $0.69 |
| 110 |
98-9532 |
GEAR-CRANKSHAFT Price: $169.43 |
| 120 |
98-9666 |
KEY Price: $3.58 |
| 130 |
98-9542 |
GEAR-DRIVE, OIL PUMP Price: $89.04 |
| 140 |
98-9522 |
SLEEVE-CRANKSHAFT Price: $116.47 |
| 142 |
175702 |
Plate Reinforcement Price: Call Us |
| 145 |
156524 |
Rod Pivot Chassis/Hood Price: Call Us |
| 150 |
98-9521 |
COLLAR-CRANKSHAFT Price: $84.21 |
| 160 |
105-3783 |
O-RING Price: $6.33 |
| 170 |
112-7005 |
BEARING-MAIN (STD) This part replaces 98-9523. Price: $66.99 |
| 170 |
98-9528 |
BEARING-MAIN (-0.2MM) Price: $15.04 |
| 170 |
98-9529 |
BEARING-MAIN (0.4MM) Price: $40.04 |
| 180 |
127-0433 |
METAL-CRANKSHAFT (-0.2MM) This part replaces 98-9530. Price: $60.46 |
| 180 |
98-9524 |
METAL-CRANKSHAFT (STD SET) Price: $62.26 |
| 180 |
98-9531 |
BEARING-MAIN (0.4MM) Price: $39.97 |
| 190 |
115-4121 |
METAL-CRANKSHAFT (STD) This part replaces 98-9525. Price: $86.06 |
| 190 |
98-9526 |
BEARING-MAIN (0.2MM) Price: $64.36 |
| 190 |
98-9527 |
BEARING-MAIN (0.4MM) Price: $63.74 |
| 200 |
127-0416 |
METAL-SIDE (+0.2MM) This part replaces 98-9414. Price: $21.04 |
| 200 |
98-9413 |
BEARING-THRUST (STD) Price: $16.90 |
| 200 |
98-9415 |
BEARING-THRUST (0.4MM) Price: $9.77 |
| 205 |
17490608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 206 |
170165 |
Bolt Shoulder 5/16-18 Price: Call Us |
| 207 |
17670508 |
Screw Thdrol 5/16-18 x 1/2 Price: Call Us |
| 208 |
17670608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 209 |
17000612 |
Screw Hex Wsh Thdrol 3/8-16 Price: Call Us |
| 210 |
127-0437 |
METAL-SIDE (+0.2MM) This part replaces 98-9689. Price: $18.42 |
| 210 |
127-0438 |
METAL-SIDE (+0.40MM) This part replaces 98-9690. Price: $12.65 |
| 212 |
187569 |
Insert Lens Refl ect Price: Call Us |
| 278 |
191611 |
Screw 10 x 3/4 Single Lead-Hex Price: Call Us |
| 278 |
5479J |
Plug Button Blk 359 Dia Choke Price: Call Us |
