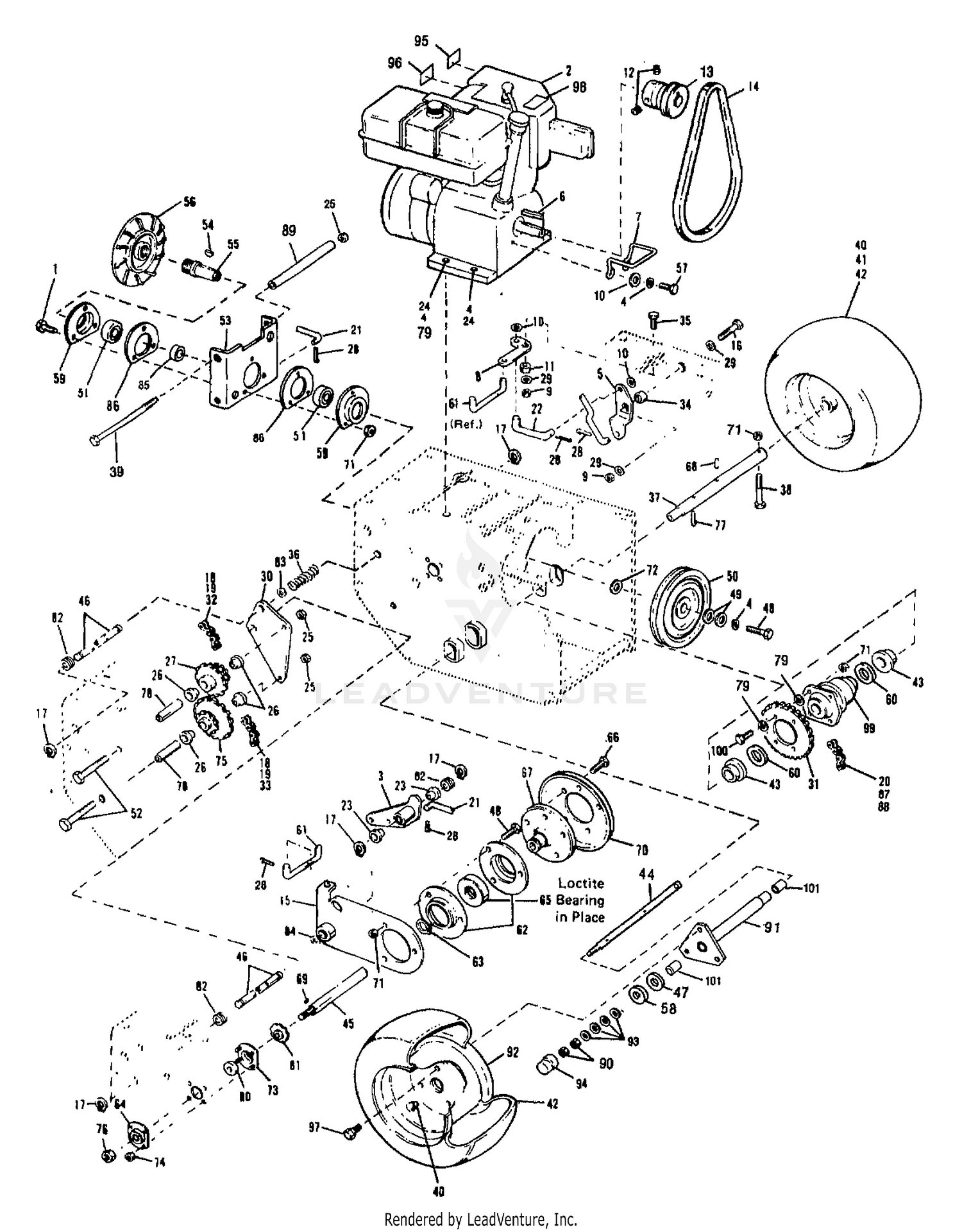

| Ref | Part Number | Description |
|---|
| 2 |
N/A |
TECUMSEH ENGINE HMSK80-155282L |
| 3 |
1745485 |
ASSM-CONTR Not Available Price: |
| 5 |
1745441 |
ARM-CONTROL Price: Call Us |
| 6 |
1187474 |
KEY-.25 SQ Not Available Price: |
| 7 |
1749177 |
BELT GUIDE Not Available Price: |
| 8 |
1745438 |
CONTROL ARM Not Available Price: |
| 9 |
712-3000 |
Hex Lock Nut, 3/8-16 This part replaces 1733398. Price: $3.90 |
| 11 |
1745419 |
SPACER-PIV Not Available Price: |
| 12 |
1741846 |
SCR SET 5/ Not Available Price: |
| 13 |
1754323 |
SHEAVE-ENGINE Price: Call Us |
| 14 |
1751601 |
BELT-V 32" Price: $17.91 |
| 15 |
1745483 |
DRIVE SUPPORT Not Available Price: |
| 17 |
1118808 |
RETAINING RING Not Available Price: |
| 18 |
0182087 |
LINK-OFFSET (HALF LINK) Not Available Price: |
| 20 |
1741688 |
CHAIN-DRIVE #40 .5 Not Available Price: |
| 21 |
1745437 |
CONTROL LINK Not Available Price: |
| 22 |
1745435 |
CONTROL LINK Not Available Price: |
| 23 |
1714299 |
FLANGE BUSHING Not Available Price: |
| 26 |
1739458 |
BEARING-FL Not Available Price: |
| 27 |
1745498 |
ASSM-SPROCKET 9T/17T Price: Call Us |
| 30 |
1739497 |
SUPPORT PLATE Not Available Price: |
| 31 |
1739472 |
SPROCKET 30T Not Available Price: |
| 32 |
1745515 |
CHAIN-DRIVE Not Available Price: |
| 33 |
1745516 |
CHAIN-DRIVE Not Available Price: |
| 34 |
1739728 |
SPACER-PIV Not Available Price: |
| 36 |
1741647 |
COMPRESSION SPRING Not Available Price: |
| 37 |
1755838 |
AXLE SHAFT Not Available Price: |
| 38 |
710-3180 |
SCREW 5/16-18 x 1.75 GR5 This part replaces 1755894. Price: $4.93 |
| 39 |
1754303 |
HEX HEAD BOLT, 3/8-16 x 8-1/2 Not Available Price: |
| 40 |
934-0255 |
TUBELESS VALVE This part replaces 1718086. Price: $3.83 |
| 41 |
1757889 |
DISC-WHEEL Not Available Price: |
| 42 |
1755826 |
TIRE 4.80 Not Available Price: |
| 43 |
1739471 |
BUSHING-.875 FLNG Price: Call Us |
| 44 |
1755837 |
AXLE SHAFT Not Available Price: |
| 45 |
1739457 |
HEX SHAFT Not Available Price: |
| 46 |
1745860 |
SHAFT-SUPP Not Available Price: |
| 47 |
1746739 |
DISC-FRICT Not Available Price: |
| 49 |
736-0362 |
FLAT WASHER .322 ID X 1.25 X .060 This part replaces 1713233. Price: $3.93 |
| 50 |
1745488 |
SHEAVE-DRIVE WHEEL Price: Call Us |
| 51 |
941-3006 |
BEARING This part replaces 1743433. Price: $87.06 |
| 53 |
1754302 |
ASSM-DRIVE DISC WE Not Available Price: |
| 54 |
1185885 |
WOODRUFF KEY Not Available Price: |
| 55 |
1745535 |
SPINDLE Not Available Price: |
| 56 |
1720918 |
PLATE-DRIVE MACHINED Not Available Price: |
| 58 |
1756230 |
WASHER-D HOLE Price: Call Us |
| 59 |
1739488 |
BEARING RETAINER Not Available Price: |
| 61 |
1745436 |
LINK-CONNE Not Available Price: |
| 62 |
1739485 |
RETAINER-B Not Available Price: |
| 63 |
1736561 |
RING-SNAP Not Available Price: |
| 64 |
1720811 |
FLANGE-BEARING Not Available Price: |
| 65 |
1741733 |
BEARING-TH Not Available Price: |
| 67 |
1739490 |
FRICTION DISC HUB Not Available Price: |
| 68 |
1185376 |
PIN-DRIVE Not Available Price: |
| 69 |
1104435 |
KEY-WOODRUFF 1/8 x 5/8 Not Available Price: |
| 70 |
1720859 |
DISC-FRICTION Not Available Price: |
| 71 |
1732499 |
NUT-TOP/LK 5/16-18 ZP Price: $3.49 |
| 72 |
1709224 |
WASHER-1.12X.759X.0329 Price: Call Us |
| 73 |
1720810 |
FLANGE ASSEMBLY-BEARING Not Available Price: |
| 74 |
1983039 |
NUT-HK Not Available This part replaces 1737938. Price: |
| 75 |
1745497 |
ASSM-SPROC Not Available Price: |
| 77 |
1730483 |
PIN-DRIVE .187X1.0 Not Available Price: |
| 78 |
1739476 |
SPACER-.62X.39X2.6 Not Available Price: |
| 80 |
1185808 |
BALL BEARING Not Available Price: |
| 81 |
1745495 |
SPROCKET-9T Not Available Price: |
| 82 |
1714233 |
BUSHING-.68X.62X.15 FLNG Not Available Price: |
| 83 |
736-0302 |
FLAT WASHER .632 ID x .935 ODX.048 Not Available This part replaces 1705093. Price: |
| 85 |
1745489 |
SPACER-1.0 Not Available Price: |
| 86 |
1745490 |
RETAINER-B Not Available Price: |
| 87 |
1185026 |
LINK-CONNE Not Available Price: |
| 88 |
1120213 |
LINK-OFFSET Price: Call Us |
| 89 |
1754301 |
SPACER-.5X Not Available Price: |
| 90 |
712-0206 |
HEX NUT This part replaces 1186233. Price: $3.90 |
| 91 |
1755840 |
ASSM-AXLE TUBE Price: Call Us |
| 92 |
1757881 |
DISC-WHEEL Not Available Price: |
| 93 |
1746743 |
DISC-SPRIN Not Available Price: |
| 94 |
1756231 |
DUST CAP Not Available Price: |
| 95 |
1754329 |
DECAL-CHOKE Not Available Price: |
| 96 |
1754330 |
DECAL-PRIMER @ DEPL Price: Call Us |
| 97 |
1716223 |
SCREW-LUG Not Available Price: |
| 98 |
1754328 |
DECAL-WARN.HOT SURFACES Not Available Price: |
| 99 |
1735861 |
ASSM-DIFFERENTIAL Price: Call Us |
