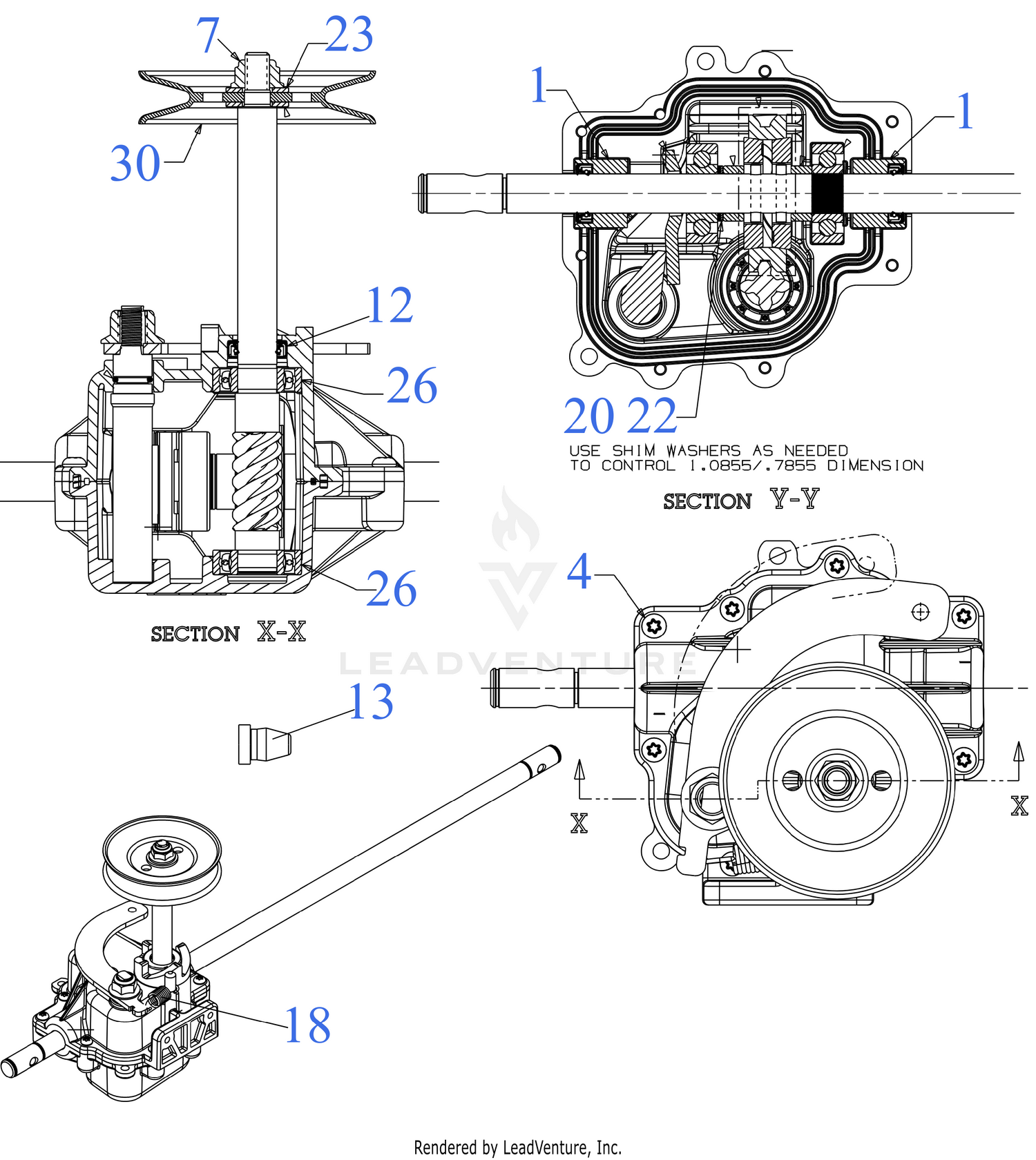

Transmission
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 721-04107A | OIL SEAL Price: $3.95 |
| 4 | 710-04329 | SCREW .159 x .610 Price: $4.13 |
| 7 | 712-04063 | FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 8 | 712-04065 | NUT Price: $3.68 |
| 12 | 721-04107A | OIL SEAL Price: $3.95 |
| 13 | 721-04139 | RUBBER PLUG Price: $2.45 |
| 18 | 732-04313 | EXTENSION SPRING Price: $3.96 |
| 20 | 736-04202 | FLAT WASHER .504 X.700X.010 Price: $3.00 |
| 22 | 936-0520 | FLAT WASHER Price: $5.23 |
| 23 | 736-0864 | THRUST WASHER Price: $3.71 |
| 25 | 490-000-C051 | Cub Cadet DRIVE SYSTEM FLUID PLUS 15W40 Price: $19.07 |
| 26 | 741-04116 | BALL BEARING Price: $6.90 |
| 30 | 756-05663 | TRANSMISSION PULLEY Price: $11.42 |
