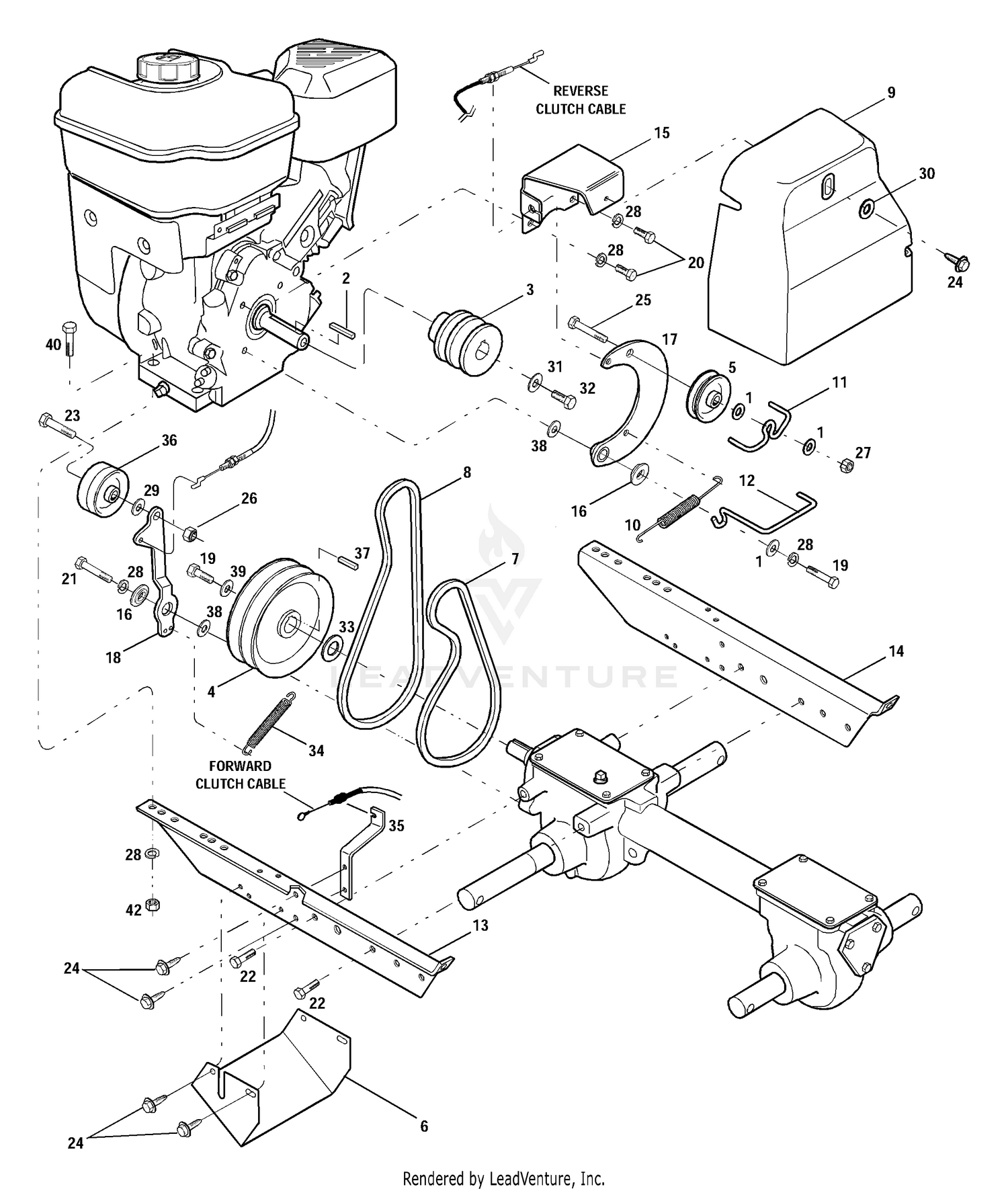

| Ref | Part Number | Description |
|---|
| 1 |
736-0159 |
Flat Washer, 5/16 Price: $3.71 |
| 2 |
714-0133 |
KEY-SQ 3/16X1.50 This part replaces 1108841. Price: $4.20 |
| 3 |
756-04198A |
Engine Pulley, 3L & 4L, Honda This part replaces 619-04016. Price: $49.05 |
| 4 |
656-04005A |
TRANSMISSION PULLEY ASSEMBLY Not Available This part replaces 1916532. Price: |
| 5 |
756-04169 |
Reverse Idler Pulley This part replaces 1916535. Price: $22.24 |
| 6 |
786-04095-0637 |
TRANSMISSION PULLEY GUARD Not Available This part replaces 1916652. Price: |
| 7 |
954-04090 |
V Belt, 4L x 25375 LG This part replaces 1916657. Price: $18.60 |
| 8 |
954-04091 |
V Belt, 3L x 29125 LG This part replaces 1916658. Price: $17.63 |
| 9 |
731-05268 |
Belt Cover This part replaces 1916660. Price: $34.55 |
| 10 |
1916724 |
SPRING-REV RETURN Not Available Price: |
| 11 |
732-04081 |
Wire Formed Belt Guide This part replaces 1916725. Price: $9.09 |
| 12 |
1916726 |
BELT GUIDE Not Available Price: |
| 13 |
1916794 |
ENGINE BRACKET, LEFT Not Available Price: |
| 14 |
1916795 |
BRACKET-ENGINE Not Available Price: |
| 15 |
786-04070-0637 |
BELT COVER BRACKET Not Available This part replaces 1917326. Price: |
| 16 |
748-04087A |
Forward Idler Pivot Spacer This part replaces 1917746. Price: $5.66 |
| 17 |
786-04276 |
Reverse Idler Arm This part replaces 1918731. Price: $14.46 |
| 18 |
786-04275-0637 |
Forward Tiller Direction Idler Arm This part replaces 1918744. Price: $31.56 |
| 19 |
710-0888 |
Hex Head Screw, 5/16-24 x 1 This part replaces 710-0117. Price: $3.86 |
| 20 |
710-0237 |
Hex Hd. Screw, 5/16-24 x 5/8 Price: $3.93 |
| 21 |
710-0376 |
Hex Hd. Screw, 5/16-18 x 1 Price: $3.66 |
| 22 |
710-04049 |
Hex Hd. Screw, 5/16-18 x 5/8 Price: $4.11 |
| 23 |
710-0520 |
Hex Hd. Screw, 3/8-16 x 1-1/2 Price: $3.93 |
| 24 |
710-0599 |
Screw, Self-Tapping, 1/4-20 x 1/2 Price: $3.86 |
| 25 |
710-3103 |
Hex Hd. Screw, 5/16-18 x 2 Price: $4.02 |
| 26 |
712-3000 |
Lock Nut, 3/8-16 Price: $3.90 |
| 27 |
712-3009 |
Lock Nut, 5/16-18 Price: $5.99 |
| 28 |
936-0119 |
LOCK WASHER 5/16 This part replaces 736-0119. Price: $4.29 |
| 29 |
736-3050 |
Flat Washer, 3/8 Price: $3.90 |
| 30 |
736-3090 |
Flat Washer Price: $5.79 |
| 31 |
736-0452 |
Bell Washer Price: $4.05 |
| 32 |
710-0459A |
Hex Hd. Screw, 3/8-24 x 1.5, GR5 Price: $6.50 |
| 33 |
GW-50027 |
Support Washer Price: $5.94 |
| 34 |
732-04085 |
Extension Spring, 480 OD x 500 LG This part replaces GW-55034. Price: $12.40 |
| 35 |
GW-55049 |
Bracket, Cable Mounting Price: Call Us |
| 36 |
756-04170 |
Forward Idler Pulley This part replaces GW-9090. Price: $31.29 |
| 37 |
GW-9301 |
Key, 3/16" x 1" Price: $3.46 |
| 38 |
736-3078 |
Flat Washer Price: $3.95 |
| 39 |
736-04193 |
Washer, 396 x 1140 x 095, B&S This part replaces GW-9944. Price: $5.94 |
