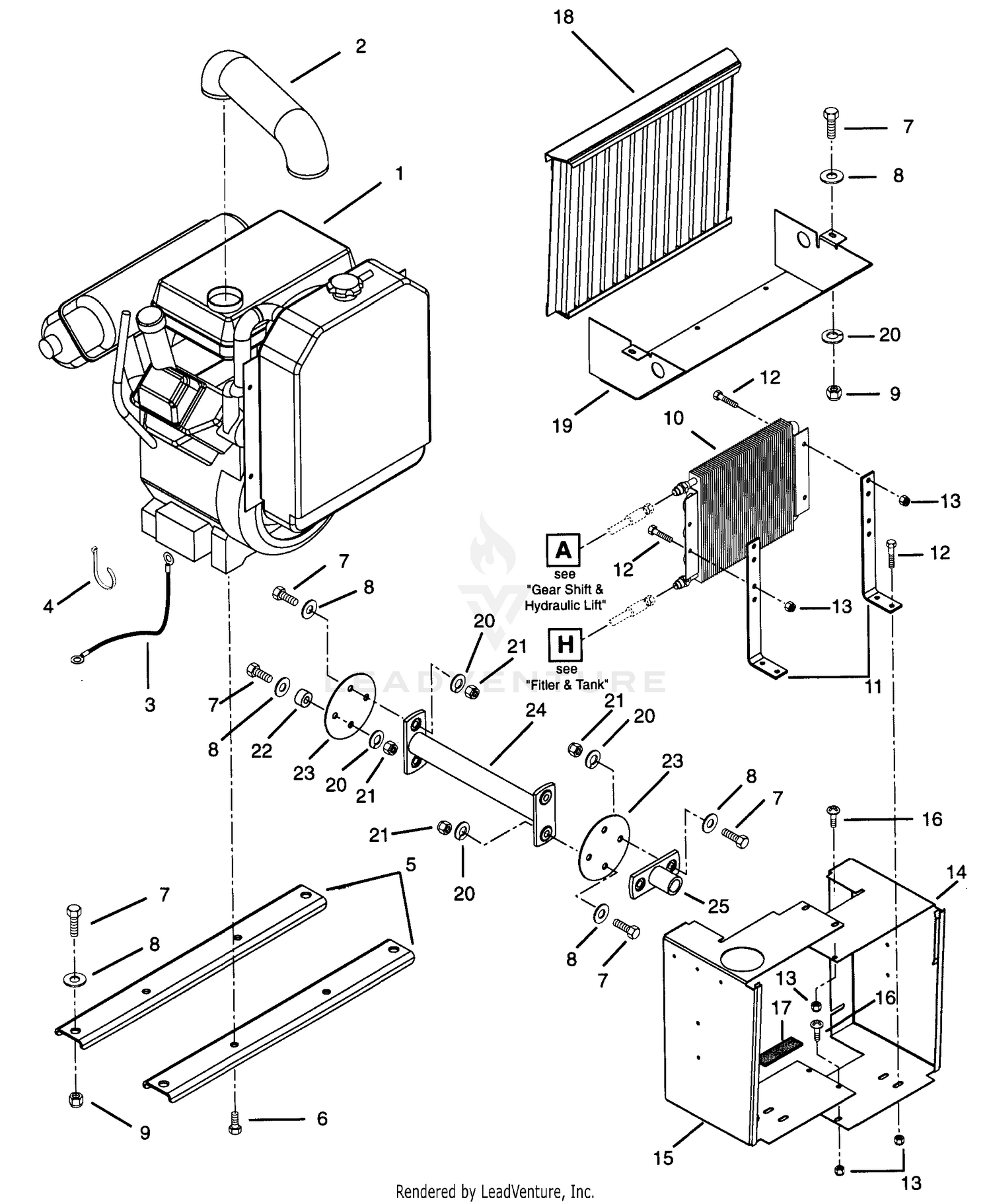

| Ref | Part Number | Description |
|---|
| 1 |
00560400 |
ENGINE, 20 HP KAWASAKI FD620D Price: Call Us |
| 2 |
09060500 |
HOSE, AIR INTAKE (KAWASAKI) Price: $60.70 |
| 3 |
09047700 |
GROUND STRAP Price: $7.35 |
| 4 |
07519900 |
TIE WRAP, BLACK LG 7.31 This part replaces 041634. Price: $3.45 |
| 5 |
09049900 |
BRACKET, ENGINE MOUNT Price: $21.35 |
| 6 |
05901628 |
BLT, HEX M8-1.25X20 G8.8 ZCC This part replaces 046361. Price: $1.45 |
| 7 |
05901711 |
BLT-HEX .38-16X1.00 G5 ZCC This part replaces 180122. Price: $1.45 |
| 8 |
06401023 |
WSHR-FLT .375X.875X.083 ZCC This part replaces 06400200. Price: $1.45 |
| 9 |
06500831 |
NUT-NYL .38-16 G5 ZCC This part replaces 456004. Price: $2.95 |
| 10 |
08856200 |
COOLER,OIL This part replaces 053101. Price: $173.45 |
| 11 |
09062300 |
BRKT, OIL COOLER MOUNT (KAW) Price: $4.95 |
| 12 |
05901639 |
BLT,HEX .25-20X1.00 G5 ZCC This part replaces 180022. Price: $1.45 |
| 13 |
06500832 |
NUT-NYL .25-20 G5 ZCC This part replaces 419454. Price: $4.45 |
| 14 |
09060900 |
WLDM'T, INTAKE DUCT L.H. Price: $17.95 |
| 15 |
09060800 |
WLDM'T, INTAKE DUCT R.H. Price: $64.95 |
| 16 |
06116300 |
SCR .25-20X.50 PH PHD BLK Price: $1.20 |
| 17 |
00929000 |
SEAL, TRIM-LOK BULK .06 BBL 1' Price: $0.95 |
| 18 |
09422600 |
GRILLE, KUBOTA RADIATOR-BLACK This part replaces 00520600. Price: $117.50 |
| 19 |
09061001 |
SHIELD, BOTTOM AIR INTAKE Price: $36.35 |
| 20 |
06300116 |
WSHR-LK-REG .375X.094 ZCC This part replaces 120382. Price: $0.95 |
| 21 |
06500917 |
NUT-STD .375-16 G2 ZCC This part replaces 120377. Price: $0.95 |
| 22 |
00518000 |
SPACER .406X.88X.38 Price: $9.45 |
| 23 |
00517800 |
FLEX COUPLING DISC Price: $29.95 |
| 24 |
09050100 |
WLDMT, TRANMISSION DRIVE Price: $48.20 |
