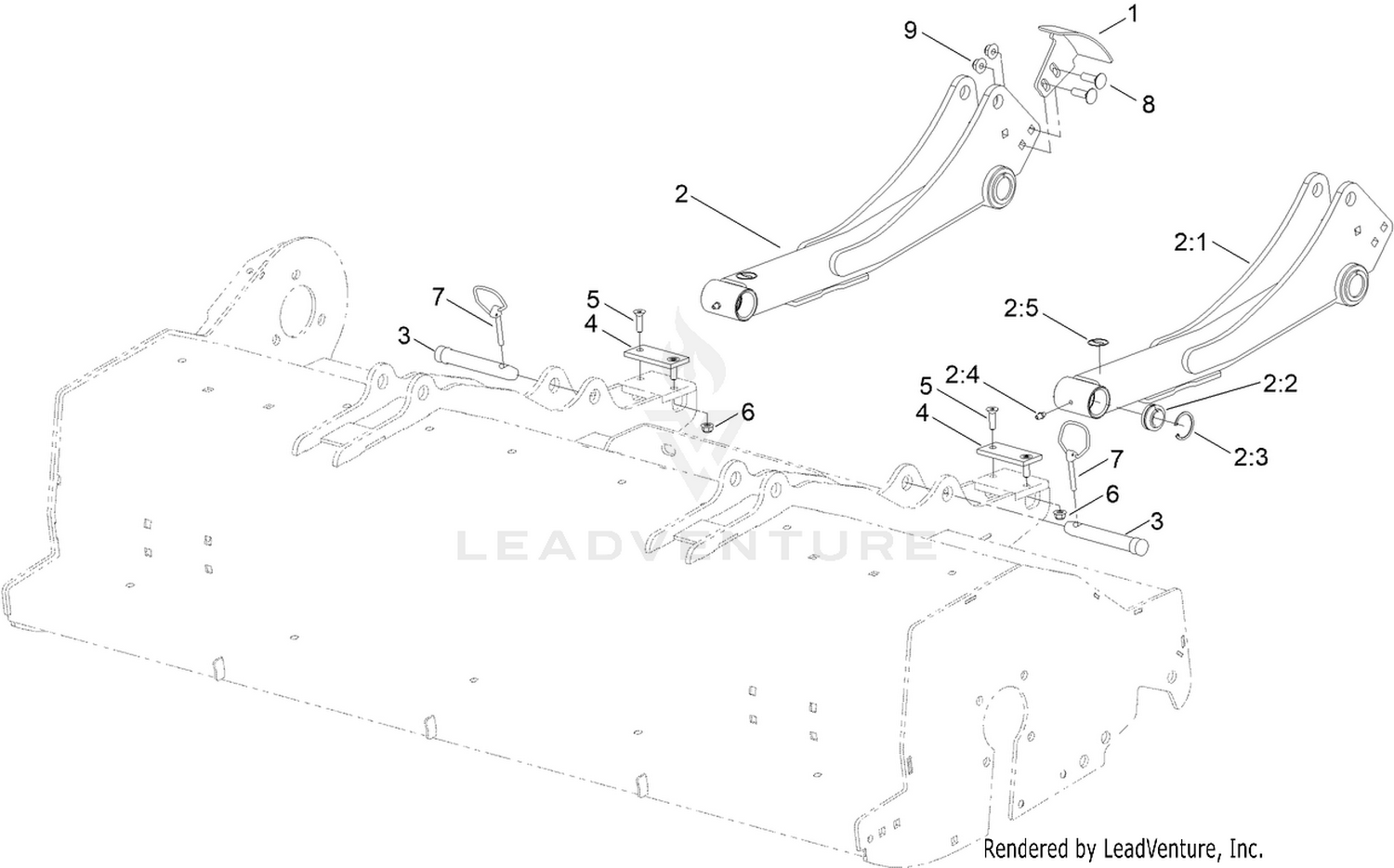

Lift Arm Assembly
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 134-1719-03 | BRACKET-SWITCH ASM Price: $34.39 |
| 2 | 134-4885 | LIFT ARM ASM Price: $263.17 |
| 3 | 134-6652 | PIN-LIFT ARM This part replaces 134-1767. Price: $17.24 |
| 4 | 138-4452 | PAD-STOP, DECK Price: $2.98 |
| 5 | 133-4543 | SCREW Price: $5.61 |
| 6 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 7 | 10-07-012 | LINCH PIN Price: $6.01 |
| 8 | 119-4162 | SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 9 | 104-8301 | NUT-HF, NI Price: $1.09 |
