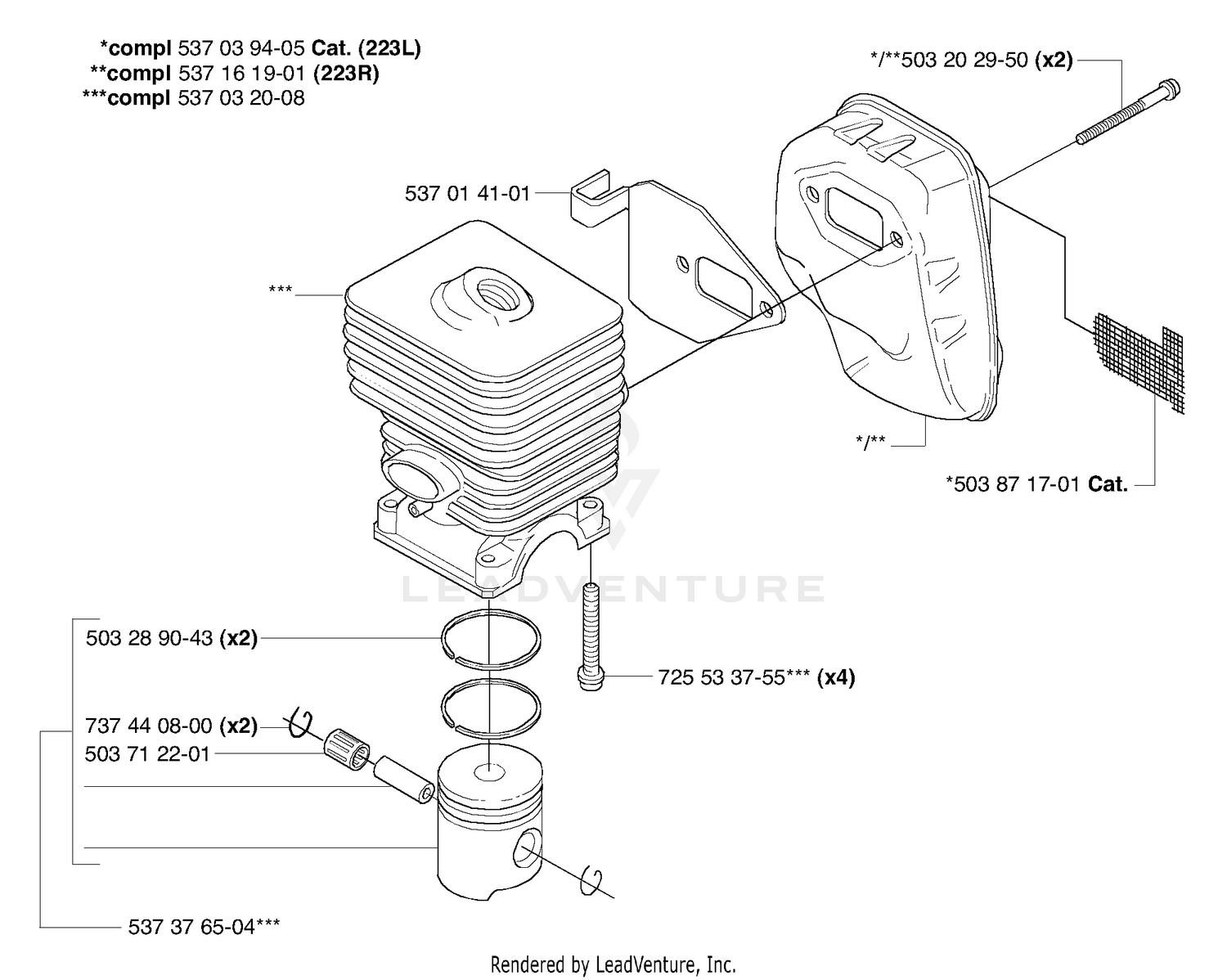

| Ref | Part Number | Description |
|---|
| 1 |
808440 |
Cylinder Assembly Price: Call Us |
| 2 |
808534 |
Bushing-Seal Kit Price: Call Us |
| 8 |
807795 |
Breather Assembly Price: Call Us |
| 10 |
805751 |
Screw Price: Call Us |
| 11 |
806083 |
Tube-Breather Price: Call Us |
| 12 |
806190 |
Gasket-Crankcase Price: Call Us |
| 15 |
805048 |
Plug-Oil Drain Price: Call Us |
| 17 |
805754 |
Ball Bearing Price: Call Us |
| 18 |
808502 |
Cover-Crankcase Price: Call Us |
| 22 |
805696 |
Screw-Hex. Price: Call Us |
| 84 |
91488 |
Plug-Oil Price: Call Us |
| 116 |
806191 |
Seal-O-Ring Price: Call Us |
| 166 |
805073 |
Stud-Hex. Drive Price: Call Us |
| 188 |
805247 |
Screw Price: Call Us |
| 189 |
805449 |
Washer Price: Call Us |
| 523 |
807977 |
Dipstick Price: Call Us |
| 525 |
807584 |
Tube-Oil Fill Price: Call Us |
| 552 |
805412 |
Bushing-Govemor Shaft Price: Call Us |
| 552A |
805413 |
Bushing-Govemor Shaft Price: Call Us |
| 572 |
805197 |
Baffle-Oil Price: Call Us |
| 614 |
806096 |
Pin-Cotter Price: Call Us |
| 616 |
807596 |
Fork-Govemor Price: Call Us |
| 634 |
805416 |
Seal-Governor Price: Call Us |
| 718 |
805103 |
Pin-Dowel Price: Call Us |
| 982 |
805030 |
Screw Price: Call Us |
| 1027 |
492932 |
Filter-Oil Price: Call Us |
| 1028 |
808325 |
Adapter-Oil Filter Price: Call Us |
| 503200225 |
503200225 |
SCREW Price: $2.99 |
| 503202950 |
503202950 |
SCREW Price: $3.99 |
| 503216618 |
503216618 |
SCREW Price: $3.99 |
| 503216820 |
503216220 |
SCREW W/ LOCKING FLUID This part replaces 503216820. Price: $3.99 |
| 503289043 |
503289043 |
PISTON RING Price: $11.99 |
| 503712201 |
503712201 |
BEARING Price: $11.99 |
| 503871701 |
503871701 |
SCREEN Price: $74.99 |
| 537014101 |
537014101 |
GASKET Price: $3.99 |
| 537039405 |
537039405 |
MUFFLER GR 50 Price: $129.99 |
| 537041102 |
537041103 |
CRANKCASE This part replaces 537041102. Price: $54.99 |
| 537161901 |
537161901 |
MUFFLER Price: $44.99 |
| 537237502 |
537237502 |
CLUTCH DRUM Price: $37.99 |
| 537289702 |
537289705 |
COVER CLUTCH This part replaces 537289702. Price: $9.99 |
| 537373801 |
537373801 |
SLEEVE Price: $2.99 |
| 537376504 |
537405902 |
PISTON This part replaces 537376504. Price: $69.99 |
| 725533755 |
725533755 |
SCREW MC6S 5X35 Price: $3.99 |
| 731231401 |
731231401 |
NUT Price: $1.99 |
| 735311200 |
735311200 |
RETAINING RING SGA 10 Price: $2.99 |
| 737440800 |
737440800 |
CLIP RING Price: $2.99 |
