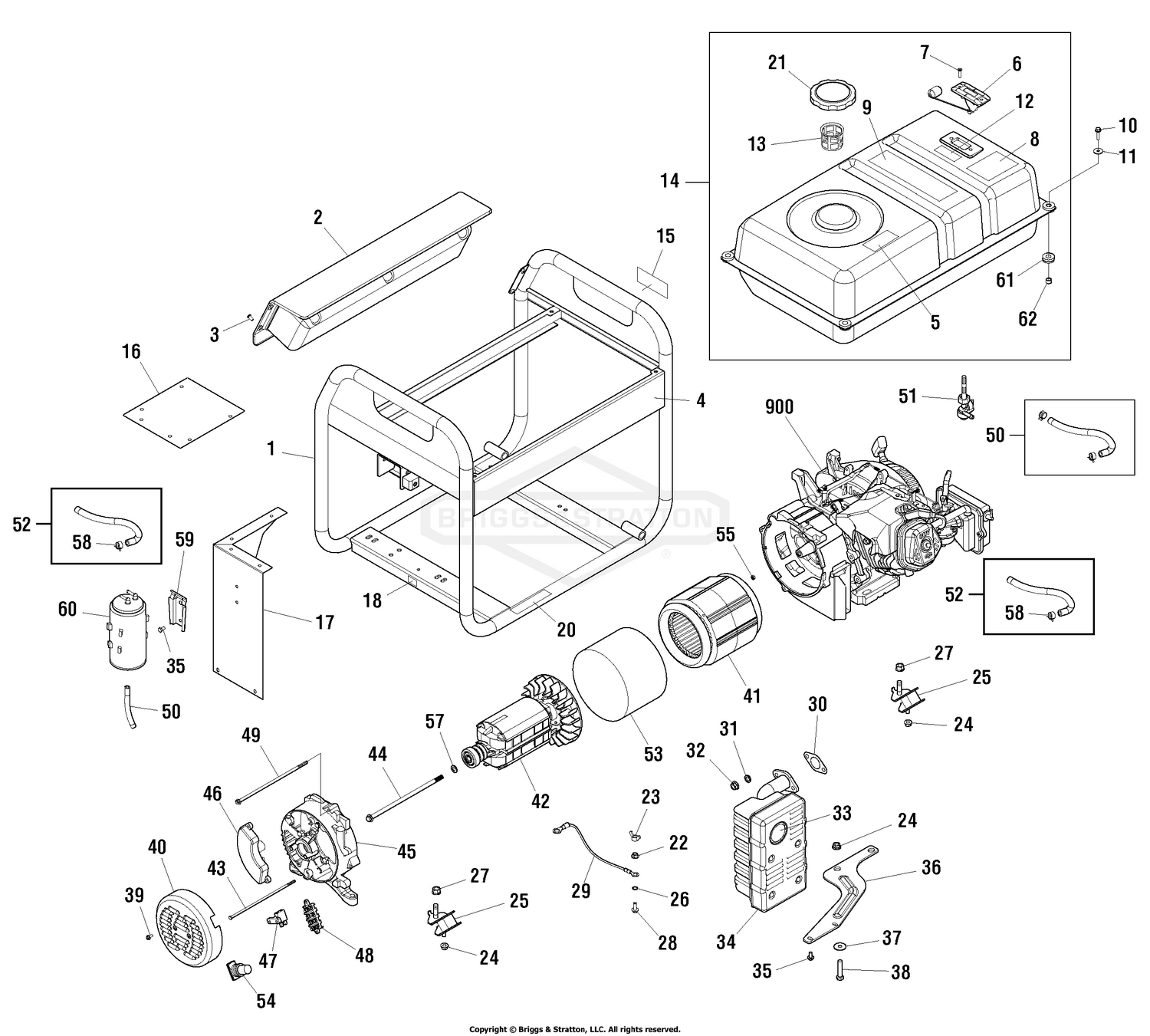

Main Unit (80017649)
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 705502 | CRADLE Price: $574.99 |
| 2 | 709527 | PANEL-CONTROL Price: $129.99 |
| 3 | 703804 | SCREW Price: $3.63 |
| 4 | 705500 | DECAL Price: $57.99 |
| 5 | 319065GS | DECAL Price: $5.78 |
| 6 | 704183 | GAUGE-FUEL Price: $15.07 |
| 7 | 314440GS | SCREW Price: $3.61 |
| 8 | 202997GS | DECAL Price: $12.80 |
| 9 | 319064GS | DECAL Price: $6.00 |
| 10 | 703805 | SCREW Price: $8.89 |
| 11 | 312005GS | WASHER Price: $3.09 |
| 12 | 703264 | DECAL Price: $15.53 |
| 13 | 705504 | FILTER-FUEL Price: $5.87 |
| 14 | 705520 | TANK-FUEL Price: $274.99 |
| 15 | 704142 | DECAL Price: $11.12 |
| 16 | 705489 | HEATSHIELD Price: $45.49 |
| 17 | 705503 | HEATSHIELD Price: $79.99 |
| 18 | 704331 | DECAL Price: $8.79 |
| 20 | 319066GS | DECAL Price: $9.79 |
| 21 | 319587GS | CAP-FUEL Price: $18.25 |
| 23 | 87680GS | NUT Price: $6.57 |
| 25 | 319451GS | MOUNT-VIBRATION Price: $10.58 |
| 29 | 312040GS | WIRE Price: $5.54 |
| 30 | 797770 | GASKET, Exhaust This part replaces 813085GS. Price: $5.72 |
| 33 | 83083GS | SCREEN Price: $8.49 |
| 34 | 192569GS | MUFFLER Price: $148.05 |
| 36 | 705501 | BRACKET-MUFFLER Price: $15.68 |
| 38 | 57821GS | HHCS-M8-1.25 x 40 Price: $1.60 |
| 39 | 207824GS | SCREW Price: $3.73 |
| 40 | 313364GS | END COVER Price: $26.20 |
| 41 | 704140 | STATOR Price: $402.63 |
| 42 | 704202 | ROTOR Price: $291.49 |
| 43 | 317340GS | BOLT Price: $5.99 |
| 44 | 708710 | BOLT Price: $8.36 |
| 45 | 708704 | CARRIER-BEARING Price: $90.94 |
| 46 | 207840GS | VOLTAGE REGULATOR Price: $40.40 |
| 47 | 207827GS | BRUSH ASSY Price: $9.35 |
| 48 | 316945GS | TERMINAL BLOCK Price: $7.37 |
| 49 | 317338GS | BOLT Price: $11.29 |
| 51 | 209417GS | VALVE-FUEL Price: $7.75 |
| 53 | 317342GS | BAND-STATOR Price: $8.29 |
| 54 | 207879GS | BOOT Price: $6.22 |
| 55 | 207878GS | NUT Price: $5.79 |
| 57 | 207826GS | WASHER Price: $2.96 |
| 58 | 314955GS | CLAMP Price: $4.19 |
| 59 | 318884GS | BRACKET Price: $11.44 |
| 60 | 209044GS | CARB CANISTER Price: $51.99 |
| 61 | 189134GS | GROMMET Price: $3.73 |
