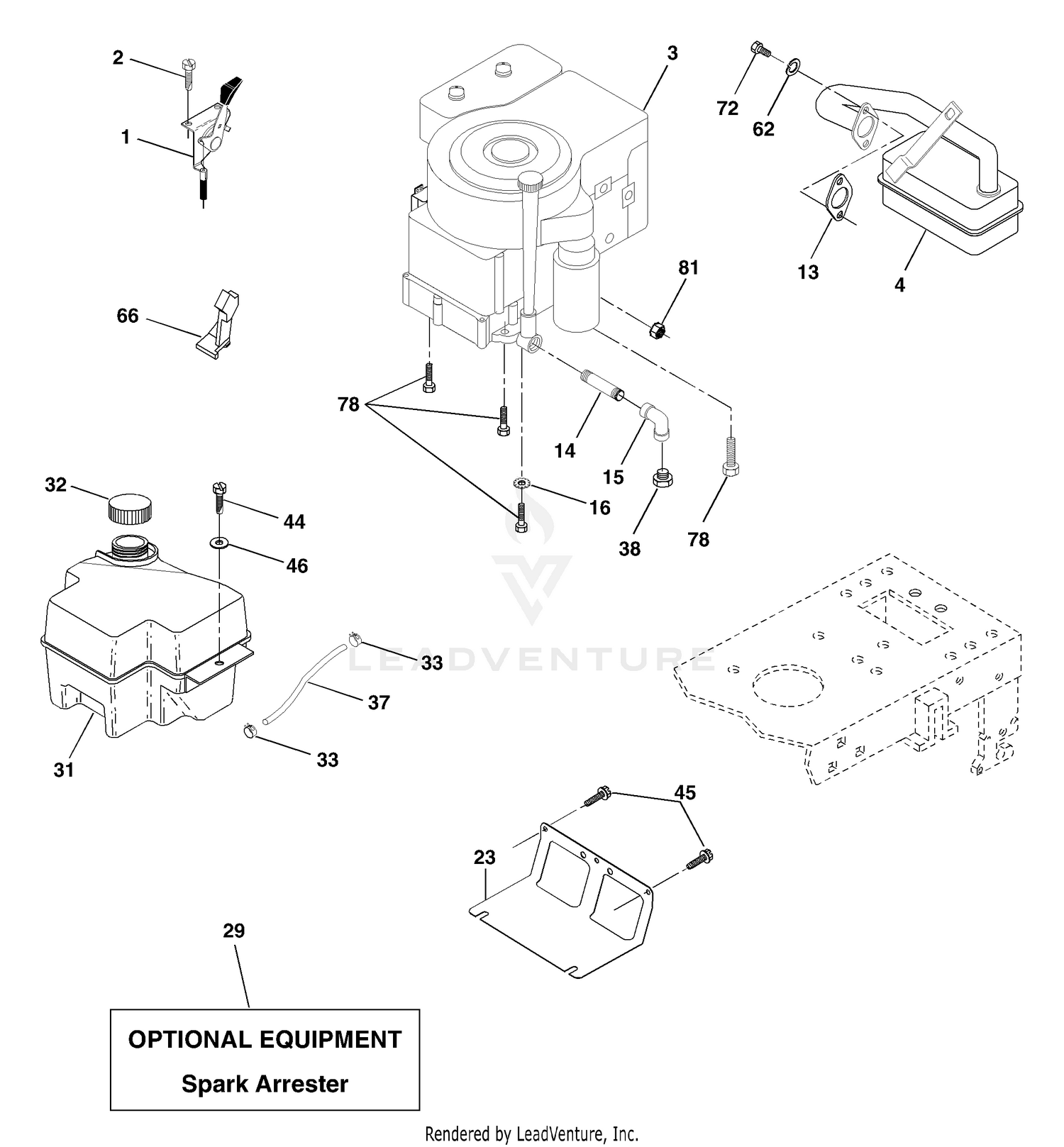

| Ref | Part Number | Description |
|---|
| 1 |
3219-2 |
NUT-HEX Price: $0.37 |
| 1 |
532170865 |
THROTTLE.CONTROL.CABLE.BLACK This part replaces 532141359. Price: $22.99 |
| 2 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 2 |
596582501 |
Bolts This part replaces 817720410. Price: $2.99 |
| 3 |
21-8270 |
PIN-DOWEL Price: $6.65 |
| 4 |
21-7720 |
WASHER-THRUST Price: $3.39 |
| 4 |
532137348 |
MUFFLER.SINGLE.B&S.10-12HP Price: $89.99 |
| 5 |
110-4143 |
KIT-REPLACEMENT, REVACYCLE GEARS This part replaces 24-8790. Price: $702.98 |
| 6 |
110-4143 |
KIT-REPLACEMENT, REVACYCLE GEARS This part replaces 21-7690. Price: $702.98 |
| 7 |
21-7730 |
WASHER-THRUST, PINION Price: $2.65 |
| 9 |
43-6760 |
BEARING-ROLLER, CONE TAPER Price: $113.20 |
| 10 |
43-6750 |
BEARING-TAPER, CUP Price: $69.64 |
| 11 |
92-1773 |
SCREW-HHF Price: $3.05 |
| 13 |
32144-112 |
SCREW-HWH Price: $0.99 |
| 13 |
532272293 |
GASKET.ENG.1.313 ID.TIN PLATED This part replaces 532165291. Price: $8.99 |
| 14 |
813280324 |
Nipple Pipe 3/8 Npt X 3" Price: $3.12 |
| 14 |
86-7230 |
GEAR-INPUT, TRANSMISSION Price: $610.12 |
| 15 |
43-6710 |
SHIM-PINION (.003) Price: $2.17 |
| 15 |
532428287 |
VALUE.OIL.DRAIN This part replaces 813200300. Price: $14.99 |
| 16 |
43-6711 |
SHIM-PINION (.005) Price: $3.80 |
| 16 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 17 |
43-6712 |
SHIM-PINION (.010) Price: $3.19 |
| 18 |
43-6713 |
SHIM-PINION (.030) Price: $6.99 |
| 19 |
3210-7 |
SCREW-HH Price: $0.61 |
| 20 |
71-4350 |
NUT Price: $3.46 |
| 21 |
83-5130 |
SPACER-PINION Price: $87.56 |
| 22 |
72-3572 |
SHIM-BEARING, FRONT (.098) This part replaces 72-3570. Price: $23.68 |
| 23 |
254-91 |
CONE-BEARING Price: $18.65 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 24 |
254-90 |
BEARING-CUP This part replaces 21-8390. Price: $11.29 |
| 25 |
21-8020 |
SPACER-BEARING Price: $28.84 |
| 26 |
86-7190 |
UPPER HOUSING ASM Price: $889.26 |
| 27 |
254-66 |
CUP-BEARING, ROLLER Price: $17.92 |
| 28 |
254-65 |
BEARING-ROLLER, CONE Price: $62.13 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
32121-15 |
PIN-ROLL This part replaces 21-7710. Price: $1.60 |
| 31 |
21-7700 |
SHAFT-MATE, PINION Price: $54.05 |
| 31 |
532180645 |
GAS TANK 2GAL This part replaces 532161911. Price: $59.99 |
| 32 |
21-7770 |
SCREW-GEAR, DRIVE Price: $1.97 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532140527. Price: $22.99 |
| 33 |
21-7670 |
CASE-DIFFERENTIAL Price: $687.90 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 34 |
75-0720 |
DISCONTINUED Price: Call Us |
| 35 |
21-8120 |
SHIM-BEARING, DIFFERENTIAL (.030) Price: $5.43 |
| 36 |
21-8110 |
SHIM-BEARING, DIFFERENTIAL (.010) Price: $3.73 |
| 37 |
21-8100 |
SHIM-BEARING, DIFFERENTIAL (.005) Price: $3.46 |
| 37 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 38 |
21-8090 |
SHIM-BEARING, DIFFERENTIAL (.003) Price: $1.09 |
| 39 |
72-9420 |
VENT This part replaces 21-8230. Price: $6.85 |
| 40 |
83-4910 |
COUPLER-PINION Price: $223.04 |
| 41 |
71-4330 |
SEAL Price: $36.26 |
| 44 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE This part replaces 817490412. Price: $3.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 This part replaces 817060612. Price: $3.99 |
| 46 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 62 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 66 |
532127951 |
STOP THROTTLE Price: $2.52 |
| 72 |
871070510 |
Screw Hexhd Cap 5/16-18 x 5/8 Price: $2.66 |
| 78 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
