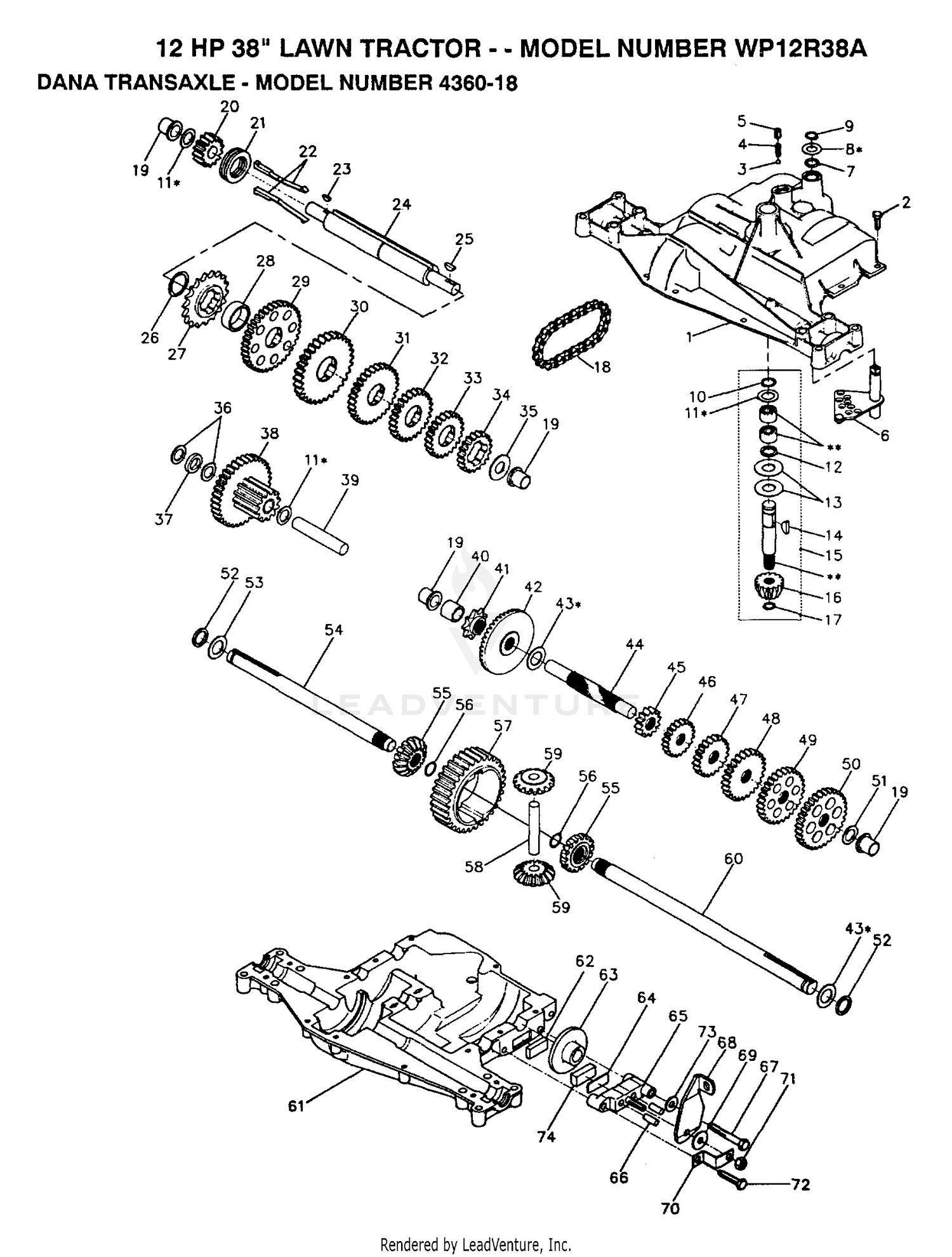

| Ref | Part Number | Description |
|---|
| 1 |
3865 |
HOUSING UPPER Price: Call Us |
| 2 |
1919 |
SCREW Price: Call Us |
| 3 |
1151 |
BALL DETENT Price: Call Us |
| 4 |
3626 |
SPRING, DETENT Price: Call Us |
| 5 |
3623 |
SCREW, SET Price: Call Us |
| 6 |
4336 |
ASSY SHIFTER Price: Call Us |
| 7 |
3884 |
O-RING Price: Call Us |
| 8 |
3885 |
WASHER PLAIN Price: Call Us |
| 9 |
1100 |
RING RETAINING Price: Call Us |
| 10 |
108-1417 |
PISTON (+0.5MM) Price: $271.74 |
| 10 |
1099 |
RING RETAINING Price: Call Us |
| 10 |
98-9550 |
PISTON (STD) Price: $274.67 |
| 11 |
1959 |
WASHER PLAIN Price: Call Us |
| 12 |
3312 |
O-RING Price: Call Us |
| 13 |
3876 |
WASHER, PLAIN .632 X 1.38 X .046 Price: Call Us |
| 14 |
1374 |
KEY WOODRUFF #9 Price: Call Us |
| 15 |
4134 |
ASSY KIT INPUT SHAFT Price: Call Us |
| 16 |
3590 |
PINION, BEVEL, 14 TEETH Price: Call Us |
| 17 |
3624 |
RING, RETAINING Price: Call Us |
| 18 |
3625 |
CHAIN, 24 PITCHES Price: Call Us |
| 19 |
1542 |
BEARING, FLANGE Price: Call Us |
| 20 |
108-1404 |
PISTON RING ASM (+0.5MM) Price: $222.07 |
| 20 |
3773 |
GEAR SPUR, 14 TEETH Price: Call Us |
| 20 |
98-9551 |
PISTON RING ASM (STD) Price: $220.34 |
| 21 |
3631 |
COLLAR CLUTCH Price: Call Us |
| 22 |
3828 |
KEY CLUTCH Price: Call Us |
| 23 |
1369 |
KEY WOODRUFF #3 Price: Call Us |
| 24 |
3883 |
SHAFT INTERMEDIATE Price: Call Us |
| 25 |
1375 |
KEY, WOODRUFF, #61 Price: Call Us |
| 26 |
3627 |
RING, RETAINING Price: Call Us |
| 27 |
3830 |
SPROCKET, 18 TEETH Price: Call Us |
| 28 |
3841 |
SPACER Price: Call Us |
| 29 |
3786 |
GEAR, SPUR, 37 TEETH Price: Call Us |
| 30 |
3785 |
GEAR, SPUR, 35 TEETH Price: Call Us |
| 30 |
98-9513 |
PIN-PISTON Price: $13.17 |
| 31 |
3867 |
GEAR, SPUR, 30 TEETH Price: Call Us |
| 32 |
3783 |
GEAR, SPUR, 25 TEETH Price: Call Us |
| 33 |
3869 |
GEAR, SPUR, 22 TEETH Price: Call Us |
| 34 |
3741 |
GEAR SPUR Price: Call Us |
| 35 |
3628 |
WASHER, PLAIN .640 X 1.37 X .061 Price: Call Us |
| 36 |
1423 |
WASHER, PLAIN .632 X 1.00 X .026 Price: Call Us |
| 37 |
3422 |
SPACER .630 X 1.00 X .169 Price: Call Us |
| 38 |
4286 |
ASSY GEAR COMB 12&35 TEETH Price: Call Us |
| 39 |
3877 |
SHAFT IDLER Price: Call Us |
| 40 |
3901 |
SPACER .635 X .875 X .755 Price: Call Us |
| 40 |
98-9514 |
CIRCLIP-PIN, PISTON Price: $2.79 |
| 41 |
3645 |
SPROCKET, 9 TEETH Price: Call Us |
| 42 |
3853 |
GEAR, BEVEL, 42 TEETH Price: Call Us |
| 43 |
3749 |
WASHER PLAIN Price: Call Us |
| 44 |
3882 |
SHAFT, DRIVE Price: Call Us |
| 45 |
3646 |
GEAR, SPUR, 12 TEETH Price: Call Us |
| 46 |
3707 |
GEAR SPUR, 15 TEETH Price: Call Us |
| 47 |
3866 |
GEAR, SPUR, 20 TEETH Price: Call Us |
| 48 |
3719 |
GEAR, SPUR, 25 TEETH Price: Call Us |
| 49 |
3868 |
GEAR, SPUR, 28 TEETH Price: Call Us |
| 50 |
117-7586 |
CONNECTING ROD ASM This part replaces 98-9552. Price: $547.99 |
| 50 |
3683 |
GEAR, SPUR, 31 TEETH Price: Call Us |
| 51 |
1145 |
WASHER, PLAIN .632 X 1.00 X .060 Price: Call Us |
| 52 |
3191 |
SEAL FELT Price: Call Us |
| 53 |
3180 |
WASHER PLAIN Price: Call Us |
| 54 |
3980 |
AXLE LEFT HAND Price: Call Us |
| 55 |
3780 |
GEAR, MITER, 15 TEETH Price: Call Us |
| 56 |
3656 |
RING, RETAINING Price: Call Us |
| 57 |
3839 |
GEAR, SPUR, 32 TEETH Price: Call Us |
| 58 |
3919 |
SHAFT, CROSS Price: Call Us |
| 59 |
3781 |
GEAR, MITER, 15 TEETH Price: Call Us |
| 60 |
115-3014 |
BUSHING-PIN, PISTON This part replaces 98-9515. Price: $19.81 |
| 60 |
3981 |
AXLE RIGHT HAND Price: Call Us |
| 61 |
3864 |
HOUSING LOWER Price: Call Us |
| 62 |
3920 |
PUCK, FRICTION Price: Call Us |
| 63 |
3276 |
DISC, BRAKE Price: Call Us |
| 64 |
3758 |
SPACER Price: Call Us |
| 65 |
3916 |
JAW, BRAKE Price: Call Us |
| 66 |
3843 |
PIN, DOWEL Price: Call Us |
| 67 |
3915 |
SCREW TAPPING Price: Call Us |
| 68 |
3768 |
LEVER, ACTUATING Price: Call Us |
| 69 |
3760 |
WASHER, PLAIN .321 X 1.00 X .055 Price: Call Us |
| 70 |
3917 |
BRACKET, ANTI-ROTATION Price: Call Us |
| 70 |
98-9517 |
BOLT-ROD, CONNECTING Price: $10.31 |
| 71 |
3847 |
LOCKNUT 5/16-24 Price: Call Us |
| 72 |
3724 |
SCREW TAPPING Price: Call Us |
| 73 |
3906 |
WASHER PLAIN Price: Call Us |
| 74 |
3907 |
PUCK, FRICTION Price: Call Us |
| 80 |
117-7588 |
METAL-CRANKPIN (-0.4MM) This part replaces 108-1406. Price: $49.06 |
| 80 |
98-9519 |
BEARING-ROD (-0.2MM) This part replaces 108-1405. Price: $43.73 |
| 80 |
98-9553 |
BEARING-ROD (STD) Price: $52.92 |
| 90 |
98-9642 |
CRANKSHAFT ASM Price: $4,332.74 |
| 100 |
110-3729 |
BALL This part replaces 98-7473. Price: $0.69 |
| 110 |
98-9532 |
GEAR-CRANKSHAFT Price: $169.43 |
| 120 |
98-9666 |
KEY Price: $3.58 |
| 130 |
98-9542 |
GEAR-DRIVE, OIL PUMP Price: $89.04 |
| 140 |
98-9522 |
SLEEVE-CRANKSHAFT Price: $116.47 |
| 150 |
98-9521 |
COLLAR-CRANKSHAFT Price: $84.21 |
| 160 |
105-3783 |
O-RING Price: $6.33 |
| 170 |
108-1407 |
METAL-CRANKPIN, -0.2MM Price: $63.01 |
| 170 |
112-7005 |
BEARING-MAIN (STD) This part replaces 98-9554. Price: $66.99 |
| 170 |
112-7010 |
METAL-CRANKPIN (-0.4MM) This part replaces 108-1408. Price: $30.75 |
| 180 |
108-1409 |
METAL-CRANKPIN, -0.2MM Price: $49.61 |
| 180 |
112-7013 |
METAL-CRANKPIN (-0.4MM) This part replaces 108-1410. Price: $30.75 |
| 180 |
98-9524 |
METAL-CRANKSHAFT (STD SET) This part replaces 98-9555. Price: $62.26 |
| 190 |
112-7039 |
METAL-CRANKSHAFT (0.2MM) This part replaces 105-3719. Price: $60.46 |
| 190 |
112-7040 |
METAL-CRANKSHAFT (-0.4MM) This part replaces 105-3720. Price: $66.64 |
| 190 |
115-4121 |
METAL-CRANKSHAFT (STD) This part replaces 98-9556. Price: $86.06 |
| 200 |
127-0416 |
METAL-SIDE (+0.2MM) This part replaces 98-9414. Price: $21.04 |
| 200 |
98-9413 |
BEARING-THRUST (STD) Price: $16.90 |
| 200 |
98-9415 |
BEARING-THRUST (0.4MM) Price: $9.77 |
| 210 |
127-0437 |
METAL-SIDE (+0.2MM) This part replaces 98-9689. Price: $18.42 |
| 210 |
98-9688 |
BEARING-THRUST (STD) Price: $16.90 |
| 1068 |
WASHER |
PLAIN Price: Call Us 1068 |
| 1082 |
WASHER |
PLAIN Price: Call Us 1082 |
| 1145 |
WASHER, |
PLAIN .632 X 1.00 X .060 Price: Call Us 1145 |
| 1319 |
WASHER |
PLAIN Price: Call Us 1319 |
| 1358 |
WASHER |
PLAIN Price: Call Us 1358 |
| 1423 |
WASHER, |
PLAIN .632 X 1.00 X .026 Price: Call Us 1423 |
| 1424 |
WASHER |
PLAIN Price: Call Us 1424 |
| 1425 |
WASHER |
PLAIN Price: Call Us 1425 |
| 1441 |
WASHER |
PLAIN Price: Call Us 1441 |
| 3121 |
WASHER |
PLAIN Price: Call Us 3121 |
| 3180 |
WASHER |
PLAIN Price: Call Us 3180 |
| 3184 |
WASHER, |
PLAIN .758 X 1.25 X .031 Price: Call Us 3184 |
| 3198 |
WASHER |
PLAIN Price: Call Us 3198 |
| 3408 |
WASHER |
PLAIN Price: Call Us 3408 |
| 3652 |
WASHER |
PLAIN Price: Call Us 3652 |
| 3653 |
WASHER |
PLAIN Price: Call Us 3653 |
| 3693 |
WASHER |
PLAIN Price: Call Us 3693 |
| 3732 |
WASHER |
PLAIN Price: Call Us 3732 |
| 3733 |
WASHER |
PLAIN Price: Call Us 3733 |
| 3734 |
WASHER |
PLAIN Price: Call Us 3734 |
| 3735 |
WASHER |
PLAIN Price: Call Us 3735 |
| 3736 |
WASHER |
PLAIN Price: Call Us 3736 |
| 3886 |
WASHER |
PLAIN Price: Call Us 3886 |
| 3887 |
WASHER |
PLAIN Price: Call Us 3887 |
| 3888 |
WASHER |
PLAIN Price: Call Us 3888 |
| 3889 |
WASHER |
PLAIN Price: Call Us 3889 |
| 3890 |
WASHER |
PLAIN Price: Call Us 3890 |
