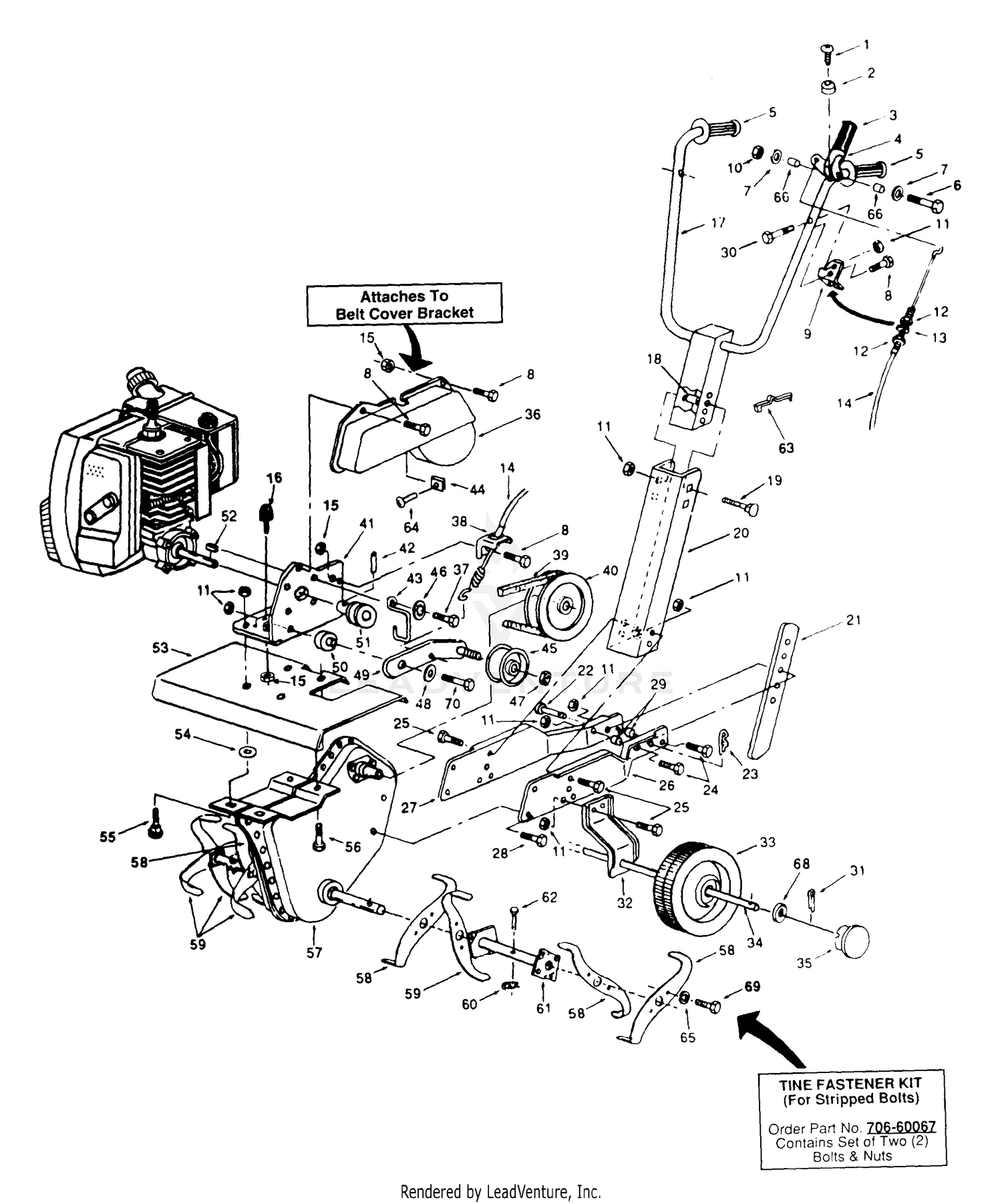

| Ref | Part Number | Description |
|---|
| 1 |
710-1167 |
TAP SCREW 10X16X.50 Not Available Price: |
| 2 |
720-0263 |
BUMPER-RECESS Not Available Price: |
| 3 |
731-0473 |
GRIP Price: $3.85 |
| 4 |
686-0002-0637 |
Clutch Lever Ass'y. This part replaces 686-0002. Price: $35.88 |
| 5 |
720-0233 |
LIFT HANDLE GRIP Not Available Price: |
| 7 |
736-3090 |
Fl-Wash. 1/4" I.D. Price: $5.79 |
| 8 |
710-1201 |
SCREW-SLOT PL-250-20X0.50 Not Available Price: |
| 9 |
15093C |
BRACKET-CL Not Available Price: |
| 10 |
712-0324 |
Lock Nut 1/4-20 Thd. Price: $3.38 |
| 11 |
712-0429 |
Lock Nut 5/16-18 Thd. Price: $3.56 |
| 12 |
712-0256 |
HEX JAM NUT 5/16-24 Not Available Price: |
| 14 |
946-0926 |
Clutch Control Cable This part replaces 746-0509. Price: $37.31 |
| 15 |
712-0271 |
Hex Sems Nut 1/4-20 Thd. Price: $3.78 |
| 16 |
IH-61510-C1 |
Bumper This part replaces 722-3004. Price: $24.34 |
| 17 |
649-0153 |
UPPER HAND Not Available Price: |
| 18 |
750-0848 |
SPACER Not Available Price: |
| 19 |
710-0572 |
Carr. Bolt 5/16-18 x 2-1/2" Price: $3.75 |
| 20 |
786-0013 |
FRAME-CHANNEL HDL Not Available Price: |
| 22 |
711-0653 |
Clevis Pin Price: $3.37 |
| 25 |
710-0759 |
SCREW 5/16-18 x .625 GR5 Not Available Price: |
| 26 |
786-0011 |
FRAME HALF Not Available Price: |
| 27 |
786-0010 |
FRAME HALF-RH Not Available Price: |
| 28 |
710-0607 |
Hex Tap. Scr. 5/16-18 x 1/2" Price: $6.06 |
| 29 |
750-0808 |
SPACER Not Available This part replaces 750-0845. Price: |
| 30 |
710-1090 |
Hex Bolt 5/16-18 x 1-1/4" Price: $3.15 |
| 31 |
714-0111 |
Cotter Pin 3/32" Dia. x 1.0" This part replaces 714-3017. Price: $4.20 |
| 32 |
786-0012 |
WHEEL BRACKET Not Available Price: |
| 33 |
634-0013 |
WHEEL-6" Not Available Price: |
| 34 |
738-0855 |
AXLE-WHEEL (MINI T Not Available Price: |
| 35 |
720-0258 |
HUB CAP Not Available Price: |
| 36 |
731-1249 |
Belt Cover Price: Call Us |
| 38 |
786-0017 |
BRACKET-CLUTCH LEVER Price: Call Us |
| 39 |
754-0425 |
V-BELT Not Available Price: |
| 40 |
756-0287 |
PULLEY Not Available Price: |
| 42 |
710-3006 |
SCREW .375 x 5/16-18 Not Available Price: |
| 43 |
747-0797 |
RETAINER-BELT Not Available Price: |
| 44 |
712-0410 |
CLIP-TINNERMAN Not Available Price: |
| 45 |
756-0199 |
Flat Idler Pulley Price: $22.53 |
| 46 |
736-0498 |
Int. L-Wash. 1/4" I.D. Price: $3.70 |
| 47 |
712-0116 |
Hex Jam L-Nut 3/8-24 Thd. Price: $3.95 |
| 48 |
736-0275 |
FLAT WASHER This part replaces 7360275. Price: $5.99 |
| 49 |
686-0003 |
IDLER ARM ASSEMBLY Not Available Price: |
| 50 |
750-0847 |
SPACER-IDLER ARM Price: Call Us |
| 51 |
756-0596 |
ENGINE PULLEY Not Available Price: |
| 52 |
714-0206 |
SQUARE KEY .125 x .750 Not Available Price: |
| 53 |
786-0016 |
SHIELD-TINE (RED) Price: Call Us |
| 54 |
750-0796 |
SPACER Not Available Price: |
| 55 |
710-0276 |
Carriage Bolt 5/16-18 x 1" Price: $3.68 |
| 57 |
04924A |
Chain Case Ass'y. Comp. Price: Call Us |
| 58 |
742-0568 |
TINE-10IN (RH) Not Available Price: |
| 59 |
742-0569 |
TINE (LH)-10IN Not Available Price: |
| 60 |
714-0149B |
Hairpin Cotter Price: $3.95 |
| 61 |
686-0001 |
TINE ADAPTER ASSEMBLY Not Available Price: |
| 62 |
711-0702 |
CLEVIS PIN .312 x 1.50 Not Available Price: |
| 63 |
726-0306 |
PLASTIC TIE Not Available Price: |
| 64 |
710-1128 |
SCREW #10-16 x .750 Not Available Price: |
| 66 |
750-0846 |
SPLIT SPACER Not Available Price: |
| 68 |
736-0185 |
Fl-Wash. 3/8" I.D. Price: $3.43 |
| 69 |
710-0599 |
Tap Scr. 1/4-20 x 1/2" Price: $3.86 |
