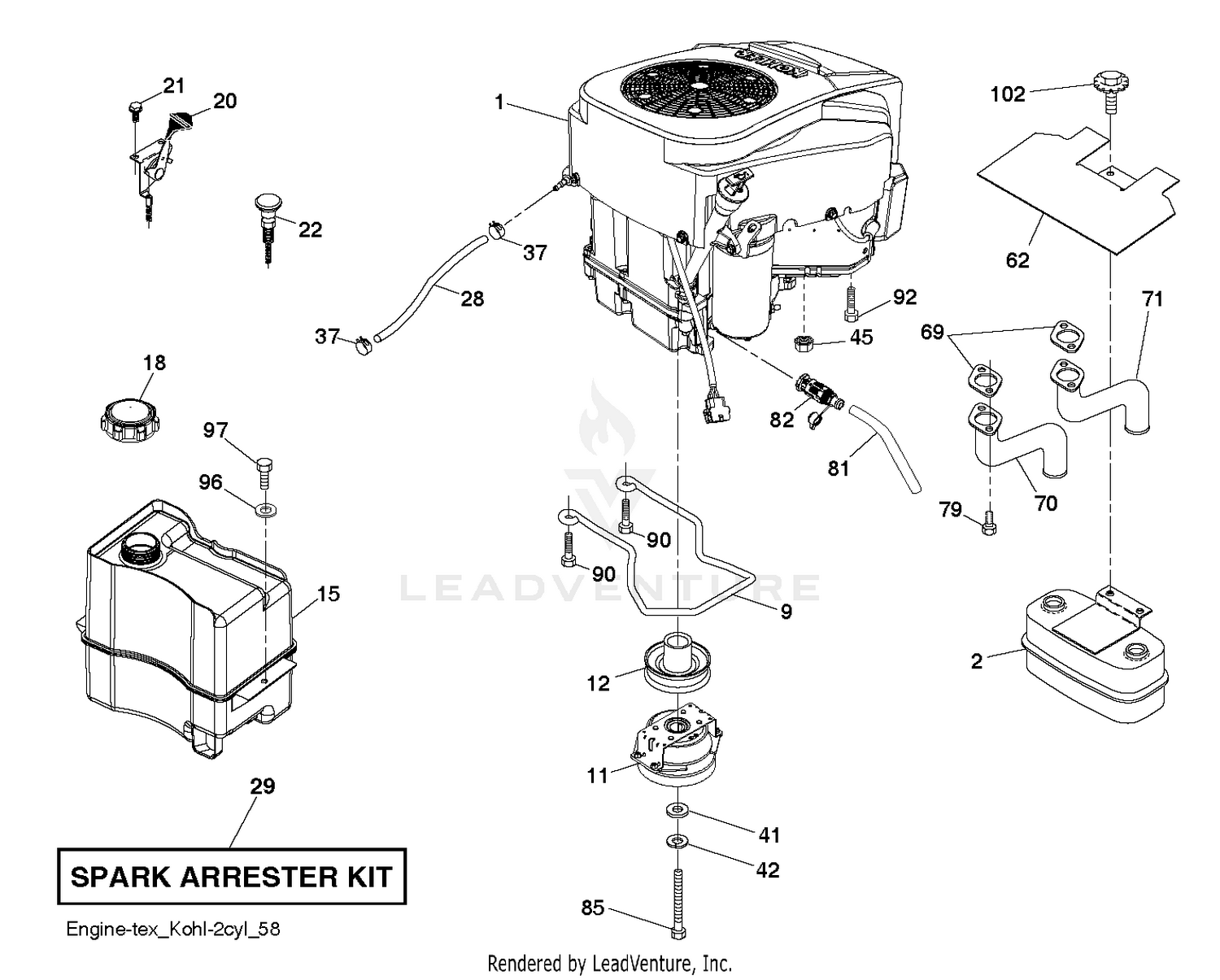

| Ref | Part Number | Description |
|---|
| 1 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 2 |
42-9110 |
GASKET This part replaces 53-8130. Price: $29.21 |
| 2 |
589818702 |
MUFFLER.ASM.TWIN.MNTG.BRACKET This part replaces 589818701. Price: $44.99 |
| 4 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 5 |
68-9400 |
NUT-FLANGE This part replaces 48-7930. Price: $2.29 |
| 6 |
66-2360-03 |
MUFFLER SUPPORT ASM This part replaces 66-2360. Price: $48.95 |
| 7 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 8 |
66-2870 |
CABLE-HOOD STOP Price: $27.51 |
| 9 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 9 |
596501502 |
Keepers This part replaces 501832601. Price: $9.99 |
| 10 |
93-9991-03 |
BRACKET-CLUTCH ANCHOR This part replaces 63-6700. Price: $15.31 |
| 11 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 11 |
587241501 |
CLUTCH.OGURA.4.4PD.GT1.5-EH13V Price: $199.99 |
| 12 |
48-9590 |
WASHER-LOCK Price: $0.25 |
| 12 |
532405097 |
PULLEY.ENGINE.TUFFTORQ Price: $49.99 |
| 13 |
63-7790 |
SCREW-CAP Price: $1.46 |
| 14 |
321-3 |
SCREW-HH Price: $0.28 |
| 15 |
3296-9 |
NUT-HEX Price: $0.25 |
| 15 |
581290101 |
TANK.ASSEMBL.2.5GAL.NON-EPA Price: $99.99 |
| 16 |
63-8230 |
ANGLE-CLUTCH ANCHOR Price: $8.43 |
| 17 |
66-2910 |
BUMPER Price: $1.94 |
| 18 |
3250-39 |
SCREW-PPH Price: $0.25 |
| 18 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532430220. Price: $22.99 |
| 19 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 20 |
532177328 |
CONTROL.THROTTLE.LH.COBRA.KNOB This part replaces 532182937. Price: $24.99 |
| 20 |
66-2900 |
BALLEND-FEMALE Price: $71.56 |
| 21 |
3220-2 |
NUT-JAM Price: $0.50 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 22 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 24 |
32151-83 |
RING-SNAP Price: $0.34 |
| 25 |
3212-5 |
SCREW-HH Price: $2.46 |
| 26 |
63-6290 |
PIN-PTO TENSION Price: $24.06 |
| 27 |
3-6624 |
DISCONTINUED Price: Call Us |
| 28 |
4-2390 |
WASHER-FLAT Price: $0.62 |
| 28 |
587044864 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532401135. Price: $17.99 |
| 29 |
66-3100 |
SCREW-HH Price: $2.58 |
| 30 |
67-1631 |
SPACER Price: $13.71 |
| 31 |
3230-4 |
BOLT-CARR Price: $0.47 |
| 32 |
63-6030 |
CLUTCH HUB (MACHINED)*O Price: $356.75 |
| 33 |
92-8799 |
BEARING-FLANGE This part replaces 251-335. Price: $126.15 |
| 34 |
63-6250 |
DISCONTINUED Price: Call Us |
| 35 |
32149-1 |
NUT-KEPS Price: $5.59 |
| 36 |
256-299 |
BUSHING-STRAIGHT Price: $10.86 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
67-1800 |
DISCONTINUED Price: Call Us |
| 38 |
3-4324 |
WASHER-FLAT Price: $1.22 |
| 39 |
32121-32 |
PIN-ROLL Price: $1.34 |
| 40 |
110-9697 |
ELECTRIC CLUTCH KIT This part replaces 63-6050. Price: $1,166.55 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 41 |
63-8150 |
KEY-SQUARE Price: $9.44 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 42 |
63-6690 |
DISCONTINUED Price: Call Us |
| 43 |
323-34 |
SCREW-HH Price: $0.54 |
| 44 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 45 |
33114-020 |
SCREW-HH This part replaces 66-3160. Price: $0.28 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532186054 |
GASKET.EXHAUST.KOHL.CV18-CV26 Price: $5.99 |
| 70 |
583954501 |
PIPE.EXHAUST.LH.CV18/20 Price: $19.99 |
| 71 |
583954801 |
PIPE.EXHAUST.RH.CV18/20 Price: $17.99 |
| 79 |
596134201 |
Screws This part replaces 532192334. Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $14.99 |
| 85 |
581332804 |
CLUTCH BOLT7/16-20X3.5 GR524HR Price: $6.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 92 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 96 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 97 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 102 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
